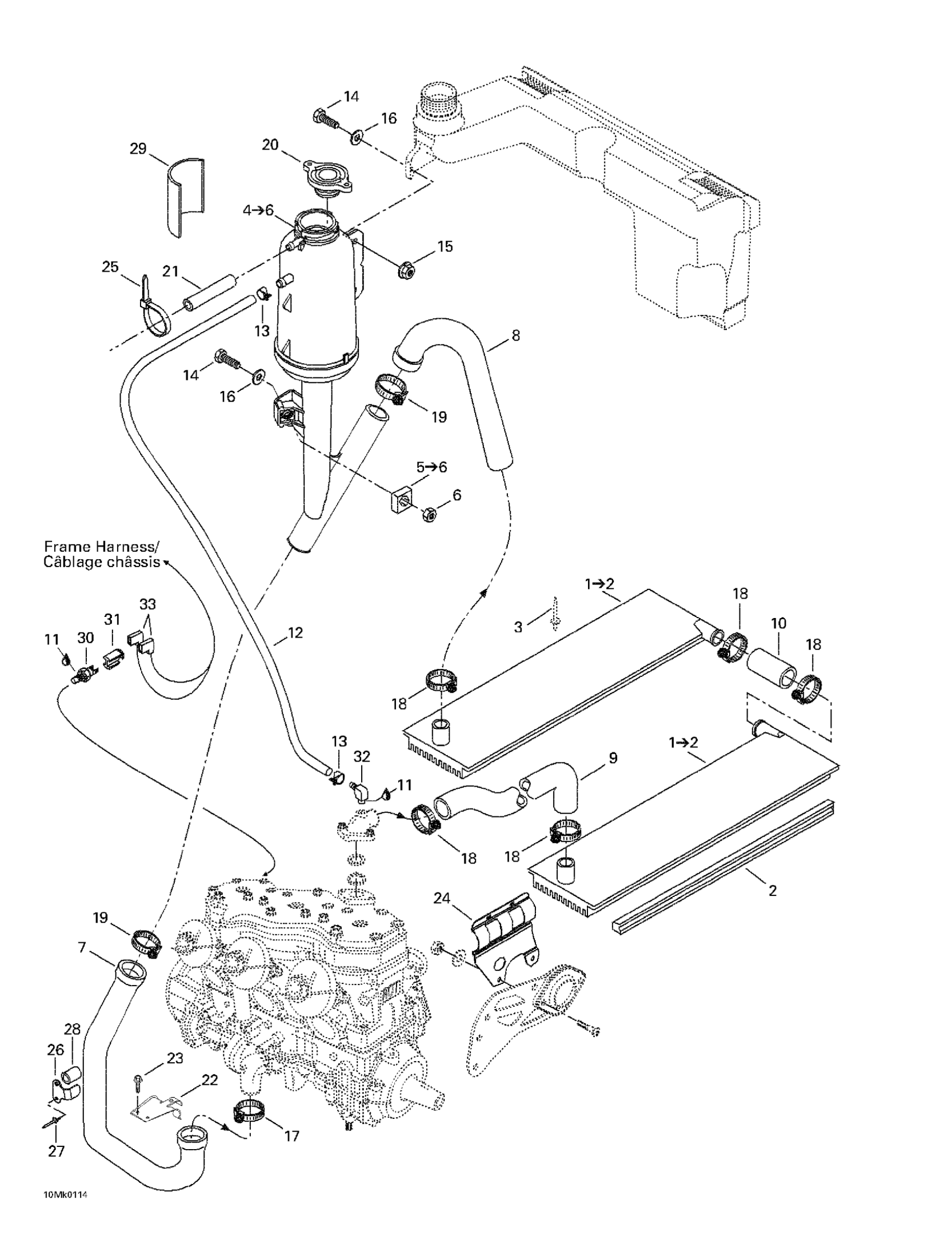

Ski-Doo Mach Z, 2001 Cooling System Diagram
#
Description
Price
1
RH Radiator | Includes 1 - 2.
518322348
Unavailable
LH Slide Bracket
518322350
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Coolant Tank Ass'y | Includes 4 - 6.
509000079
Unavailable
5
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
6
Hex. Nut M6
232061600
Unavailable
7
Engine Inlet Hose
509000026
Unavailable
8
Radiator Outlet Hose
415047000
Unavailable
9
RADIATOR INLET HOSE - Call your local BRP dealership
415047100
Unavailable
10
Radiator Connecting Hose
509000109
Unavailable
11
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
12
Hose 8 mm
509000093
Unavailable
13
Spring Clamp
414655700
Unavailable
14
Hex. Screw M6 X 25
207162544
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
Norma Gear Clamp
293650098
Unavailable
18
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
19
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
20
Pressure Cap
509000187
Unavailable
21
Polyurethane Hose 10000Mm Long
219704410
Unavailable
22
Hose Protector
509000037
Unavailable
24
HOSE PROTECTOR - Call your local BRP dealership
509000042
Unavailable
26
Bracket
509000101
Unavailable
28
Protector
509000113
Unavailable
29
Reflective Sheet
514052952
Unavailable
30
Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.
414728700
Unavailable
31
Connector Plug | Grand Touring 500.
515175297
Unavailable
32
Elbow Fitting 90°
293700020
Unavailable
