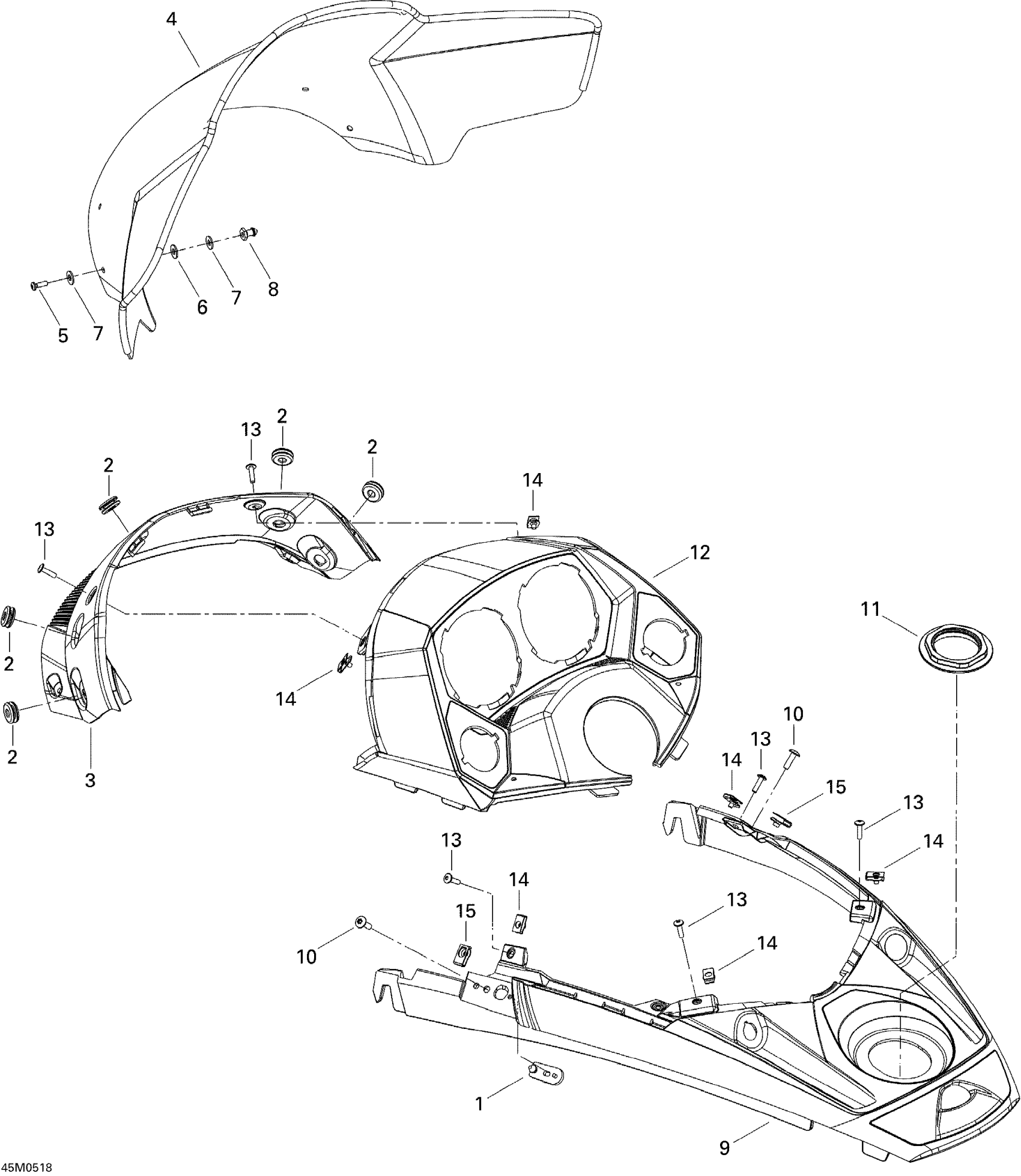

Ski-Doo Mach Z 1000 SDI, 2005 Windshield And Console Diagram

#

Description

Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Grommet

517302841

Unavailable

3

INDICATOR SUPPORT DOOR - Call your local BRP dealership

517303219

Unavailable

4

Low Windshield

517303140

Unavailable

5

Torx Screw K50 X 16

250000720

$1.39

6

Rubber Washer 5 mm

250200024

$1.77

7

Washer M5

250200025

Unavailable

8

Knob

517303439

$3.73

9

CENTER CONSOLE - Call your local BRP dealership

517303086

Unavailable

10

Torx Screw M6 X 20

250000722

Unavailable

11

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

12

INDICATOR SUPPORT - Call your local BRP dealership

517303357

Unavailable

13

Torx Screw M5 X 20

250000724

Unavailable

14

Panel Nut M5 X 0.8

250000958

Unavailable

15

Panel Nut M6 X 1.0

250100198

Unavailable
