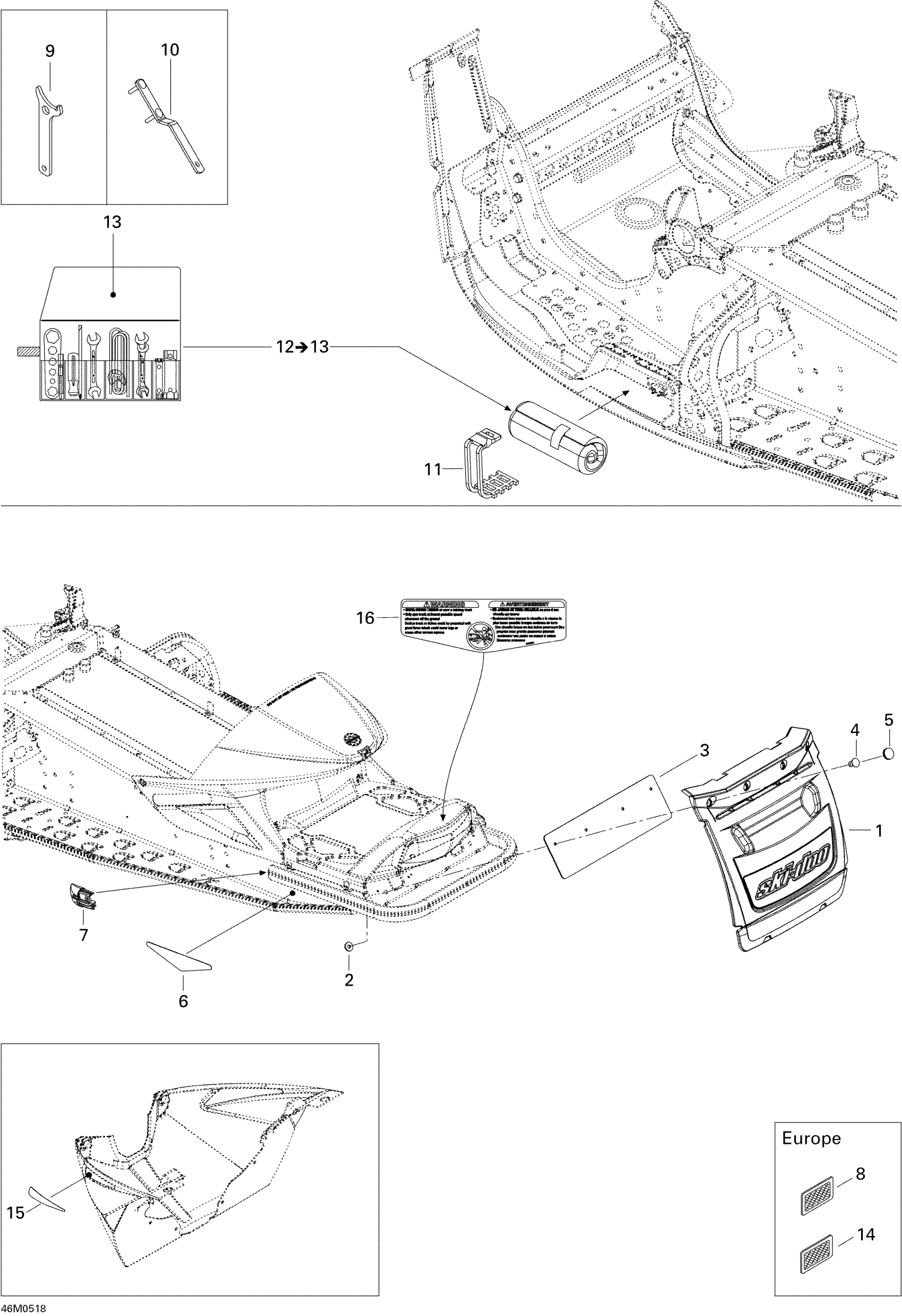

Ski-Doo Mach Z 1000 SDI, 2005 Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000502

Unavailable

2

Flat Washer

517225900

$0.16

3

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000423

Unavailable

4

Pop Rivet 3/16"

390906800

$0.85

5

Black, Cap

277000203

$8.58

6

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

6

Rear Reflector, Amber | Europe

520000311

Unavailable

7

LH CAP - Call your local BRP dealership

520000397

Unavailable

7

RH CAP - Call your local BRP dealership

520000398

Unavailable

8

Amber, Reflector

520000271

$18.63

9

Adjustment Wrench

529000035

$2.19

10

Adjustment Wrench | LT

520000126

$1.49

11

LATCH - Call your local BRP dealership

570069700

Unavailable

12

Tool Kit | Includes 12 to 13

529035596

$28.99

13

Tool Bag

520000047

Unavailable

14

White, Reflector

415037900

$18.63

15

LH FRONT REFLECTOR - Call your local BRP dealership

520000468

Unavailable

15

RH FRONT REFLECTOR - Call your local BRP dealership

520000469

Unavailable

16

Track Security Warning Label

516002832

Unavailable
