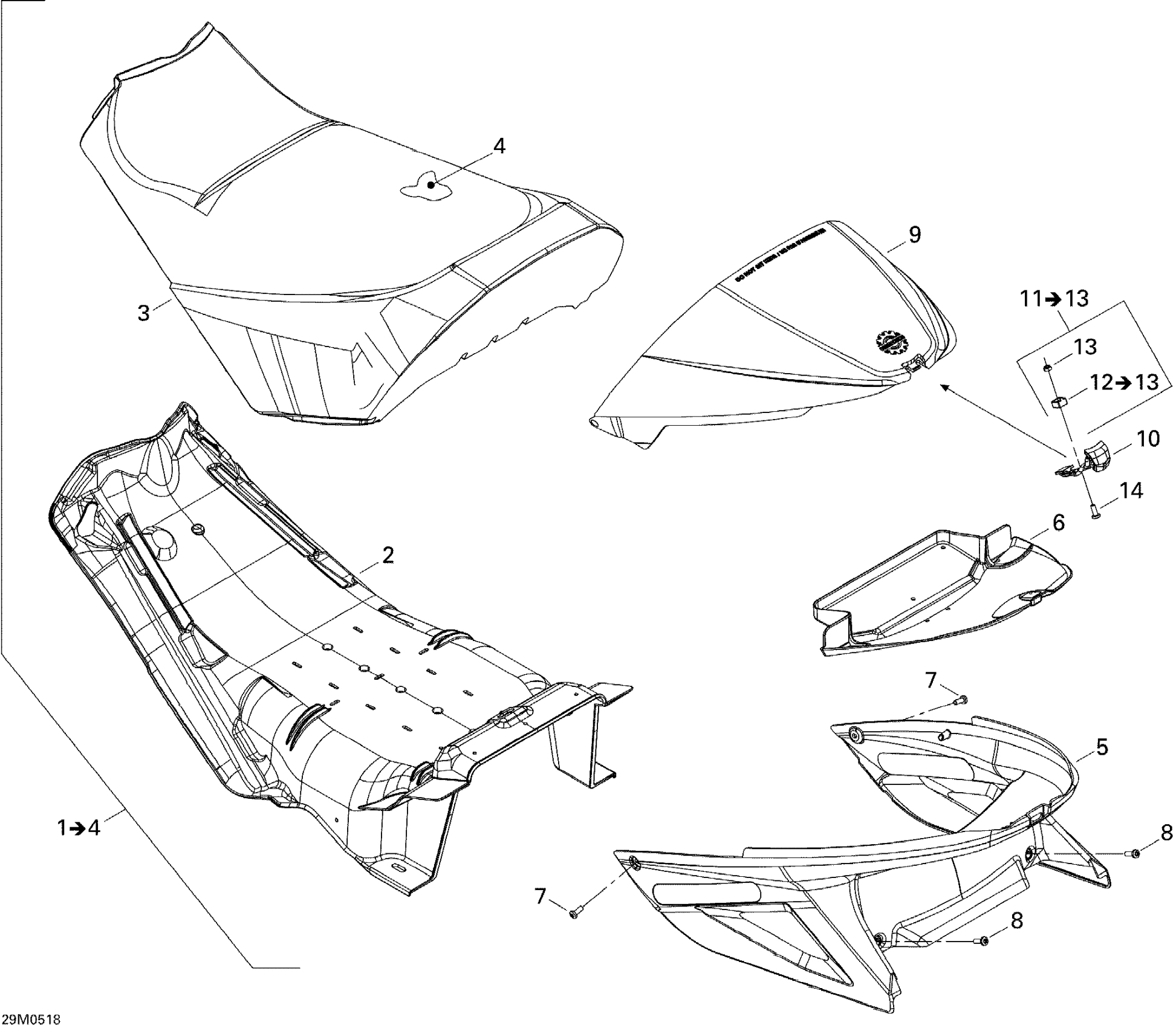

Ski-Doo Mach Z 1000 SDI, 2005 Seat Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SEAT BASE - Call your local BRP dealership

510004575

Unavailable

3

Seat Cover

510004475

Unavailable

4

SEAT FOAM - Call your local BRP dealership

510004275

Unavailable

5

Trunk

510004511

Unavailable

6

BOX LINER - Call your local BRP dealership

510004600

Unavailable

7

Torx Truss Screw M6 X 16

250000721

Unavailable

8

Torx Screw M6 X 20

250000722

Unavailable

9

Deep Black, Cover

510004311

Unavailable

10

Bracket

510003917

Unavailable

11

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

12

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

13

Hex. Nut M6

232061600

Unavailable

14

Torx Truss Screw M6 X 16

250000721

Unavailable
