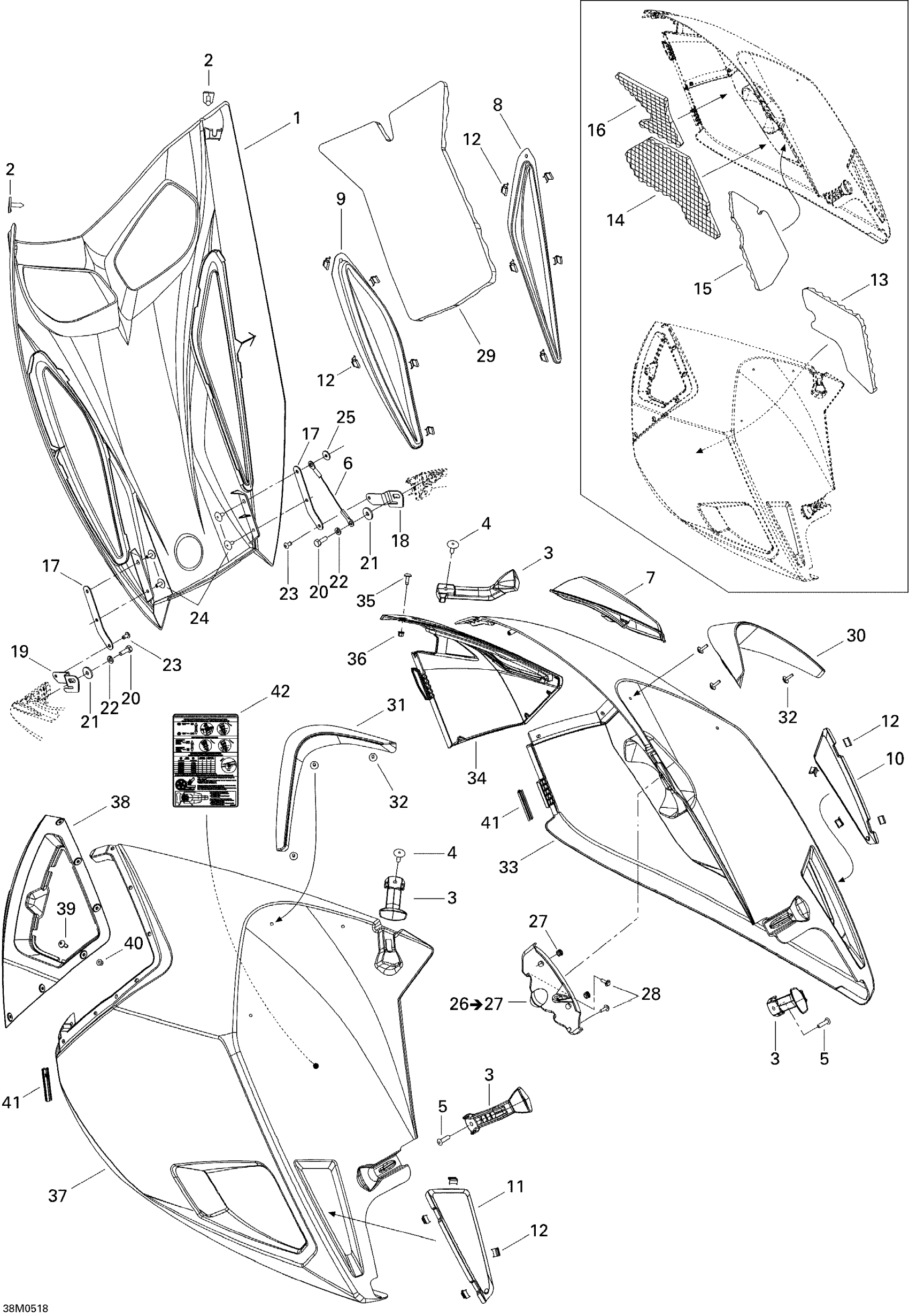

Ski-Doo Mach Z 1000 SDI, 2005 Hood Diagram

#

Description
Price

1

Hood, Black

517302788

Unavailable

2

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

3

Panel Latch

517302448

Unavailable

4

Pop Rivet 3/16”

293150087

Unavailable

5

Pop Rivet 3/16”

390410100

Unavailable

6

RETAINER CABLE - Call your local BRP dealership

517302673

Unavailable

7

Muffler Grille | X

517303229

Unavailable

8

RH HOOD GRILL - Call your local BRP dealership

517302936

Unavailable

9

LH HOOD GRILL - Call your local BRP dealership

517302937

Unavailable

10

RH PANEL GRILL - Call your local BRP dealership

517303227

Unavailable

11

LH PANEL GRILL - Call your local BRP dealership

517303228

Unavailable

12

CLIP - Call your local BRP dealership

517302789

Unavailable

13

LH PANEL FOAM - Call your local BRP dealership

517303392

Unavailable

14

RH PANEL FOAM - Call your local BRP dealership

517303393

Unavailable

15

RH PANEL FOAM - Call your local BRP dealership

517303394

Unavailable

16

RH PANEL FOAM - Call your local BRP dealership

517303454

Unavailable

17

UPPER HALF-HINGE - Call your local BRP dealership

517302544

Unavailable

18

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

19

LH Lower Half-Hinge

517302445

Unavailable

20

Hex. Screw M6 X 18

207161844

Unavailable

21

Flat Washer

224061121

$0.44

22

Lock Washer M6, Black

234161471

$0.52

23

Avex Rivet

390909200

Unavailable

24

Pop Rivet 3/16"

390406500

Unavailable

25

Flat Washer

517225900

$0.17

26

RH Console | Includes 24 to 25

517303107

Unavailable

27

Black, Cap

275500241

Unavailable

28

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

29

HOOD FOAM - Call your local BRP dealership

517303493

Unavailable

30

RH Air Deflector, Knees | X

517303444

Unavailable

31

LH Air Deflector, Knees | X

517303443

Unavailable

32

Screw M4 X 16

250000725

Unavailable

33

RH PANEL ASS'Y - Call your local BRP dealership | X, Includes 33 to 36

517303375

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

RH Pannel Hub

517303106

Unavailable

35

Forming Screw M5 x 16

250000676

$0.83

36

HEX NUT NYLON 10/32 - Call your local BRP dealership

250100058

Unavailable

37

LH Panel Ass'y | X, Includes 37 to 40

517303376

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

LH PANNEL HUB - Call your local BRP dealership

517303105

Unavailable

39

Forming Screw M5 x 16

250000676

$0.83

40

HEX NUT NYLON 10/32 - Call your local BRP dealership

250100058

Unavailable

41

Hinge Lock

517302823

Unavailable

42

DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership

516002616

Unavailable
