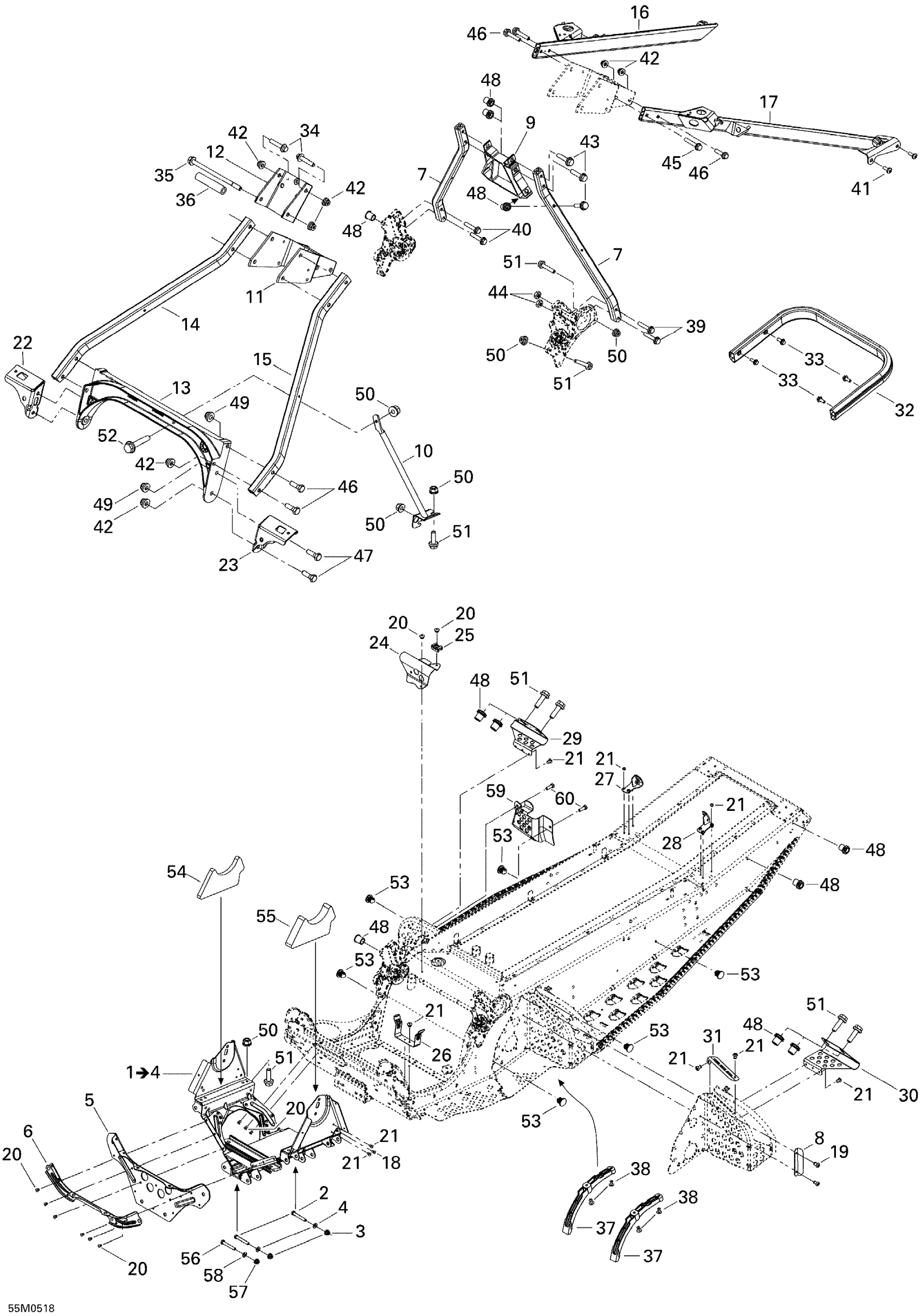

Ski-Doo Mach Z 1000 SDI, 2005 Frame and Components Diagram

#

Description
Price

1

Front Member Ass'y | Includes 1 to 4

518323541

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234081410

Unavailable

5

Front Plate

518324726

Unavailable

6

Front Plate Reinforcement

518324727

Unavailable

7

HANDLE SUPPORT - Call your local BRP dealership

518324228

Unavailable

8

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

9

HANDLE SUPPORT REINFORCEMENT - Call your local BRP dealership

518323811

Unavailable

10

Brace, Black

518324080

Unavailable

11

ATTACHMENT BRACKET - Call your local BRP dealership

518323676

Unavailable

12

STEERING COLUMN SUPPORT - Call your local BRP dealership

518324046

Unavailable

13

Upper Cross Member

518324265

Unavailable

14

RH FRONT BRACE - Call your local BRP dealership

518324285

Unavailable

15

LH FRONT BRACE - Call your local BRP dealership

518324286

Unavailable

16

RH Member

518323352

Unavailable

17

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Pop Rivet 3/16"

390402200

$0.26

20

Avex Rivet

390909100

$0.29

21

Avex Rivet

390909200

Unavailable

22

RH SHOCK BRACKET - Call your local BRP dealership

518324148

Unavailable

23

LH Shock Bracket

518324150

Unavailable

24

HOSE SUPPORT - Call your local BRP dealership

518323584

Unavailable

25

Tie Rap Mount (screwable)

515176795

$5.11

26

Belt Guard Bracket

518202100

$16.12

27

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

28

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

29

RH TOE HOLD - Call your local BRP dealership

518323948

Unavailable

30

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

31

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

32

Rear Bumper

518324297

Unavailable

33

Hex. Flange Screw M8 X 20

207682044

Unavailable

34

Hex. Flange Screw M8 X 40

207684044

Unavailable

35

HEX. FLANGED SCREW M8 X 140 - Call your local BRP dealership

230684044

Unavailable

36

SPACER - Call your local BRP dealership

518324048

Unavailable

37

FRONT RADIATOR PROTECTOR - Call your local BRP dealership

518324287

Unavailable

38

Pop Rivet 3/16"

390906800

Unavailable

39

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

40

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

41

Pan Head Torx Screw M8 X 12

250000887

$1.56

42

Hex. Flange Elastic Nut M8

233281414

Unavailable

43

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

44

Elastic Stop Nut M6

232561414

Unavailable

45

Hex. Flange Screw M8 X 50

207685044

Unavailable

46

Hex. Flange Screw M8 X 35

207683544

$1.39

47

Hex. Screw M8 X 25

207182544

Unavailable

48

Insert

293450275

Unavailable

49

Hex. Elastic Stop Nut M8

232581414

Unavailable

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

51

Hex. Flange Screw M6 X 20

207662044

Unavailable

52

Hex. Flange Screw M6 X 35

207663544

$0.74

53

Panel Fastener

518321954

Unavailable

54

RH FRONT FOAM - Call your local BRP dealership

518324372

Unavailable

55

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

56

Hex. Screw M8 X 55

207085544

$1.62

57

Hex. Flange Elastic Nut M8

233281414

Unavailable

58

Flat Washer 8 mm

234081410

Unavailable

59

FOOTREST EXTENSION - Call your local BRP dealership

518324701

Unavailable

60

Hex. Flange Screw M6 X 16

207661644

Unavailable
