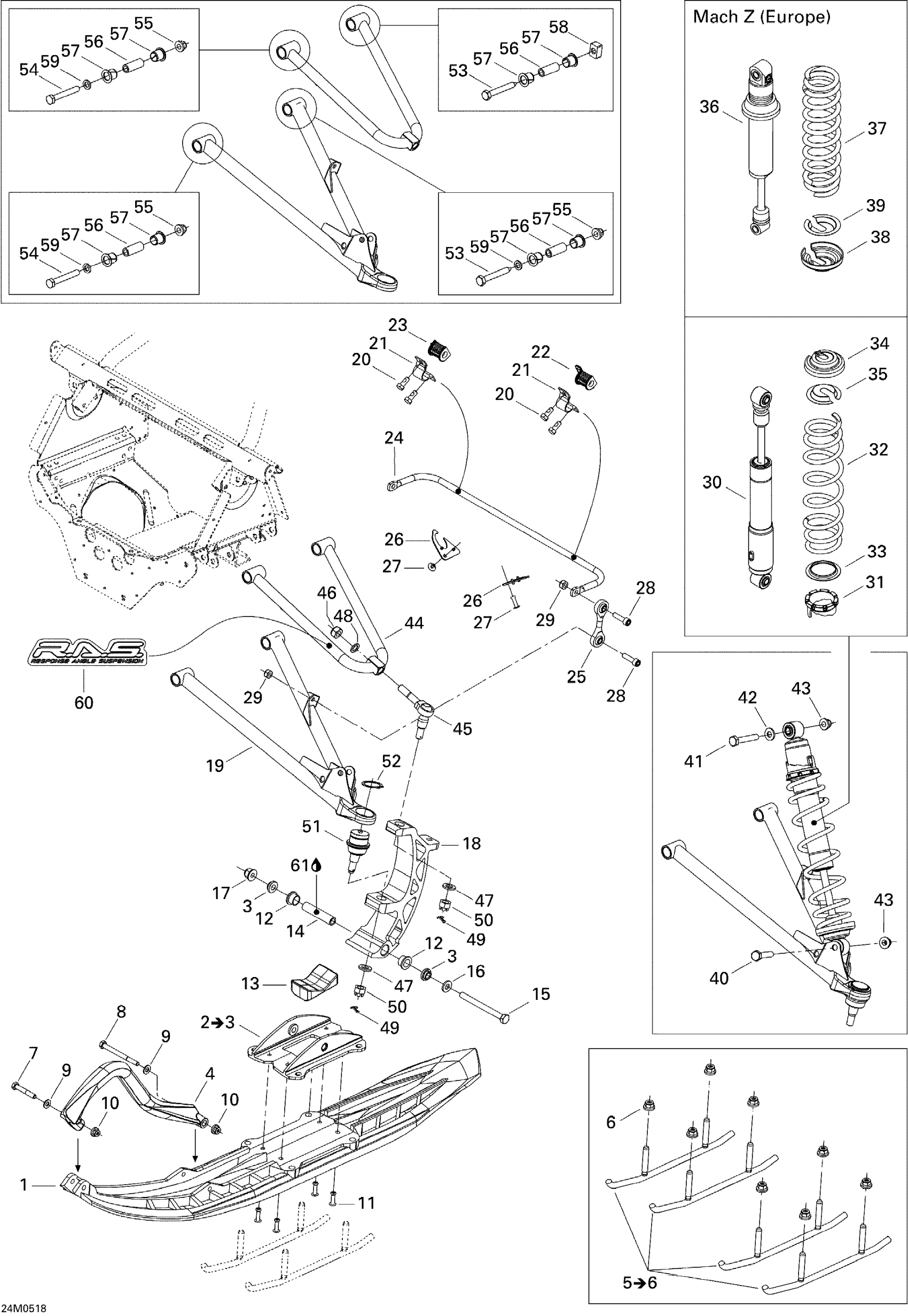

Ski-Doo Mach Z 1000 SDI, 2005 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

Unavailable

8

Hex. Screw M8 X 90

207089044

$2.82

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

Unavailable

13

Ski Stopper

505070671

Unavailable

14

BUSHING - Call your local BRP dealership

505071271

Unavailable

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

Unavailable

17

Flange Nut M10

732610084

Unavailable

18

SKI LEG - Call your local BRP dealership

505071232

Unavailable

19

RH Lower Arm

860510500

Unavailable

19

LH Lower Arm

860510400

Unavailable

20

Hex. Screw With Nylon

250000118

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

23

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

24

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

25

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

26

PLUG - Call your local BRP dealership

505071253

Unavailable

27

Pop Rivet 3/16"

293150103

Unavailable

28

Socket Head Screw M8 X 30

205083044

Unavailable

29

Hex. Elastic Stop Nut M8

232581414

Unavailable

30

Front Shock

505071446

Unavailable

31

Adjustment Cam

505073625

Unavailable

32

SPRING - Call your local BRP dealership

505071447

Unavailable

33

Spring Guide

503191872

Unavailable

34

Spring Stopper

706200881

$10.30

35

Cap

706200785

Unavailable

36

Front Shock | Europe

505071450

Unavailable

37

SPRING - Call your local BRP dealership

505071683

Unavailable

38

Spring Stopper

706200881

$10.30

39

Cap

706200785

Unavailable

40

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

41

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

42

Washer

503189564

Unavailable

43

Hex. Flange Elastic Nut M10

233201414

$1.26

44

UPPER ARM - Call your local BRP dealership

505071727

Unavailable

45

Upper Ball Joint

505072257

$16.89

46

Hex. Flange Elastic Nut M12

250000047

Unavailable

47

Flat Washer 12 mm

234021410

$0.68

48

Washer

503189276

Unavailable

49

Cotter Pin

211400017

Unavailable

50

Hex. Castellated Nut M12

232221414

Unavailable

51

Ball Joint

505071658

Unavailable

52

Circlip

293370035

$2.55

53

Hex. Screw M10 X 75

250001063

Unavailable

54

Hex. Screw M10 X 75

250001063

Unavailable

55

Hex. Flange Elastic Nut M10

250100165

Unavailable

56

Aluminium Bushing

505070960

Unavailable

57

Arm Bushing

505070566

Unavailable

58

RECTANGULAR NUT - Call your local BRP dealership

505071695

Unavailable

59

Washer

503189564

Unavailable

60

R.a.s. Suspension Decal

516002747

Unavailable

61

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
