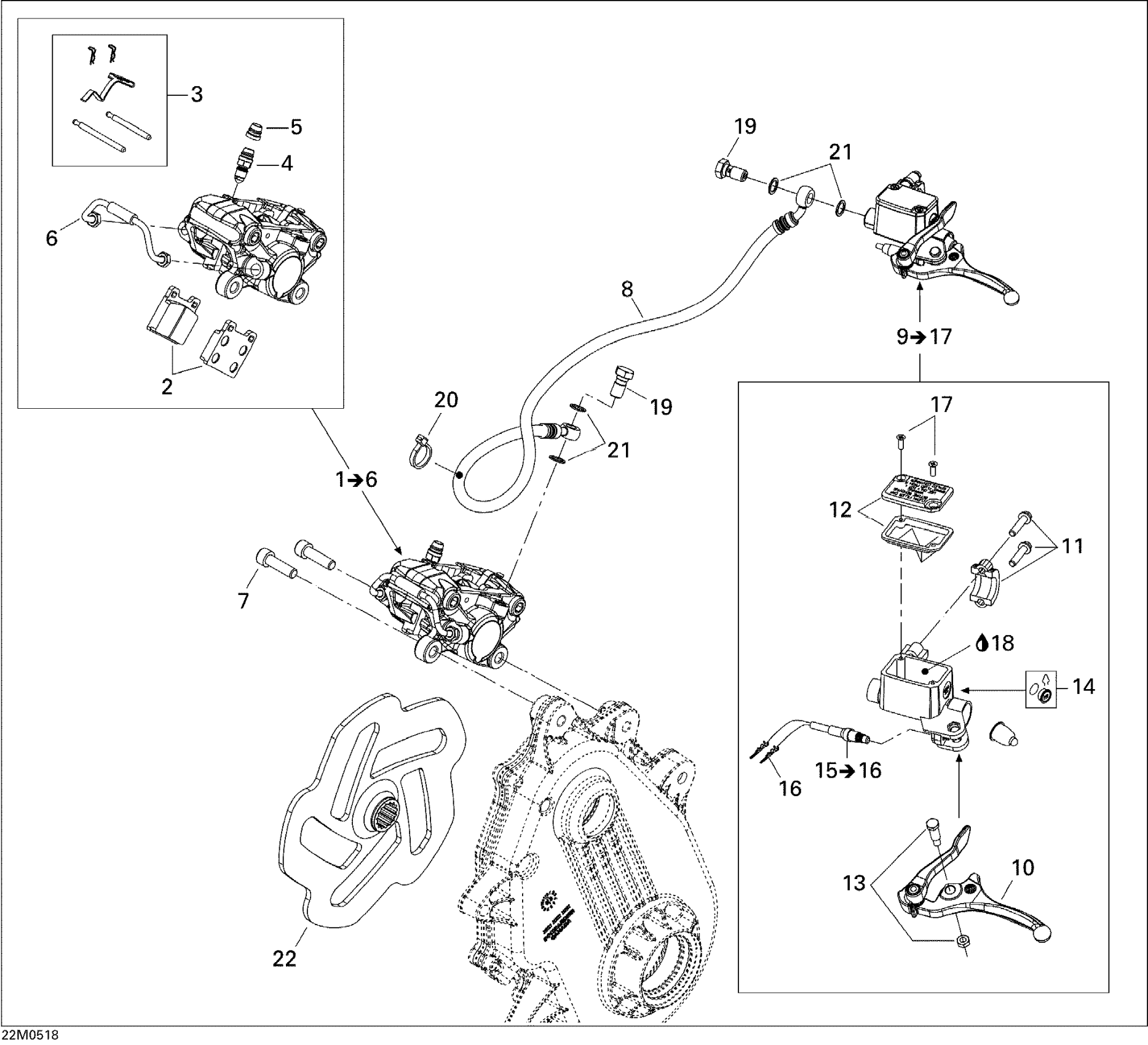

Ski-Doo Mach Z 1000 SDI, 2005 Hydraulic Brake Diagram
#
Description
Price
1
BRAKE CALIPER - Call your local BRP dealership | Adrenaline / Includes 1 to 6
507032417
Unavailable
2
Brake Pad Kit
415084600
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
415128865
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
8
HOSE - Call your local BRP dealership
507032384
Unavailable
9
Master Cylinder | Includes 9 to 17
507032407
Unavailable
10
LEVER - Call your local BRP dealership
415129216
Unavailable
12
Cap
415029900
Unavailable
13
Pin Ass'y
415030000
Unavailable
14
WINDOW - Call your local BRP dealership
414990600
Unavailable
15
Microswitch
507032366
Unavailable
17
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
18
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
18
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
20
Tie Wrap 142 mm
293750002
Unavailable
21
Washer
414920600
Unavailable
22
BRAKE DISK - Call your local BRP dealership
507032400
Unavailable
