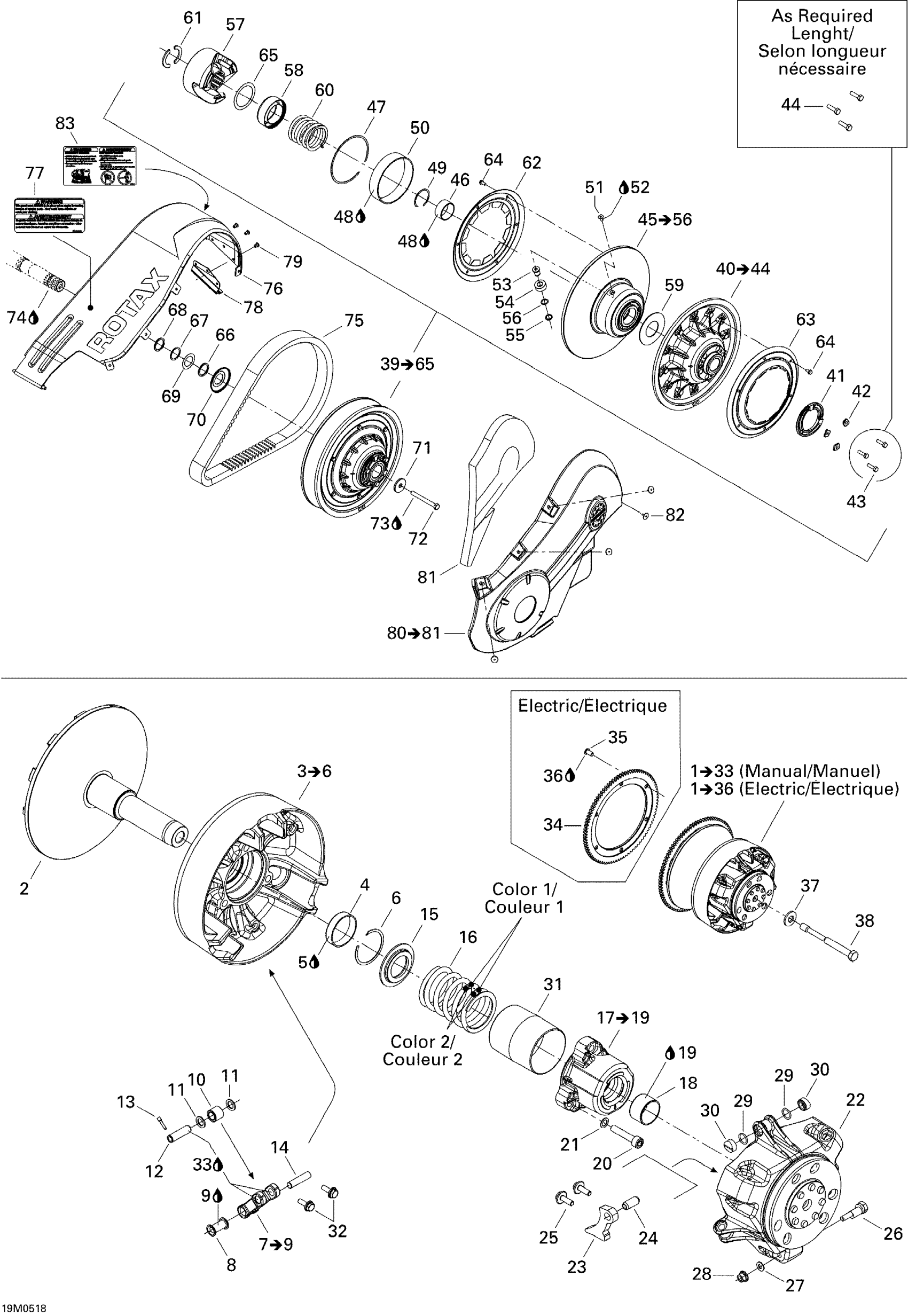

Ski-Doo Mach Z 1000 SDI, 2005 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222966

Unavailable

3

Sliding Flange Ass'y

417223093

Unavailable

4

Bushing

417222758

$20.74

5

Loctite 609, 10 ml

413703100

$24.58

6

Circlip

293370037

$3.02

7

LEVER ASS'Y - Call your local BRP dealership | Includes 7 to 9

417222812

Unavailable

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$24.58

10

Roller

417222947

$19.97

11

Stopper Washer

417004302

$15.99

12

Pin

417004309

Unavailable

13

Pin Screw

417222813

Unavailable

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Spring, Green/violet | 800R Power TEK

414762800

$14.75

17

Spring Cover Ass'y | Includes 14 to 15

417222759

$50.74

18

Bushing

417009204

$16.12

19

Loctite 609, 10 ml

413703100

$24.58

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

GOVERNOR CUP - Call your local BRP dealership

417222634

Unavailable

23

RAMP 434 - Call your local BRP dealership

417222815

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.86

28

Hex. Flange Nut M6

233061414

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Guard

417009205

$16.89

32

Serrated Hex. Flange Bolt M6

250000416

$4.12

33

Loctite 609, 10 ml

413703100

$24.58

34

Ring Gear

417222951

Unavailable

35

Torx Screw M8 X 16

250000240

Unavailable

36

Loctite 271, 10 ml

293800005

Unavailable

37

Spring Washer 14 mm

250200006

Unavailable

38

DRIVE PULLEY BOLT - Call your local BRP dealership

417300296

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

41

Adjustment Ring

415005800

Unavailable

42

Adjustment Shim

415005900

Unavailable

43

Hex. Screw M6 X 25

207162544

Unavailable

44

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

45

Sliding Flange Ass'y | Includes 45 to 56

417126930

Unavailable

46

BUSHING - Call your local BRP dealership

417126901

Unavailable

47

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

48

Loctite, Black Max, 3 ml

413408300

$24.58

49

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

50

BUSHING - Call your local BRP dealership

417126902

Unavailable

51

SOCKET HEAD SCREW M6 X 12 - Call your local BRP dealership

205361296

Unavailable

52

Loctite 271, 10 ml

293800005

Unavailable

53

STUD - Call your local BRP dealership

417126929

Unavailable

54

Roller

417126892

Unavailable

55

V-CIRCLIP - Call your local BRP dealership

417126823

Unavailable

56

WASHER - Call your local BRP dealership

417126797

Unavailable

57

Cam Ass'y

417126933

Unavailable

58

GUARD - Call your local BRP dealership

417126381

Unavailable

59

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

60

Release Spring, Purple | North America

414978300

$33.05

61

HALF KEY - Call your local BRP dealership

417126734

Unavailable

62

COVER - Call your local BRP dealership

417126698

Unavailable

63

AERODYNAMIC COVER - Call your local BRP dealership

504151831

Unavailable

64

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

65

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

66

Spacer

417300265

$2.12

67

Spacer

417300265

$2.12

68

Spacer

417300252

$5.17

69

Shim

504112000

$6.05

70

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

71

Strength Washer

517302322

$11.09

72

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

73

Loctite 243, 10 ml

293800060

$20.77

74

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

75

Drive Belt

417300189

Unavailable

76

Belt Guard

417300256

Unavailable

77

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

78

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

79

Avex Rivet

390909200

Unavailable

80

Side Protector Ass'y | Includes 49 to 50

417300248

Unavailable

81

Foam

417300246

Unavailable

82

Pop Rivet 3/16"

293150103

Unavailable

83

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable
