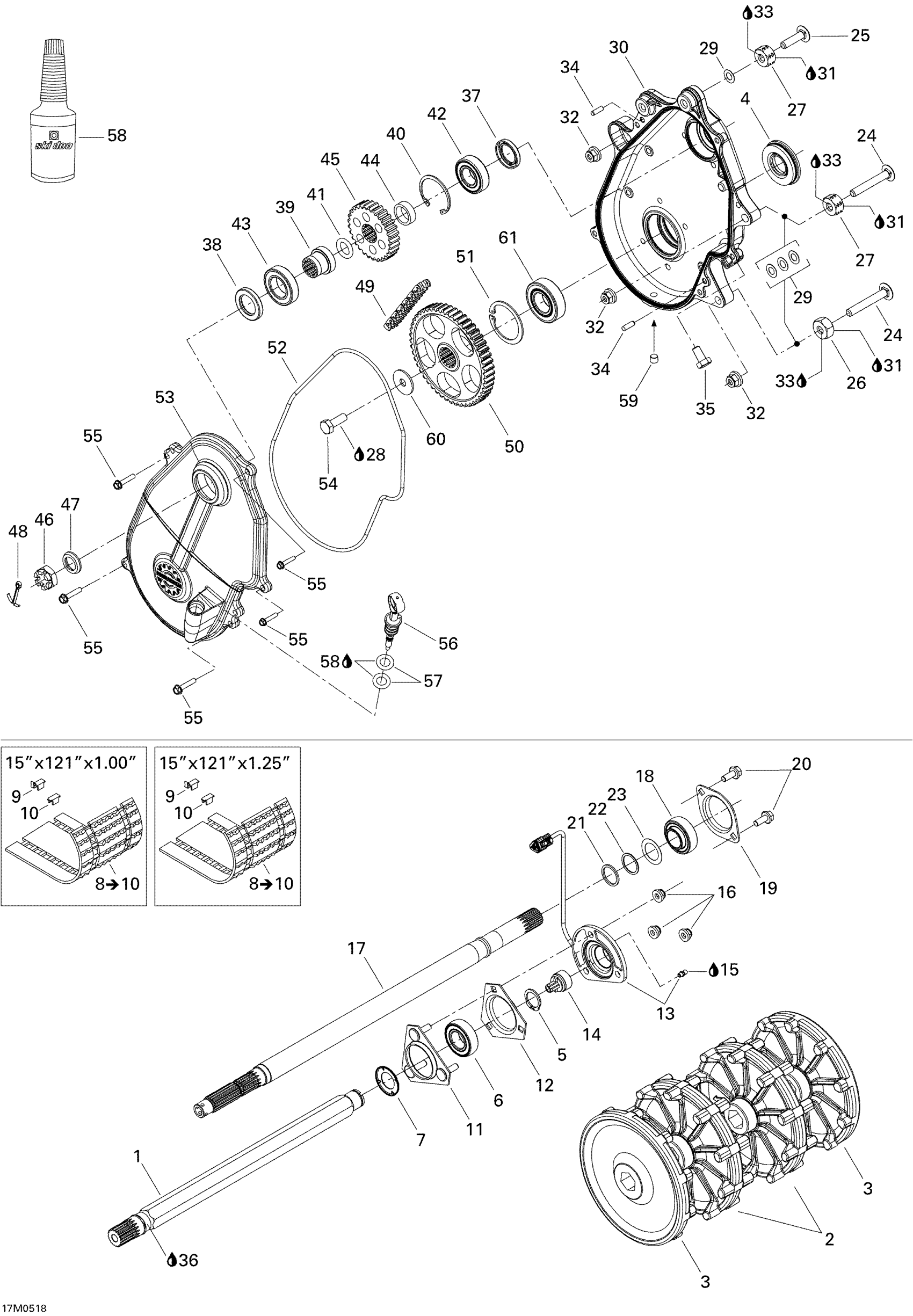

Ski-Doo Mach Z 1000 SDI, 2005 Drive System Diagram
#
1
DRIVE AXLE - Call your local BRP dealership
504152424
Unavailable
2
SPROCKET, 10 TEETH - Call your local BRP dealership
504152198
Unavailable
3
HALF SPROCKET, 10 TEETH - Call your local BRP dealership
504152199
Unavailable
4
Oil Seal Ass'y
504151918
Unavailable
5
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
6
Ball Bearing
293350060
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
8
Track 15" X 121" X 1" Ass'y
504152446
Unavailable
8
$760.00
10
Cleat
504152651
Unavailable
11
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
12
FLANGE - Call your local BRP dealership
501025000
Unavailable
13
SENSOR - Call your local BRP dealership
504152409
Unavailable
14
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
15
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
Counter Shaft
504152432
Unavailable
18
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
19
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
24
CARRIAGE BOLT M10 - Call your local BRP dealership
250000164
Unavailable
25
CARRIAGE BOLT M10 - Call your local BRP dealership
250000165
Unavailable
26
Spacer
504083800
Unavailable
27
SPACER - Call your local BRP dealership
504152524
Unavailable
28
Loctite 271, 10 ml
293800005
Unavailable
29
WASHER - Call your local BRP dealership
504073700
Unavailable
30
CHAIN CASE - Call your local BRP dealership
504152308
Unavailable
31
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
34
CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4
732620001
Unavailable
35
Hex. Screw M10 X 20, Scotch Grip
207302044
Unavailable
36
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
37
OIL SEAL - Call your local BRP dealership
504152544
Unavailable
38
OIL SEAL - Call your local BRP dealership
504152545
Unavailable
39
SPACER - Call your local BRP dealership
504152400
Unavailable
40
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
41
O-RING - Call your local BRP dealership
293300109
Unavailable
42
Ball Bearing
293350115
Unavailable
43
Ball Bearing
504152418
Unavailable
44
SHIM - Call your local BRP dealership
504152398
Unavailable
45
SPROCKET, 29 TEETH - Call your local BRP dealership
504152442
Unavailable
46
HEX. CASTLE NUT 20 X 1.5 - Call your local BRP dealership
250100079
Unavailable
47
Cap
504152523
Unavailable
48
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
49
CHAIN, 82 LINKS - Call your local BRP dealership
504152415
Unavailable
50
SPROCKET, 49 TEETH - Call your local BRP dealership
504152412
Unavailable
51
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
52
O-RING - Call your local BRP dealership
504152299
Unavailable
53
COVER - Call your local BRP dealership
504152416
Unavailable
54
Hex. Screw M10 X 30
207103044
Unavailable
56
FILLER CAP ASSY. - Call your local BRP dealership
504152322
Unavailable
57
O-RING - Call your local BRP dealership
414969400
Unavailable
58
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
59
Plug 1/8”-27
504151921
Unavailable
60
Washer 10 mm
506150000
Unavailable
61
Ball Bearing
504152005
Unavailable
