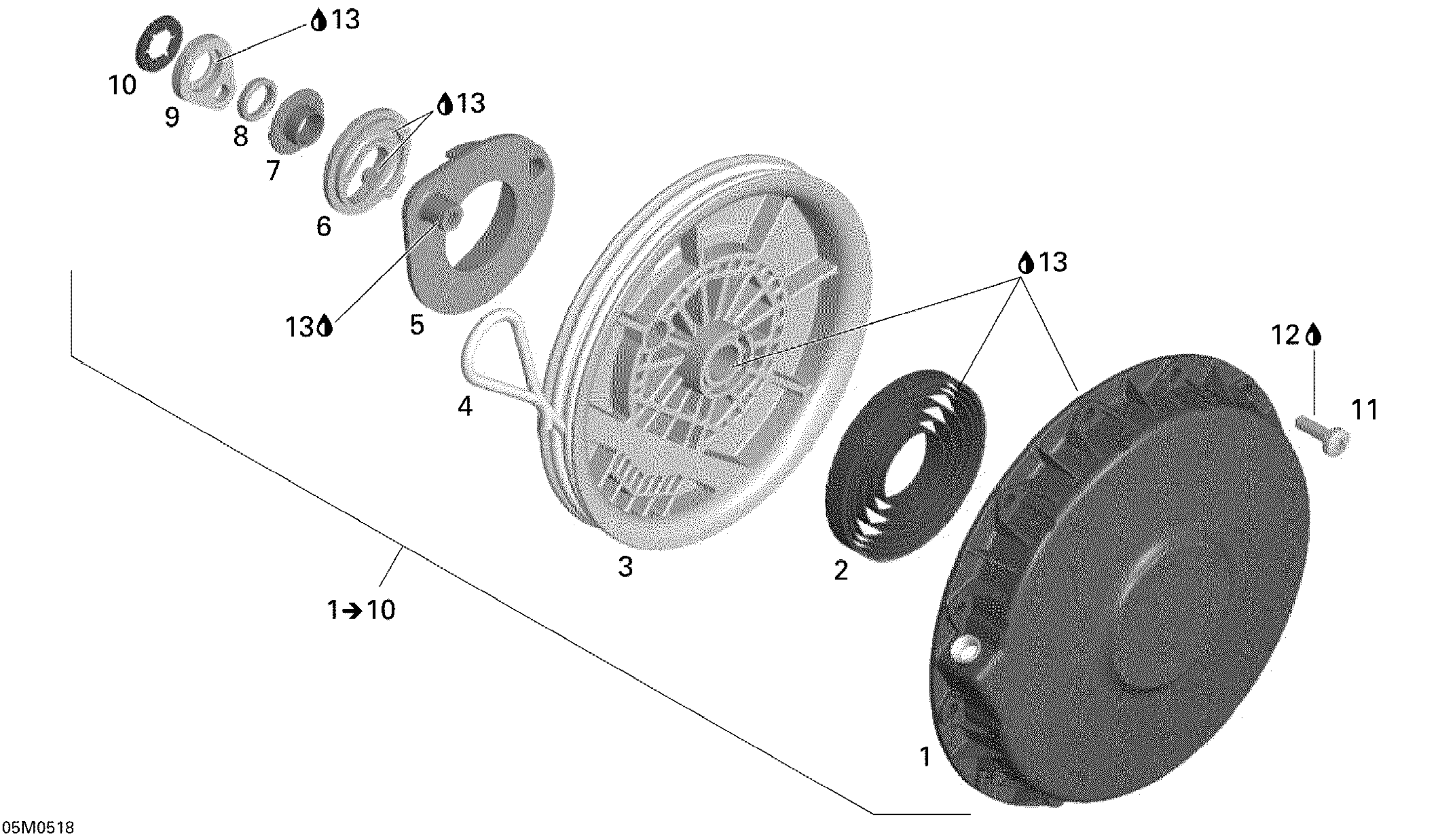

Ski-Doo Mach Z 1000 SDI, 2005 Rewind Starter Diagram
#
Description
Price
1
REWING STARTER ASS'Y - Call your local BRP dealership | Includes 1 to 10
420889767
Unavailable
4
Was 412500100 Rope-Starter
219704403
Unavailable
5
Pawl
420852610
Unavailable
6
PAWL LOCK - Call your local BRP dealership
420852304
Unavailable
7
Stage Sleeve
420847926
Unavailable
9
Lock Ring
420852520
Unavailable
10
Locking Element
420845560
Unavailable
11
Torx Flange Screw M6 X 20
420441386
Unavailable
13
Molykote PG 54, 10 g
420899763
Unavailable
