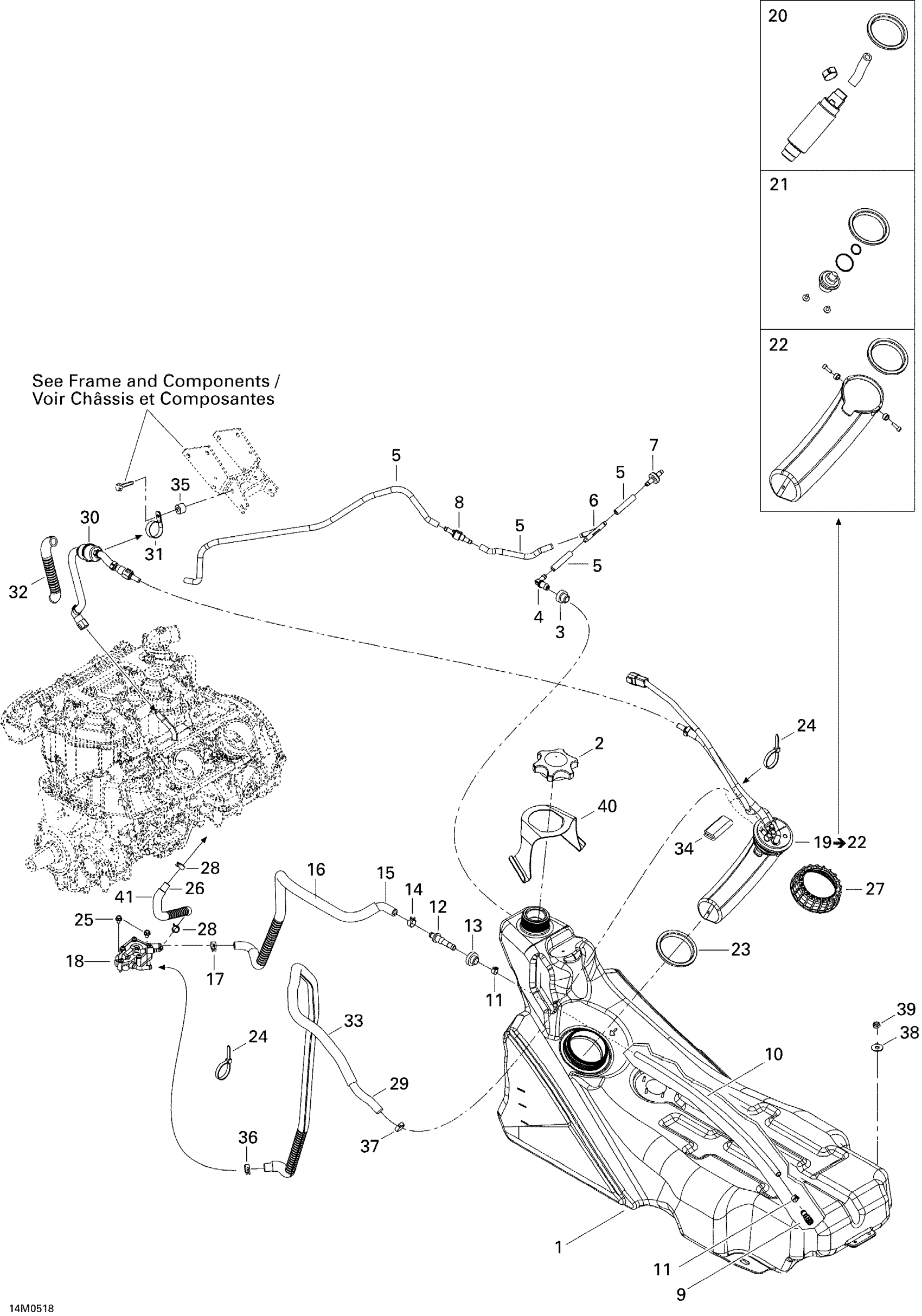

Ski-Doo Mach Z 1000 SDI, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank | GSX LTD

513033119

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$22.36

3

Grommet

513032908

$8.48

4

Male Connector

414580700

$3.88

5

Polyurethane Hose 10000Mm Long

219704410

$52.96

6

Y-Fitting

293710059

$9.40

7

Check Valve

275500398

$9.84

8

Check Valve

275500505

$29.07

9

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

10

Hose

513033070

$12.24

11

Norma Spring Clamp

513033010

$8.42

12

Male Connector

414872700

Unavailable

13

Grommet | Europe

707800347

$8.70

14

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

15

Formed Hose

513033121

Unavailable

16

Tubing 16 Mm 1000Mm Long

219704408

$7.15

17

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

18

Fuel Pump

403901816

Unavailable

19

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

Unavailable

20

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

21

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

22

Réservoir Kit

861302800

Unavailable

23

SEAL - Call your local BRP dealership

513033039

Unavailable

24

Tie-Rap 180 mm

414115200

$0.10

25

Hex. Forming Screw M6 X 10

210261050

$1.63

26

Hose

219704549

$46.24

27

Nut, Fuel Pump Module

513033040

$26.84

28

Spring Clamp

414415200

$0.81

29

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

30

Fuel Filter Ass'y | Includes 44 to 47

513033133

$84.30

31

Open Clamp

513033047

$4.73

32

Tubing 16 Mm 1000Mm Long

219704408

$7.15

33

Tubing 16 Mm 1000Mm Long

219704408

$7.15

34

Was 271000110 Protection Trim

219704353

$14.58

35

SPACER - Call your local BRP dealership

503189448

Unavailable

36

Universal Spring Clamp

513033029

$4.96

37

Crimp Clamp, 15.3-706R

293650047

$3.03

38

Flat Washer 8 mm

234082410

$1.27

39

Hex. Elastic Stop Nut M8

232581414

$0.54

40

SUPPORT - Call your local BRP dealership

513033066

Unavailable

41

Tubing 10 MM 1000MM Long

219704407

$2.52
