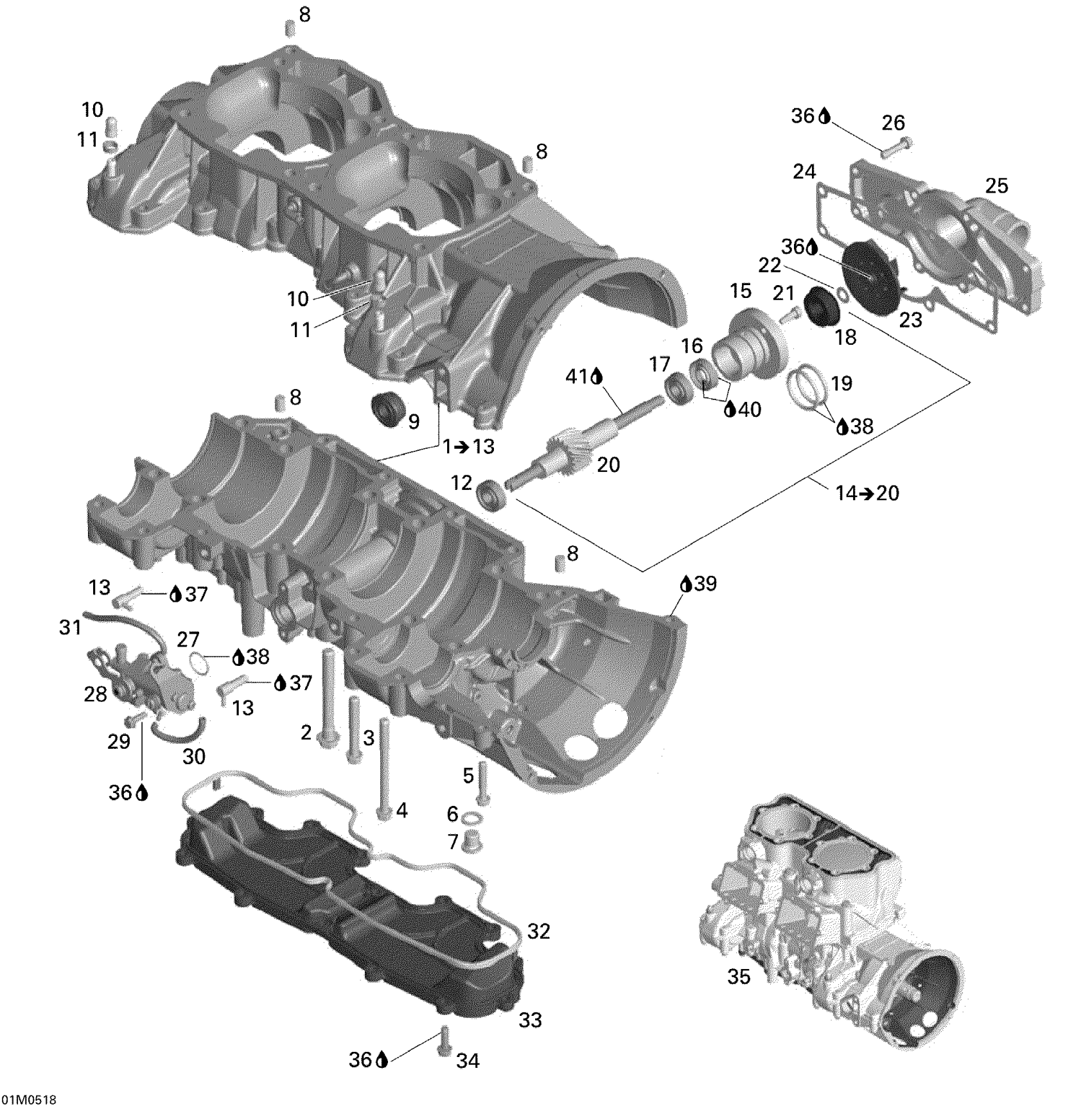

Ski-Doo Mach Z 1000 SDI, 2005 Crankcase Diagram
#
Description
Price
1
Crankcase Ass'y | Includes 1 to 13
420889221
Unavailable
2
Torx Flange Screw M10 X 85
420440442
Unavailable
3
Torx Flange Screw M10 X 55
420440392
Unavailable
4
Torx Flange Screw M8 X 90
420440412
Unavailable
5
Torx Flange Screw M6 X 35
420440274
Unavailable
8
Center Pin 8 X 12
420632010
Unavailable
11
Clamp
420853653
Unavailable
12
Ball Bearing
420232100
Unavailable
14
WATER PUMP/OIL PUMP ASS'Y - Call your local BRP dealership | Includes 14 to 19
420837671
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
17
Ball Bearing
420232100
Unavailable
18
Rotary Seal
420650371
Unavailable
19
O-Ring
420950890
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Allen Screw M5 x 16
420840514
Unavailable
24
GASKET - Call your local BRP dealership
420630620
Unavailable
25
WATER PUMP HOUSING - Call your local BRP dealership
420922920
Unavailable
26
Torx Flange Screw M6 X 25
420440234
Unavailable
28
OIL PUMP ASS'Y - Call your local BRP dealership
420888772
Unavailable
30
Oil Hose 1500Mm Long
219704404
Unavailable
31
Oil Hose 1500Mm Long
219704404
Unavailable
32
GASKET - Call your local BRP dealership
420631190
Unavailable
33
Waterduct Cover, Heat Exchanger
420812342
Unavailable
34
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
35
Short Block 995 SDI
420099501
Unavailable
37
Sealant Loctite 648
219703000
Unavailable
40
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
41
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
