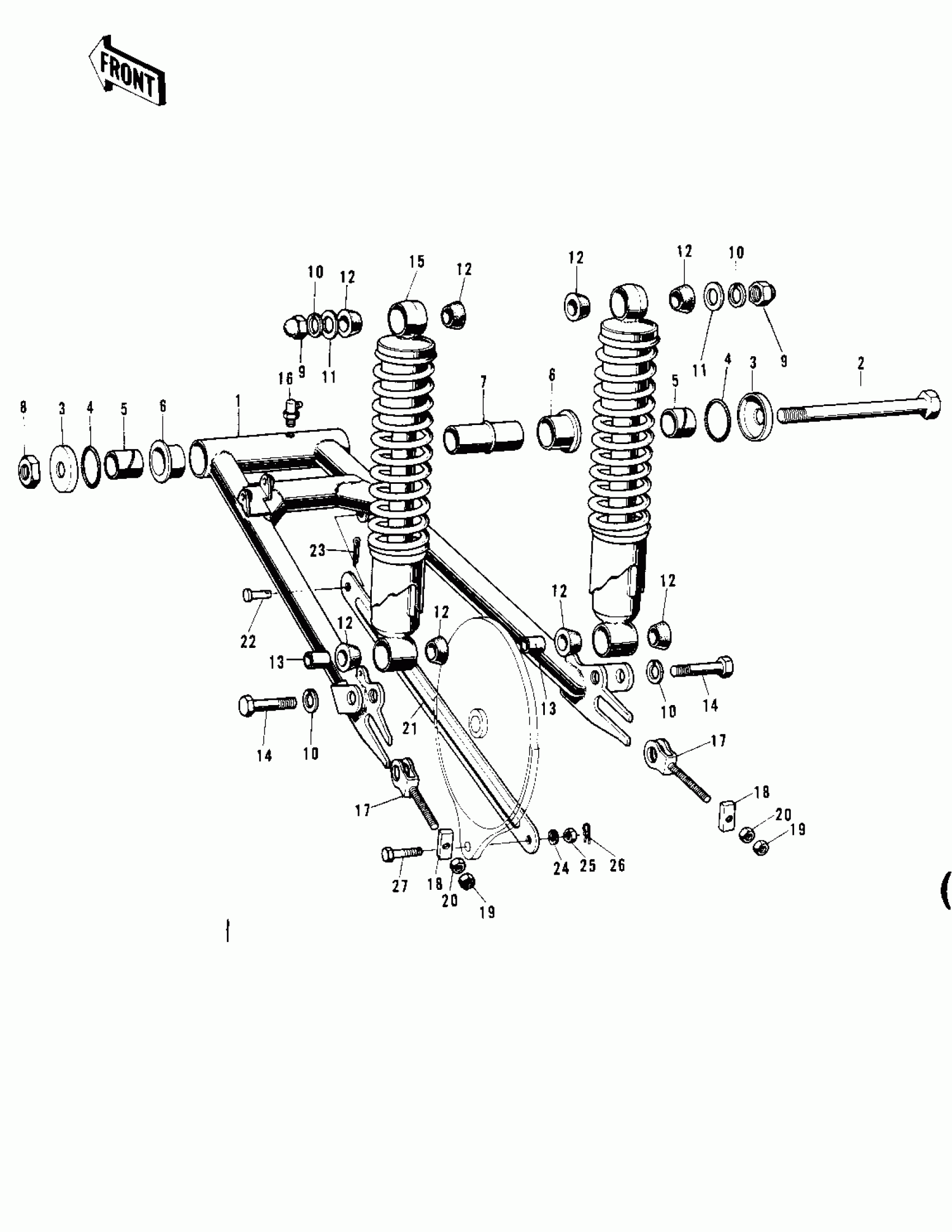

Kawasaki Mach IV SWING ARM/SHOCK ABSORBERS (H2/A) Diagram

#

Description
Price

1

ARM-SWING

33001-049

$176.76

2

SHAFT-SWING ARM PIVOT

33032-038

Unavailable

3

CAP,SWING ARM

33035-007

Unavailable

4

"0" RING,30MM

671B2530

$4.01

5

SLEEVE SWING ARM

33034-009

Unavailable

6

BUSHING-SWING ARM

33033-009

$103.86

7

SLEEVE SWING ARM LONG

33034-008

Unavailable

8

NUT-SELF LOCKING

92019-012

$24.14

9

NUT,CAP,10MM

92020-003

$5.16

10

WASHER SPRING 10MM

461F1000

Unavailable

11

WASHER,10.5X26X2.3

92022-044

$3.12

12

BUSH SHCK ABS RUBBER

45017-001

$11.35

13

COLLAR,SHOCKABSORBER

45016-003

$15.05

14

BOLT HEX HEAD 10X35

113N1035

Unavailable

15

SHOCK ABSBR RR

45014-061

Unavailable

16

GREASE NIPPLE

92005-002

Unavailable

17

ADJUSTER-CHAIN

33040-044

Unavailable

18

PLATE,CHAIN ADJUSTER

33041-002

Unavailable

19

NUT 8MM

312B0800

Unavailable

20

NUT,8MM

311B0800

Unavailable

21

TORQUE LINK-REAR BRK

43007-027

$25.05

21

TORQUE LINK-REAR BRK

43007-033

$25.25

22

PIN,SPRING,10X12

43009-001

Unavailable

23

PIN-COTTER,3.0X25

550D3025

Unavailable

24

WASHER SPRING 10MM

461F1000

Unavailable

25

NUT-HEX-FINE,10MM

315B1000

Unavailable

26

PIN-SNAP,8MM

554A0800

Unavailable

27

BOLT-HEX HEAD,10X40

92003-097

Unavailable
