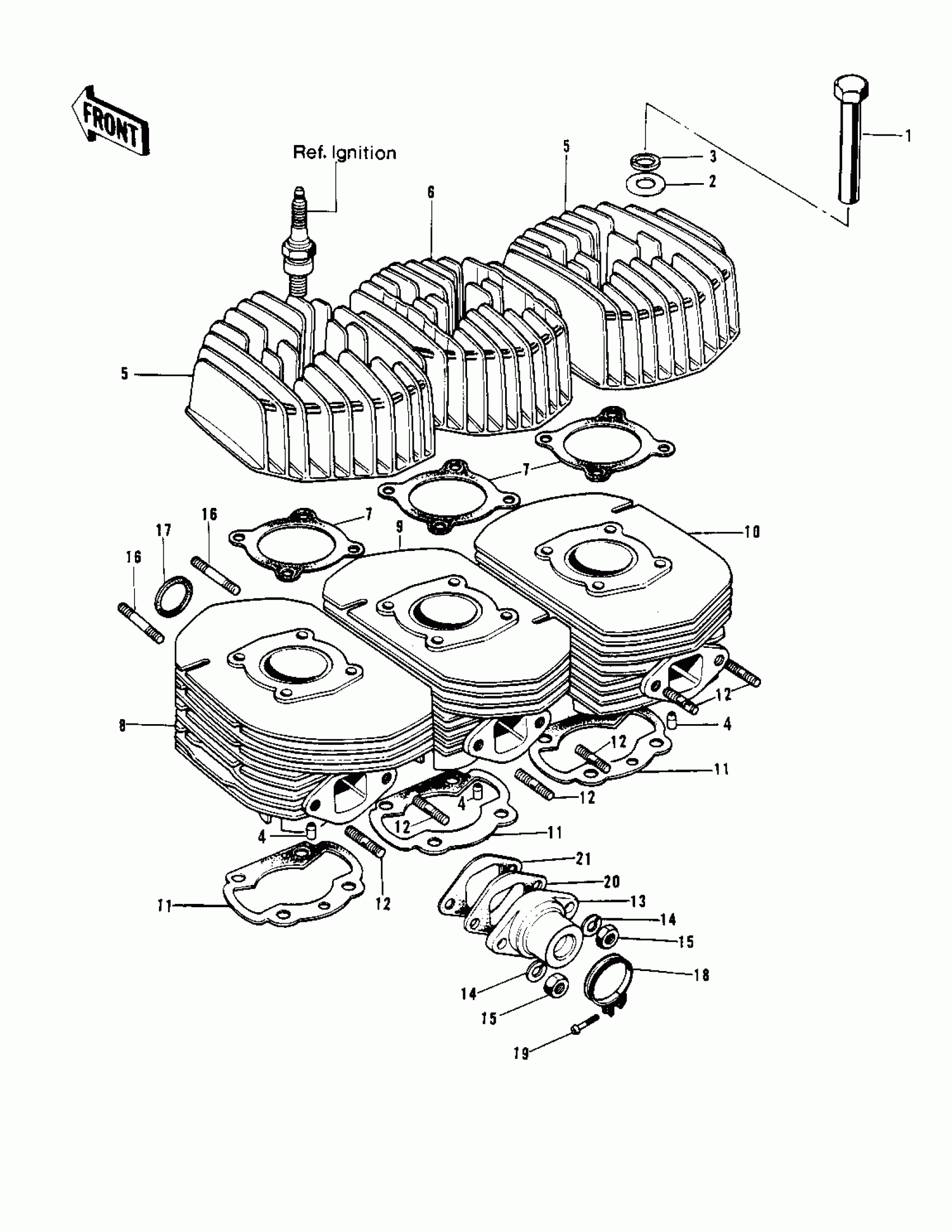

Kawasaki Mach IV CYLINDER HEADS/CYLINDERS Diagram
#
Description
Price
1
NUT-CYLINDER HEAD
92015-049
Unavailable
2
WASHER-PLAIN-SMALL,14MM
410B1400
Unavailable
3
WASHER SPRING 14MM
461F1400
Unavailable
4
NOZZLE,OIL METERING
92062-008
Unavailable
5
CYLINDER HEAD,L.H&R.H
11001-066
Unavailable
5
CYLINDER HEAD,R.H&L.H
11001-096-2H
Unavailable
6
CYLINDER HEAD,CENTER
11001-067
Unavailable
6
CYLINDER HEAD,CENTER
11001-097-2H
Unavailable
7
GASKET-CYLINDER HEAD
11004-049
Unavailable
8
CYLINDER,L.H
11005-109
Unavailable
8
CYLINDER,L.H BARREL
11005-128-2H
Unavailable
9
CYLINDER,CENTER
11005-110
Unavailable
9
CYLINDER,CENTER BAREL
11005-129-2H
Unavailable
10
CYLINDER,R.H
11005-111
Unavailable
10
CYLINDER,R.H BARREL
11005-130-2H
Unavailable
11
GASKET-CYLINDER BASE
11009-028
Unavailable
12
STUD,8X16
172G0816
Unavailable
13
INLET-AIR
16060-013
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
NUT,8MM
311B0800
Unavailable
16
STUD,8X25
92004-1008
Unavailable
17
GASKET EXHAUST PIPE
18067-008
Unavailable
18
CLAMP-INLET PIPE
92037-061
Unavailable
19
SCREW-PAN-CROS
220B0535
Unavailable
20
INSULATOR-HEAT
16061-014
Unavailable
21
GASKET-AIR INLET
16062-016
Unavailable
