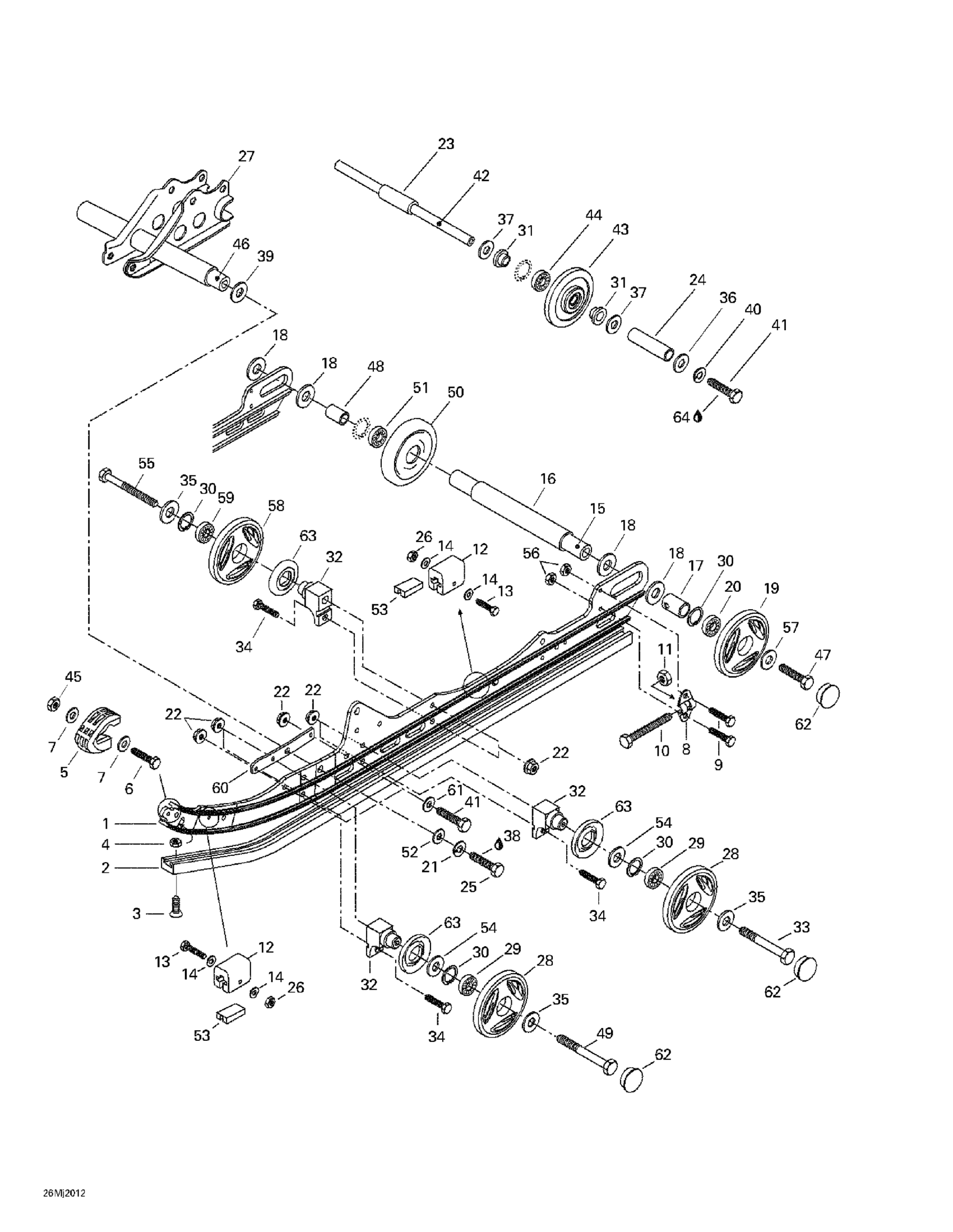

Ski-Doo Mach 1 R, 2000 Rear Suspension Diagram

#

Description
Price

1

Runner (121")

503188960

Unavailable

2

Runner Shoe

560103300

$26.84

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Washer | DS 650 X

391301600

$0.46

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.63

12

Rubber Stopper

570063000

Unavailable

13

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$125.34

16

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

17

Outer Spacer

503189809

$14.90

18

Washer

503180400

$3.27

19

Wheel 165 | Includes 19 - 20.

503189477

Unavailable

20

Ball Bearing

293350115

$10.82

21

Lock Washer 12 mm

234120602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.31

23

Spacer

503153100

Unavailable

24

External Spacer

503188951

Unavailable

25

Hex. Screw M12 x 40

207124044

Unavailable

26

Elastic Stop Nut M5

232551414

$0.82

27

Welded Shock Support

503188976

Unavailable

28

Wheel 135 | Includes 28 - 29.

572097603

Unavailable

29

Ball Bearing

293350115

$10.82

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

$4.42

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

34

Hex. Screw M8 X 25

207182544

$0.85

35

Washer

503183100

$2.99

36

Flat Washer 8 mm

234081410

$0.79

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Loctite 271, 10 ml

293800005

$23.85

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

$0.87

41

Hex. Screw M8 X 30

207183044

$1.06

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

$10.82

45

Elastic Stop Nut M5

232551414

$0.82

46

Lower Axle

503174900

Unavailable

47

Hex. Screw With Nylon

250000019

$1.63

48

Inner Spacer

503182900

$9.88

49

Hex. Screw M8 X 90

207089044

$3.24

50

Wheel 165" | Includes 670 to 670b

503194127

$48.48

51

Ball Bearing

293350115

$10.82

52

Flat Washer 12 mm

234021410

$0.66

53

Reinforcement Stopper

572084800

$5.09

54

WASHER - Call your local BRP dealership

503173700

Unavailable

55

Hex. Screw M8 X 80

207088044

$1.54

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

57

Washer

503183300

$5.51

58

Wheel 135

503191029

$31.31

59

Ball Bearing

293350115

$10.82

60

Reinforcement Plate

503189060

Unavailable

61

Flat Washer 8 mm

234081410

$0.79

62

Wheel Cap

570063600

$3.18

63

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

64

Loctite 243, 10 ml

293800060

$21.49
