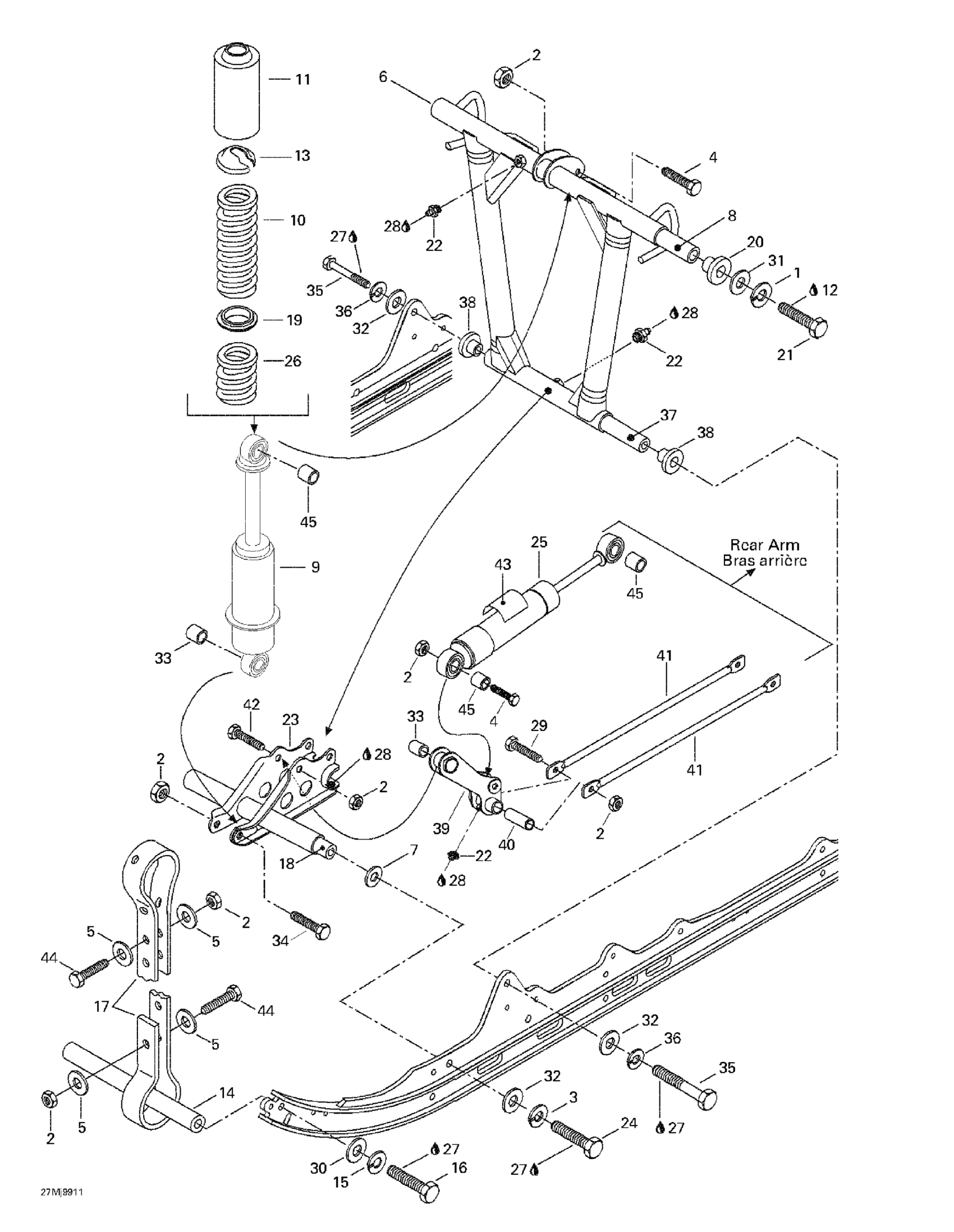

Ski-Doo Mach 1 R, 1999 Front Arm, Rear Suspension Diagram
#
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
Lock Washer 12 mm
224721218
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503171100
Unavailable
7
Hardened Washer
503175400
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock
415033500
Unavailable
10
Spring
415090600
Unavailable
11
Protector
503193663
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
Stopper Strap
570069300
Unavailable
18
Lower Axle
503174900
Unavailable
19
Spring Spacer
503182200
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Welded Shock Support
503188976
Unavailable
24
Hex. Screw M12 x 40
222024065
Unavailable
25
Rear Shock
503189228
Unavailable
26
Spring
415090500
Unavailable
27
Loctite 271, 10 ml
293800005
Unavailable
28
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
29
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
30
Flat Washer 8 mm
234081410
Unavailable
31
Flat Washer 10 mm
234001410
Unavailable
33
Cushion
414917900
Unavailable
35
HEX. SCREW M12 X 60 - Call your local BRP dealership
207026044
Unavailable
36
Lock Washer 12 mm
224721218
Unavailable
37
Shaft
503182000
Unavailable
38
Cushion
503188940
Unavailable
39
Lever
503158500
Unavailable
40
Tie Rod Shaft
503158600
Unavailable
41
Tie Rod
503187100
Unavailable
42
Hex. Screw M8 X 50
207085044
Unavailable
43
HPG Decal (Europe)
516000182
Unavailable
44
Hex. Screw M8 X 25
207182544
Unavailable
45
Bushing
414936000
Unavailable
