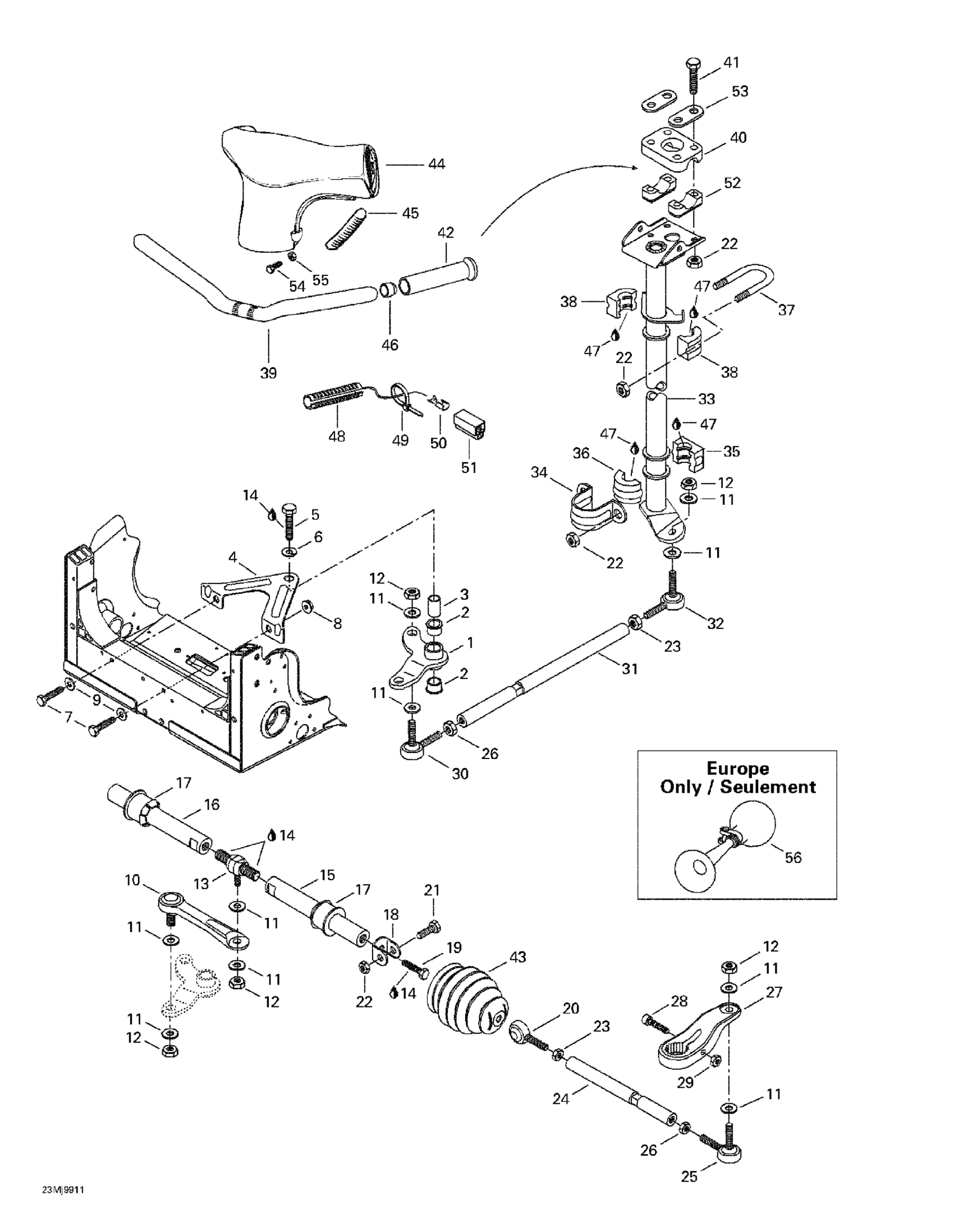

Ski-Doo Mach 1 R, 1999 Steering System Diagram

#

Description
Price

1

Pivot Arm

506129500

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

$5.52

3

Pivot

506131500

Unavailable

4

PIVOT SUPPORT - Call your local BRP dealership

506138400

Unavailable

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Hex. Screw M6 X 60

207066044

$0.56

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Flat Washer

224061121

$0.44

10

Ball Stud Lever

415059800

Unavailable

11

Washer

503175800

$3.26

12

Elastic Flange Nut M10

232501416

Unavailable

13

Ball Joint (Double)

415053300

Unavailable

14

Loctite 271, 10 ml

293800005

Unavailable

15

Sliding Bar (Short)

506129400

Unavailable

16

Sliding Bar (Long)

506129402

Unavailable

17

Cushion

572108500

Unavailable

18

Bracket

506138300

Unavailable

19

Hex. Screw M10 X 25

207102544

Unavailable

20

LH Ball Joint

415048600

Unavailable

21

Hex. Screw M8 X 40

207084044

Unavailable

22

Hex. Elastic Stop Nut M8

232581414

Unavailable

23

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

24

Tie-Rod

506129600

Unavailable

25

Ball Joint

506151491

Unavailable

26

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

27

RH Steering Arm

506151157

Unavailable

LH Steering Arm

506151159

Unavailable

28

Allen Screw M8 x 35

222983565

Unavailable

29

Hex. Elastic Stop Nut M8

232581414

Unavailable

30

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

31

Tie Rod

506131200

Unavailable

32

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

33

Main Tube

506151169

Unavailable

34

Retainer Support

517126200

Unavailable

35

Bushing

572064400

Unavailable

36

BUSHING - Call your local BRP dealership

572064500

Unavailable

37

U-clamp | X

506060600

Unavailable

38

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

39

Handlebar

506142000

Unavailable

40

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

41

Hex. Screw M8 X 55

207085544

$1.62

42

RH Grip 6-1/2"

506151530

Unavailable

43

Tie-Rod Cap

570054100

Unavailable

44

Steering Padding

506151182

Unavailable

45

KEYWAY - Call your local BRP dealership | Sport / Sport GT

572106200

Unavailable

46

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

48

Heating Grip

515175573

Unavailable

49

Tie Wrap 94 mm | 4X4

293750001

$0.83

50

Female Terminal

561503100

Unavailable

51

Female Housing

409204300

Unavailable

52

Steering Support

709400919

Unavailable

53

Stiffner

709400509

Unavailable

54

Phillips Screw M5 X 20

208652044

Unavailable

55

Hex. Flange Elastic Nut M5

233251414

Unavailable

56

Horn

549011291

$35.35
