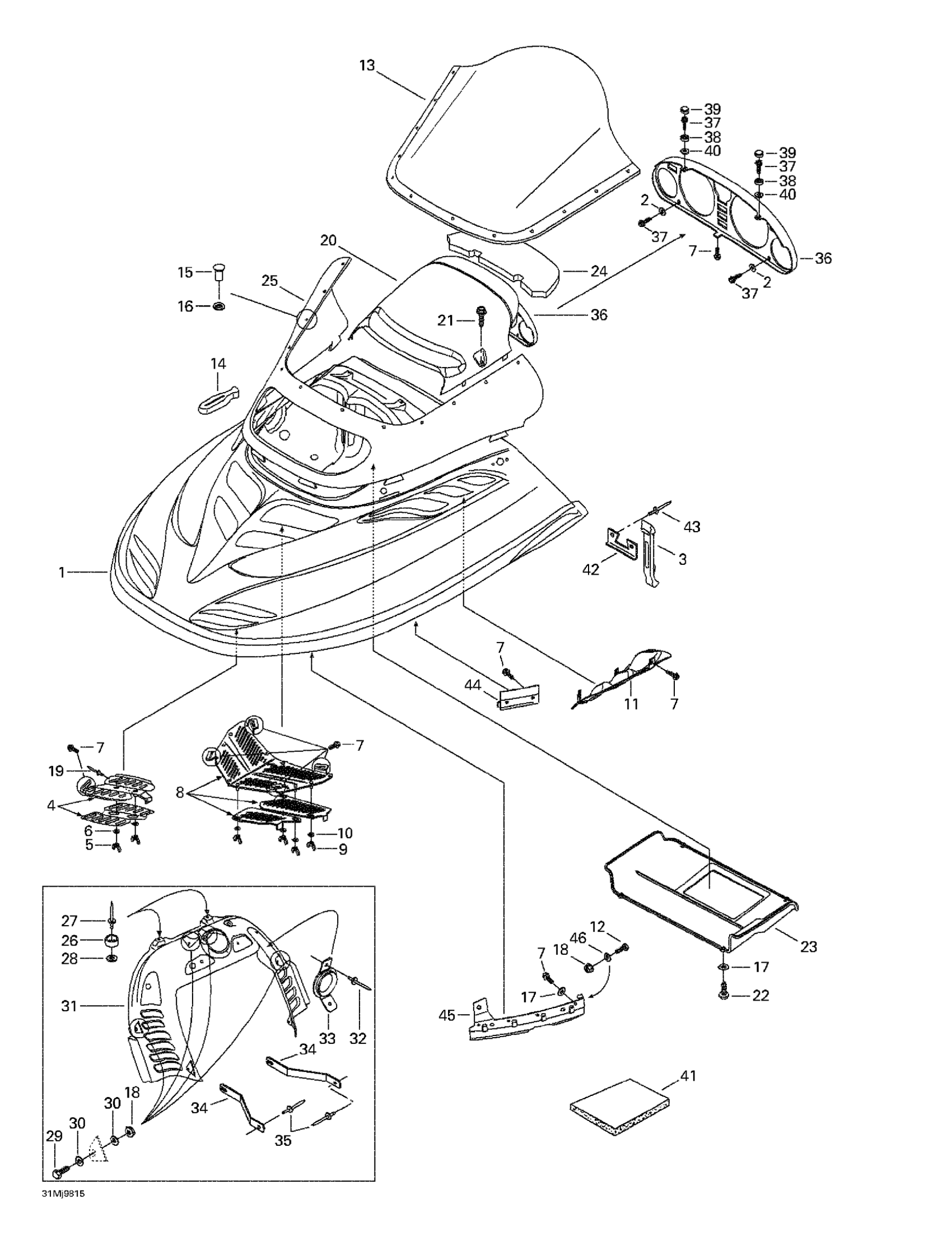

Ski-Doo Mach 1 R, 1998 Cab, Console Diagram
#
1
Hood (Black)
572087500
Unavailable
2
Washer
517124300
Unavailable
3
Hood Latch
517302152
Unavailable
4
RH Front Grill Ass'y | Includes 4 - 6.
517302071
Unavailable
LH Front Grill Ass'y
517302072
Unavailable
5
Wing Nut M5
414070300
Unavailable
6
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
7
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
8
Center Grill Ass'y | Includes 8 - 14.
517302073
Unavailable
9
Wing Nut M5
414070300
Unavailable
10
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
11
RH Rear Grill
517288900
Unavailable
RH Rear Grill (Europe) | Formula III 600.
517300602
Unavailable
LH Rear Grill
517300600
Unavailable
12
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
13
Low Windshield
415045800
Unavailable
14
Windshield Latch
570023800
Unavailable
15
STUD - Call your local BRP dealership
572103500
Unavailable
16
Push Nut
732610072
Unavailable
17
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
18
Hex. Flange Elastic Nut M5
233251414
Unavailable
19
Pop Rivet 3/16"
390402400
Unavailable
20
Air Intake Deflector
572107300
Unavailable
22
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
23
Plate
572087800
Unavailable
24
Filter Foam
415123100
Unavailable
25
Windshield Support
572087700
Unavailable
27
Pop Rivet 1/8" | SM5
390401600
Unavailable
28
WASHER - Call your local BRP dealership
293150007
Unavailable
30
Washer | DS 650 X
391301600
Unavailable
31
Console | Formula III 600. Formula III 600 LT. Formula III 700.
572087901
Unavailable
Console | Formula III 600 R. Formula III 700 R.
572087905
Unavailable
32
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe
390409400
Unavailable
33
Rope Guide
517296800
Unavailable
34
Bracket
517296900
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Gauge Support
572098600
Unavailable
39
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
40
Flat Washer 4 mm, Stainless
234042600
Unavailable
41
Acoustic Foam
414632400
Unavailable
Acoustic Foam
414631900
Unavailable
42
Reinforcement
517302039
Unavailable
43
Rivet
390401400
Unavailable
44
RH Hood Guide (Install on LH side)
517302010
Unavailable
LH Hood Guide (Install on RH side)
517302012
Unavailable
45
RH Hood Guide
517301200
Unavailable
LH Hood Guide
517301300
Unavailable
46
WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.
420845330
Unavailable
