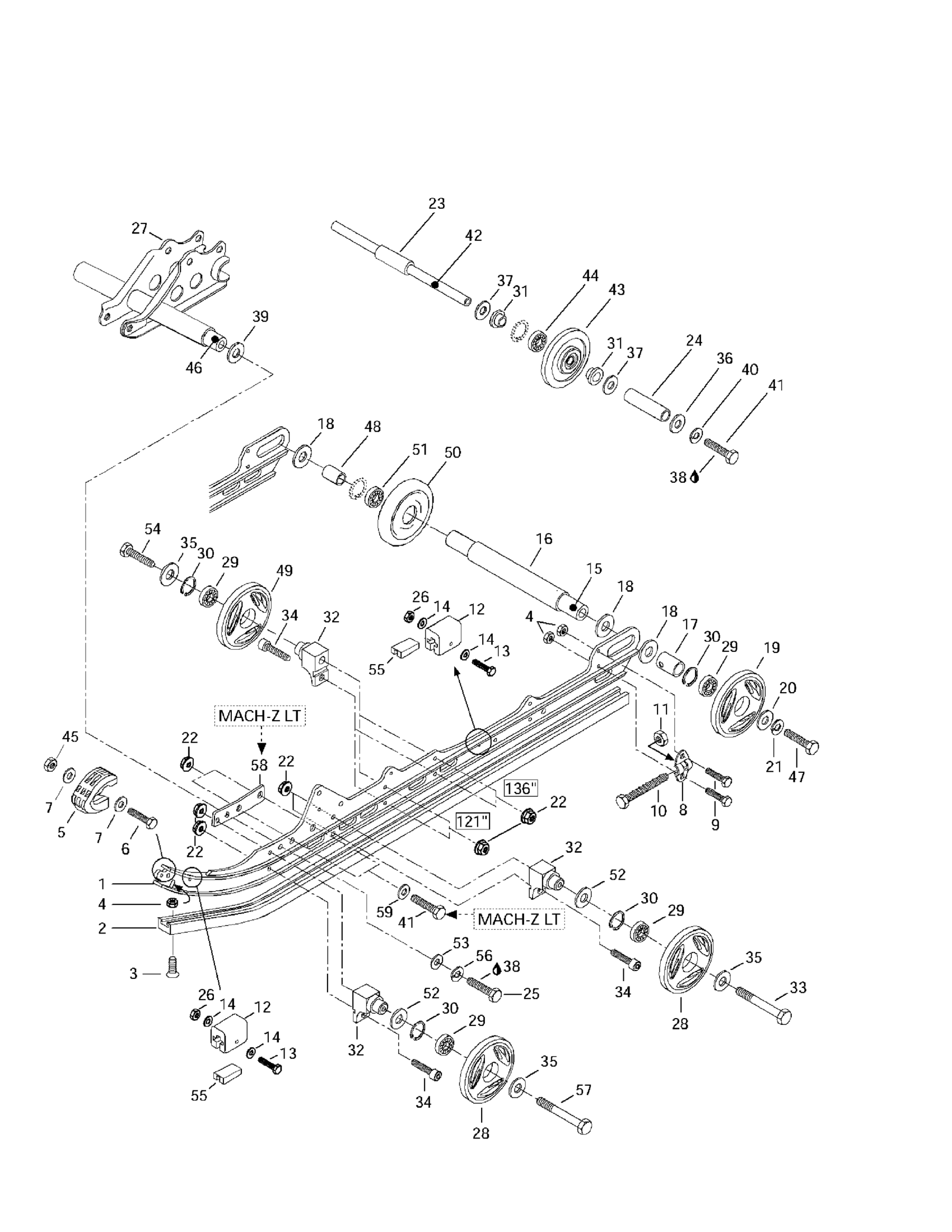

Ski-Doo Mach 1, 1997 Rear Suspension Diagram

#

Description
Price

1

Runner (121") | Formula III.

503174700

Unavailable

Runner (136") | Formula III-LT.

503171300

Unavailable

2

Runner Shoe

560103300

Unavailable

Slide Shoe

605355362

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$129.20

16

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

17

Outer Spacer

503189809

$15.35

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Bond Wheel 165 (Yellow)

570045326

Unavailable

20

Washer

503183300

$5.68

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Center Spacer

503160100

Unavailable

24

External Spacer | Formula Z 583. Formula 583 Deluxe.

503160200

Unavailable

25

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

Hex. Screw M12 x 40

222024065

Unavailable

26

Elastic Stop Nut M5

232551414

Unavailable

27

Welded Shock Support | Formula Z.

503158300

Unavailable

Welded Shock Support | Formula III-LT.

503173400

Unavailable

28

Idler Wheel 135 (Yellow)

570045226

Unavailable

29

Ball Bearing

293350115

Unavailable

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

Unavailable

32

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

34

Socket Head Screw M8 X 25

205082544

Unavailable

35

Washer

503183100

$3.08

36

Washer (Black)

503169900

Unavailable

37

WASHER - Call your local BRP dealership

503154000

$4.20

38

Loctite 271, 10 ml

293800005

Unavailable

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

Unavailable

41

Hex. Screw M8 X 30

207183044

Unavailable

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

Unavailable

45

Elastic Stop Nut M5

232551414

Unavailable

46

Lower Axle

503174800

Unavailable

Lower Axle

503174900

Unavailable

47

Hex. Screw With Nylon

250000019

Unavailable

48

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

49

Wheel 135 | Includes 18 to 19

503190797

Unavailable

50

Wheel 165" | Includes 670 to 670b

503194127

$49.97

51

Ball Bearing

293350115

Unavailable

52

WASHER - Call your local BRP dealership

503173700

Unavailable

53

Flat Washer 12 mm

234021410

$0.68

54

Hex. Screw M8 X 80

207088044

Unavailable

55

Reinforcement Stopper

572084800

$5.25

56

Lock Washer 12 mm

224721218

Unavailable

57

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

Hex. Screw M8 X 90

207089044

$2.82

58

Reinforcement Plate | Formula III 600 LT.

503171200

Unavailable

59

Flat Washer 8 mm

234081410

Unavailable
