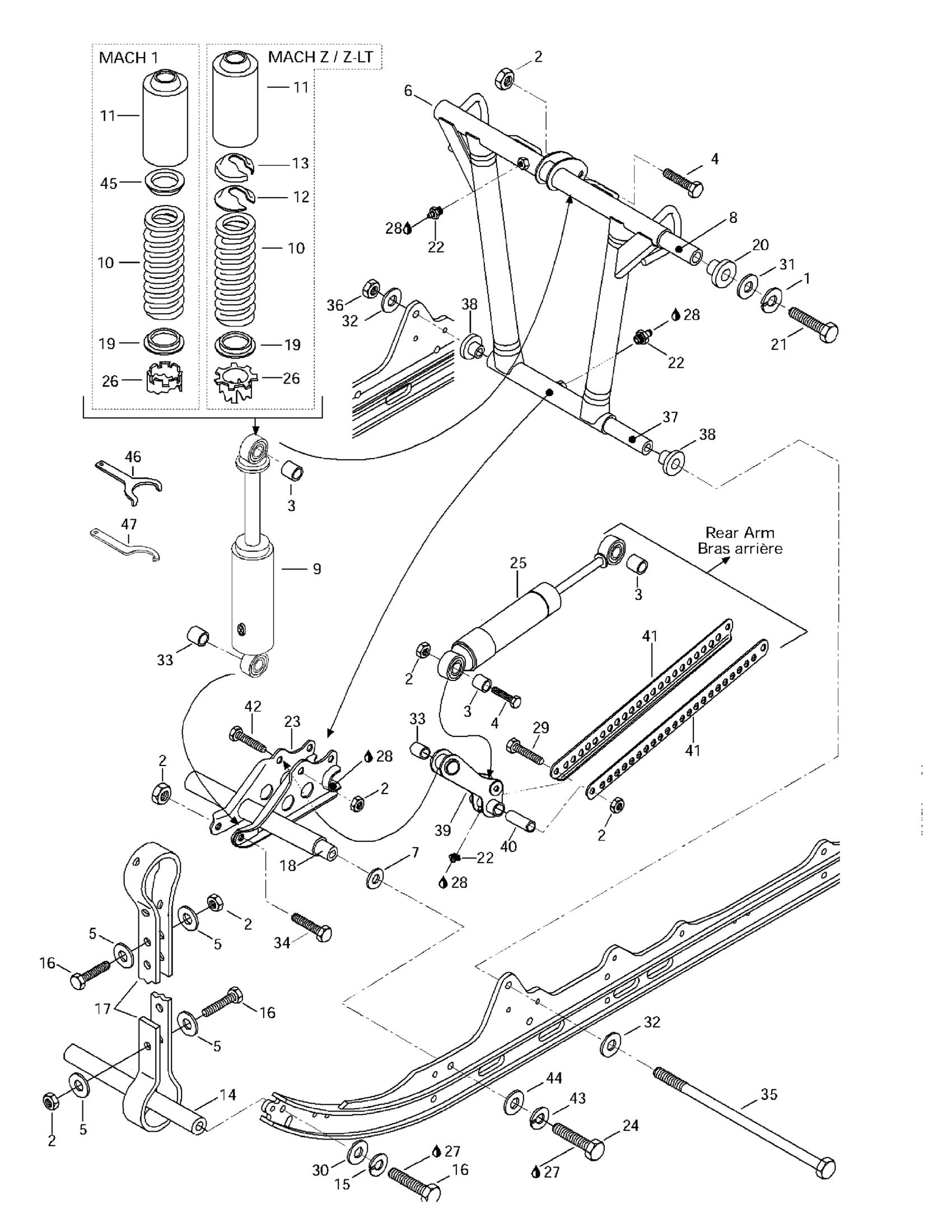

Ski-Doo Mach 1, 1997 Front Arm, Rear Suspension Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.54

3

Bushing

414936000

$11.21

4

Hex. Screw M8 X 40

207084044

$1.06

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503171100

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock

415033500

Unavailable

Shock | Formula III.

415055500

Unavailable

Shock | Formula III-LT.

415039200

Unavailable

10

Shock Spring

415057500

Unavailable

Spring

415057600

Unavailable

11

Protector

503193663

$34.30

12

Cap

706200785

$4.28

13

Spring Stopper

706200881

$11.82

14

Axle

503151600

$14.90

15

Lock Washer 8 mm

234181401

$0.87

16

Hex. Screw M8 X 30

207183044

$1.06

17

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

18

Lower Axle

503174800

Unavailable

Lower Axle

503174900

Unavailable

19

Spring Guide

415052800

Unavailable

Spring Guide

503191872

$2.12

Spring Guide

572092600

Unavailable

20

Bushing

503189324

$10.84

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.21

23

Welded Shock Support | Formula Z.

503158300

Unavailable

Welded Shock Support | Formula III-LT.

503173400

Unavailable

24

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

Hex. Screw M12 x 40

222024065

Unavailable

25

Shock | Mach 1.

415033600

Unavailable

Shock (HPG) | Formula III.

415055600

Unavailable

Shock | Formula III-LT.

415033400

Unavailable

26

Cam | Formula III 600.

415052700

Unavailable

Adjustment Cam

505073625

$11.82

Cam

503169000

Unavailable

27

Loctite 271, 10 ml

293800005

$23.85

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Flat Washer 8 mm

234081410

$0.79

31

Flat Washer 10 mm

234001410

$1.12

32

Flat Washer 12 mm

234021410

$0.66

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.57

35

Bolt M12 | Formula Z.

503140800

Unavailable

36

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

37

Lower Axle (Front Arm) | Formula Z.

503158900

Unavailable

38

Cushion | Formula Z 583. Formula 583 Deluxe.

415026300

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

41

Tie Rod | Formula Z 583. Formula 583 Deluxe.

503158700

Unavailable

Tie Rod | Formula III 600 LT.

503170900

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.43

43

Lock Washer 12 mm

224721218

Unavailable

44

Flat Washer 12 mm

234021410

$0.66

45

Thrust Washer

415052900

Unavailable

46

ADJUSTER WRENCH (REAR SUSPENSION) - Call your local BRP dealership

529019000

Unavailable

47

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable
