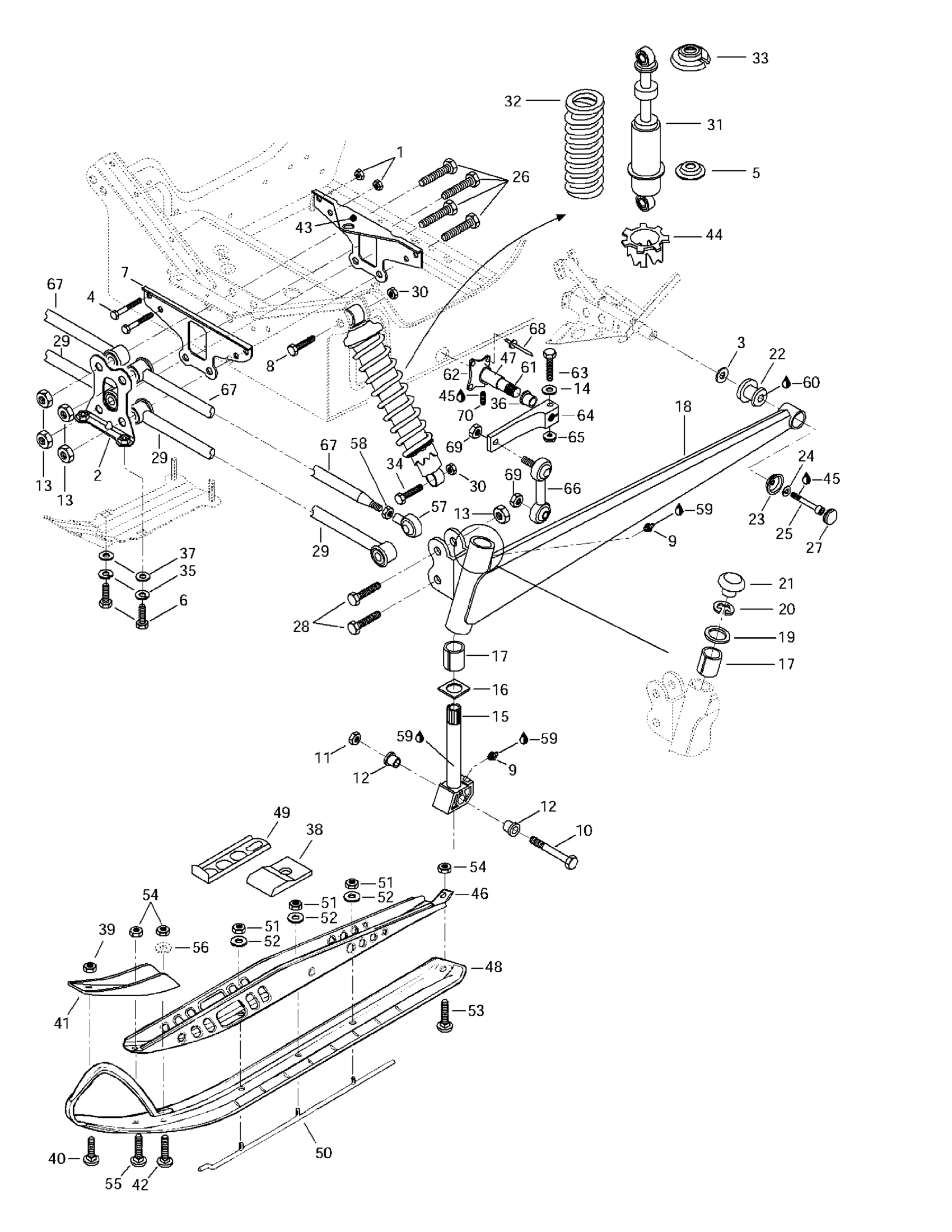

Ski-Doo Mach 1, 1997 Front Suspension And Ski Diagram
#
1
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
2
Link Plate
506122900
Unavailable
4
Hex. Screw M6 X 55
207065544
Unavailable
5
Spring Guide
503191872
Unavailable
7
Front Link Plate
517254800
Unavailable
8
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
9
Grease Fitting
408200700
Unavailable
10
Hex. Screw M12
732601176
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
14
Flat Washer 8 mm
234081410
Unavailable
15
Ski Leg
506139200
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm
506136710
Unavailable
RH Swing Arm
506136610
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
23
Cup | Package Hunter
705007171
Unavailable
24
Lock Washer 8 mm
234181401
Unavailable
25
Socket Head Screw M8 X 25
205082544
Unavailable
26
Hex. Screw M12 x 90
222029065
Unavailable
27
CAP - Call your local BRP dealership
572045900
Unavailable
28
Hex. Screw M12 x 55
222025565
Unavailable
29
Arm Ass'y
580650800
Unavailable
31
Front Shock | Mach 1.
415033000
Unavailable
Front Shock (HPG) (Canada, U.S.A. Only) | MX Z 500.
414956700
Unavailable
Front Shock
415040200
Unavailable
32
Shock Spring (Yellow) | Mach 1. Mach Z.
414956300
Unavailable
Shock Spring (Yellow) | Mach Z-LT.
415035500
Unavailable
35
Lock Washer 8 mm
234181401
Unavailable
37
Flat Washer 8 mm
234081410
Unavailable
38
Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
570046800
Unavailable
39
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
40
Carriage Bolt M6 X 25
207762544
Unavailable
41
Ski Reinforcement | Formula 500 Deluxe.
505068000
Unavailable
42
Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
222284065
Unavailable
43
Rear Link Plate
517254900
Unavailable
44
Adjustment Cam
505073625
Unavailable
Cam
503169000
Unavailable
46
Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505068100
Unavailable
47
Main Tube
506136200
Unavailable
48
Plastic Ski (Black) | Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
572090400
Unavailable
Ski Plastic | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
572085700
Unavailable
49
Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505067509
Unavailable
50
CARBIDE RUNNER (8) - Call your local BRP dealership | Includes 4 - 5.
505067220
Unavailable
52
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
54
Hex. Flange Elastic Nut M8
233281414
Unavailable
55
Carriage Bolt M8 X 30
207783044
Unavailable
56
Not Available As Spare Part - Friction Washer
Unavailable
57
RH Ball Joint | Formula Z 583. Formula Z 670.
415042500
Unavailable
58
Hex. Jam Nut M14
232170411
Unavailable
59
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
60
Grease, Super Lube
293550030
Unavailable
61
Stabilizator
506134300
Unavailable
62
Housing
506139000
Unavailable
63
Hex. Screw M8 X 45
207084544
Unavailable
64
Stabilizer Lever
506134402
Unavailable
65
Hex. Flange Elastic Nut M8
233281414
Unavailable
66
Double Ball Joint
415042300
Unavailable
67
Arm Ass'y | MX Z 500. MX Z 583.
580649900
Unavailable
68
Rivet pop 1/4"
390404900
Unavailable
