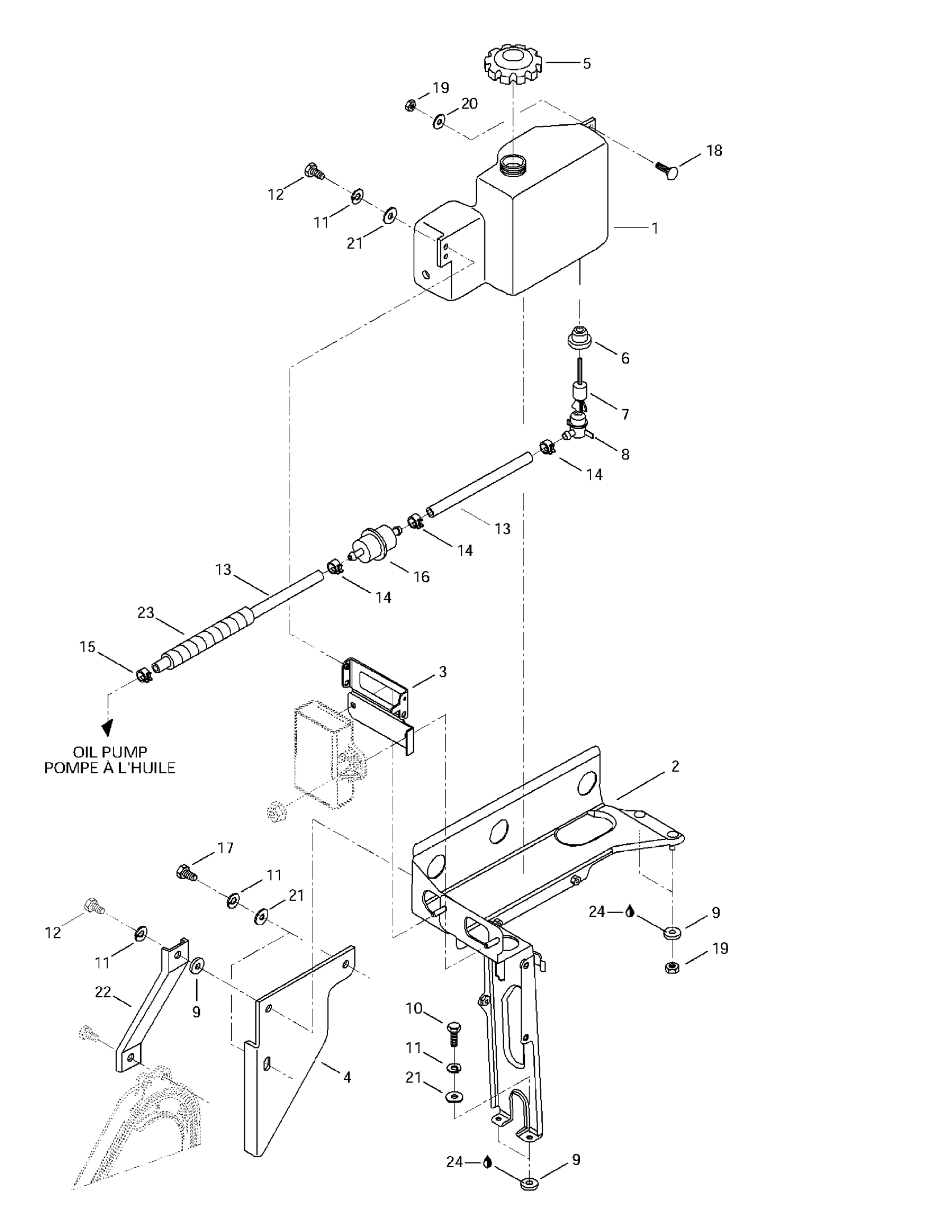

Ski-Doo Mach 1, 1997 Oil Tank And Support Diagram

#

Description
Price

1

Injection Oil Tank

572043100

Unavailable

2

Support

517285100

Unavailable

3

Upper Support

517260300

Unavailable

4

Deflector

517275900

Unavailable

5

CAP - Call your local BRP dealership

519000044

Unavailable

6

Insulating Ring

570023000

Unavailable

7

Float

414681900

Unavailable

8

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

9

Rubber Spacer

414454400

$2.40

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

11

Lock Washer M6, Black

234161471

$0.52

12

Hex. Screw M6 X 16

207161644

Unavailable

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

14

Spring Clamp

414415200

$0.83

15

Spring Clamp

414420700

Unavailable

16

Filter

414536500

$3.25

17

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

18

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Flat Washer

224061201

Unavailable

21

Flat Washer 6 mm

234061410

Unavailable

22

Welded Side Support

517254101

Unavailable

23

Was 409901800 Tubing (13 mm)

219704400

Unavailable

24

LOCTITE 495, 3GR - Call your local BRP dealership

413703200

Unavailable
