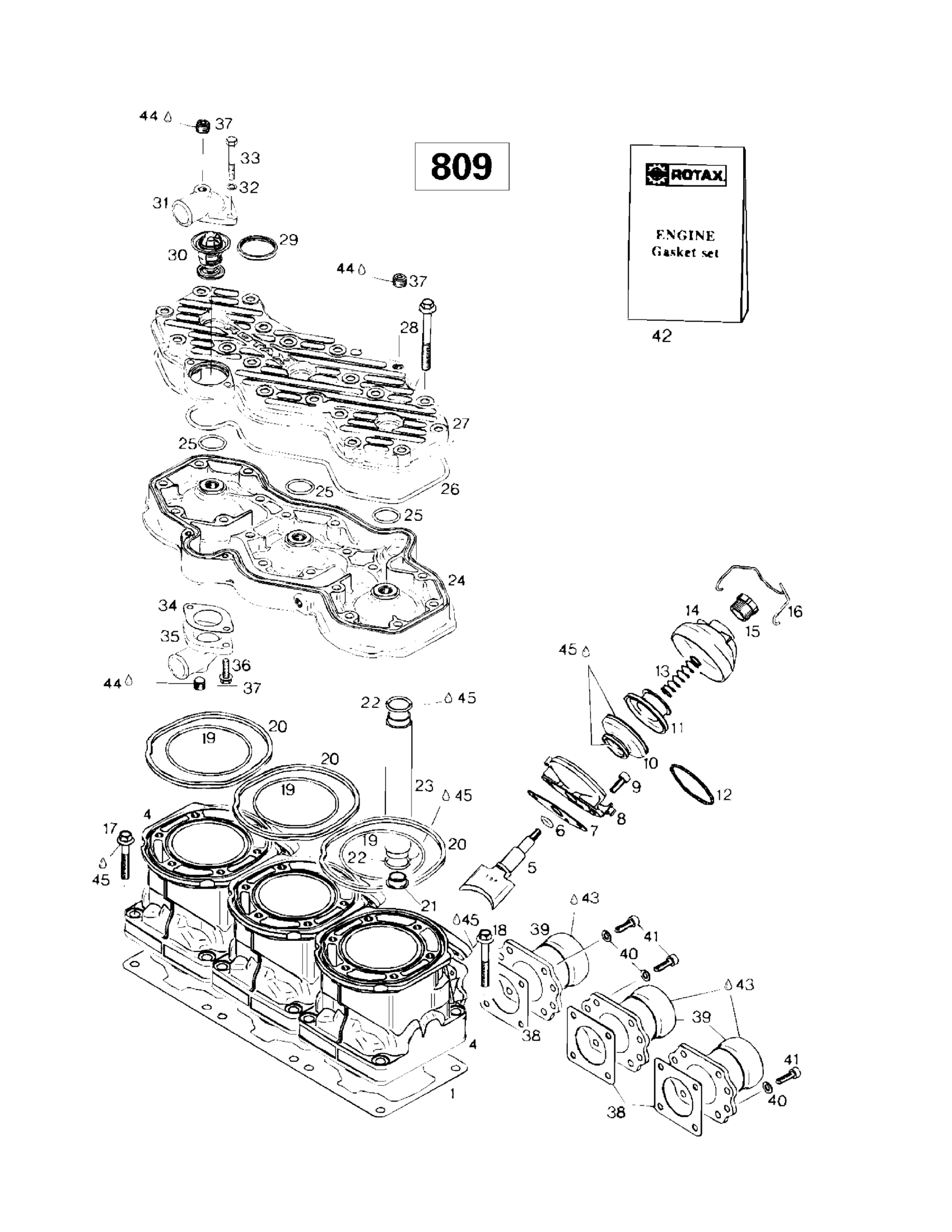

Ski-Doo Mach 1, 1997 Cylinder, Exhaust Manifold (809) Diagram

#

Description
Price

1

BASE GASKET SET - Call your local BRP dealership | Includes 1 - 3.

420931625

Unavailable

1

GASKET 0.3 MM - Call your local BRP dealership

420931620

Unavailable

2

GASKET 0.4 MM - Call your local BRP dealership

420931621

Unavailable

3

GASKET 0.6 MM - Call your local BRP dealership

420931622

Unavailable

4

Cylinder (Nicasil Coated)

420923480

Unavailable

5

Exhaust Valve | Mach Z. Mach Z-LT.

420854302

Unavailable

6

O-Ring

420430110

$3.61

7

Gasket

420250239

$6.62

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

Unavailable

10

Exhaust Bellows

420260723

$35.07

11

Exhaust Valve This part replaces 290253257.

420854449

$29.87

12

Hose Spring This part replaces 420239048.

420939281

Unavailable

13

Spring This part replaces 420239944.

420239954

Unavailable

14

Valve Cover

420911552

$37.66

15

Adjuster Screw

420241221

Unavailable

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

Hex. Collar Screw M8 x 45

420640432

Unavailable

18

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

19

O-Ring | Grand Touring 500.

420831792

Unavailable

20

SEAL RING - Call your local BRP dealership

420931320

Unavailable

21

Stop Plug | Mach Z. Mach Z-LT.

420922590

Unavailable

22

O-Ring

420430373

Unavailable

23

Water Tube

420922450

Unavailable

24

Cylinder Head (Charcoal) | Mach Z. Mach Z-LT.

420913635

Unavailable

25

O-Ring

420430782

Unavailable

26

O-RING - Call your local BRP dealership

420950310

Unavailable

27

Cylinder Head Cover (Charcoal) | Mach Z. Mach Z-LT.

420923490

Unavailable

28

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

29

SEALING RING - Call your local BRP dealership

420931270

Unavailable

30

Thermostat This part replaces 414834100.

420922519

Unavailable

31

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

$40.74

32

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

33

Hex. Screw M6 X 40

207064044

$1.48

34

Gasket

420850338

$10.28

35

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

$40.74

36

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable

37

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

38

Gasket

420850552

$7.92

39

Exhaust Socket | Formula III 600.

420978816

Unavailable

40

Lock Washer M6, Black

234161471

$0.52

41

Socket Head Screw M6 X 25

205062544

$0.88

42

Gasket Set | Formula III 800.

420886249

Unavailable

43

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

44

Loctite 243, 10 ml

293800060

$20.77

45

Dow Corning 111, 150 g

413707000

$57.82
