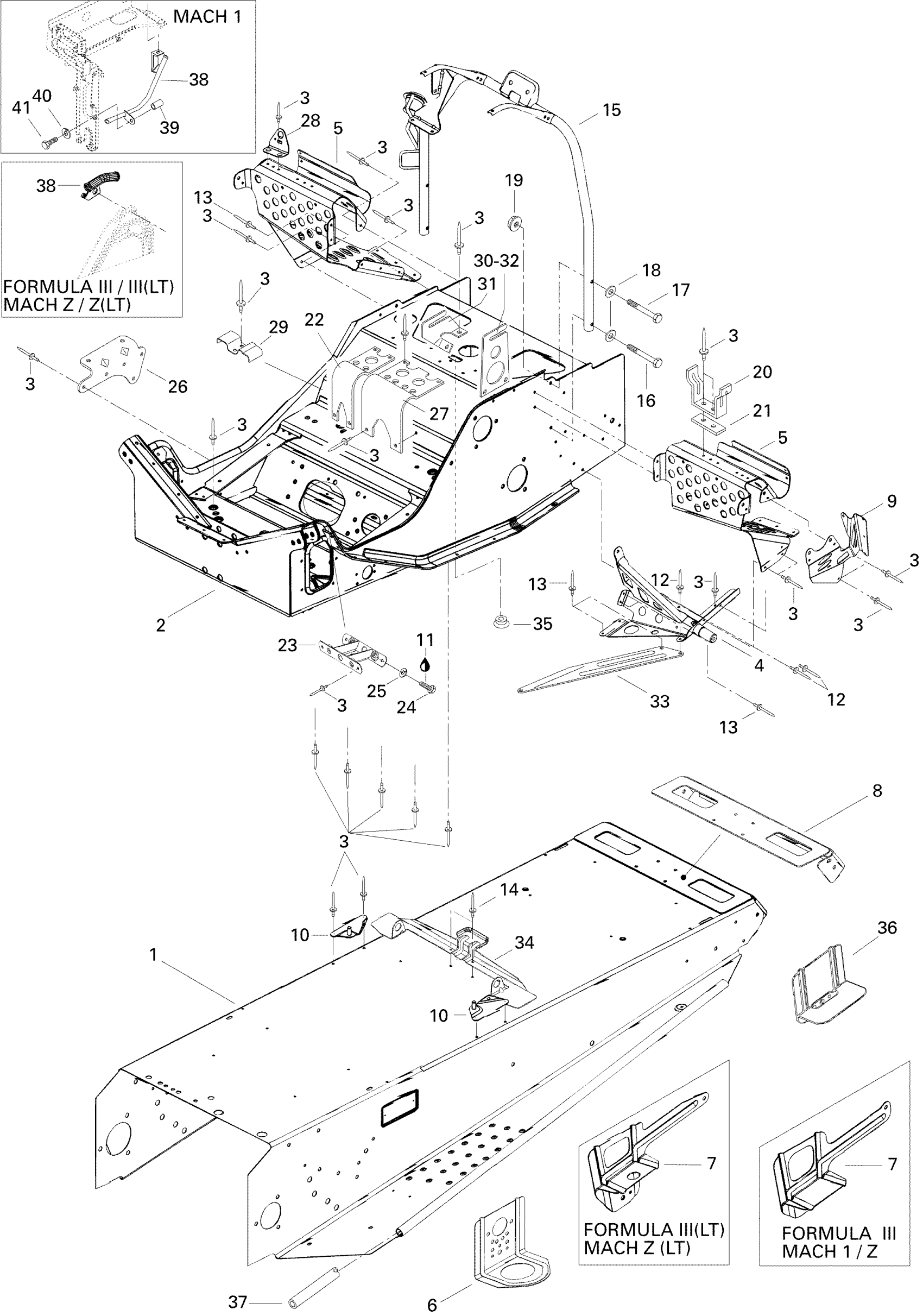

Ski-Doo Mach 1, 1996 Frame and Components Mach 1 Diagram
#
1
Tunnel
518313240
Unavailable
2
Front Member
518313045
Unavailable
4
RH Support
518312901
Unavailable
5
RH Front Footrest
518312906
Unavailable
5
LH Front Footrest
518312907
Unavailable
6
Front Bracket
518312910
Unavailable
7
LH Rear Bracket
518304721
Unavailable
7
RH Rear Bracket
518304720
Unavailable
8
Cap-End
518310211
Unavailable
9
Side Plate L.H
518312908
Unavailable
9
Side Plate R.H
518312909
Unavailable
10
RH Tank Bracket
518304735
Unavailable
10
LH Tank Bracket
518304736
Unavailable
11
Loctite 271, 10 ml
293800005
Unavailable
12
Avex Rivet
390909200
Unavailable
14
Pop Rivet 3/16"
390402400
Unavailable
15
Handle Steering Support
518304743
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
Reinf. Plate
518304741
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
28
Valve Bracket | MX Z 670 HO.
518310206
Unavailable
29
Protector
518207800
Unavailable
30
External Bracket
517252000
Unavailable
31
Internal Bracket
518310209
Unavailable
32
Avex Rivet
390909200
Unavailable
33
RH Reinf. Plate
518312929
Unavailable
33
LH Reinf. Plate
518312930
Unavailable
34
Seat Bracket
518317506
Unavailable
36
Not Available As Spare Parts
XXX
Unavailable
37
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
38
Rope Guide
517274800
Unavailable
39
Polyurethane Hose 10000Mm Long
219704410
Unavailable
41
Hex. Screw M6 X 16
207161644
Unavailable
