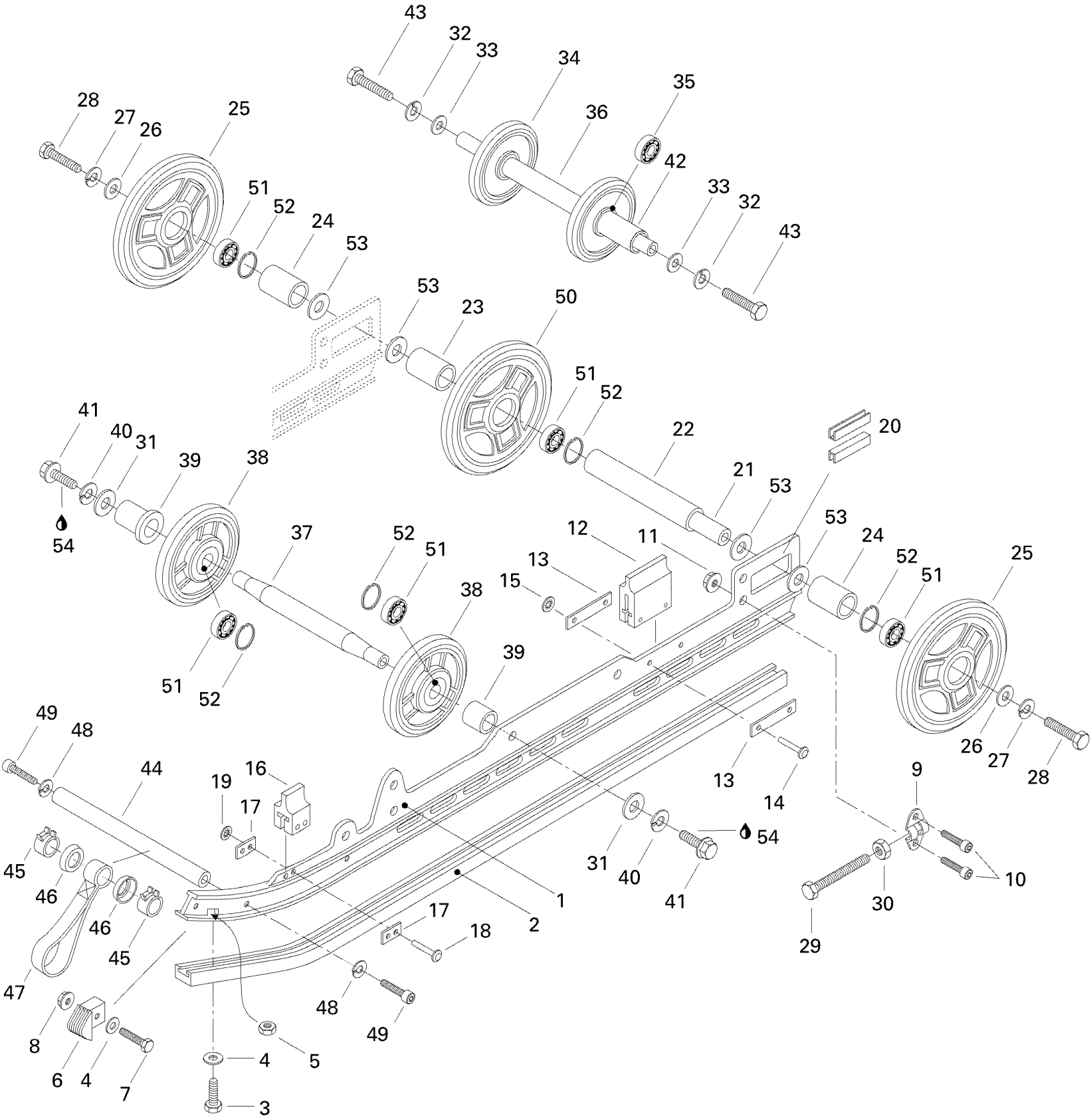

Ski-Doo Mach 1, 1996 Rear Suspension Mach 1, Z Diagram

#

Description
Price

1

Runner

503164400

Unavailable

2

Slider Shoe

560101900

Unavailable

3

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

4

Flat Washer

224061121

$0.44

5

Elastic Stop Nut M6

232561414

Unavailable

6

Runner Protector

572028900

Unavailable

7

Hex. Screw M6 X 30

207063044

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Tensionner

503140100

Unavailable

10

Socket Head Screw M8 X 25

205082544

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

Rear Rubber Stopper

570047800

Unavailable

13

Rear Rubber Stopper Protector

503141300

Unavailable

14

RIVET-STEEL SOLID - Call your local BRP dealership

390004800

Unavailable

15

Push Nut

389804300

$0.43

16

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

17

Front Rubber Stopper Protector

503143000

Unavailable

18

Steel Rivet

390907000

Unavailable

19

Push Nut

389804300

$0.43

20

Protector

503125800

Unavailable

21

Rear Axle

503167900

$129.20

22

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

23

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

24

Outer Spacer

503189809

$15.35

25

Wheel 165 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045323

Unavailable

26

Washer

503032900

$3.20

27

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

28

Hex. Screw With Nylon

250000019

Unavailable

29

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.68

31

Flat Washer 10 mm

234001410

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Center Axle

503140300

Unavailable

38

Wheel 135 | Includes 18 to 19

503190797

Unavailable

39

Spacer

503140400

Unavailable

40

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

41

Hex. Screw M10 X 35

207103544

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Axle

503140700

Unavailable

45

Spring Clamp

414808200

Unavailable

46

Washer

503146800

Unavailable

47

Stopper Strap

503145500

Unavailable

48

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

49

Socket Screw M10 X 35

205003544

Unavailable

50

Bond Wheel

570045322

Unavailable

51

Ball Bearing

293350115

Unavailable

52

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

53

SHIM - Call your local BRP dealership

504108200

Unavailable

54

Loctite 271, 10 ml

293800005

Unavailable
