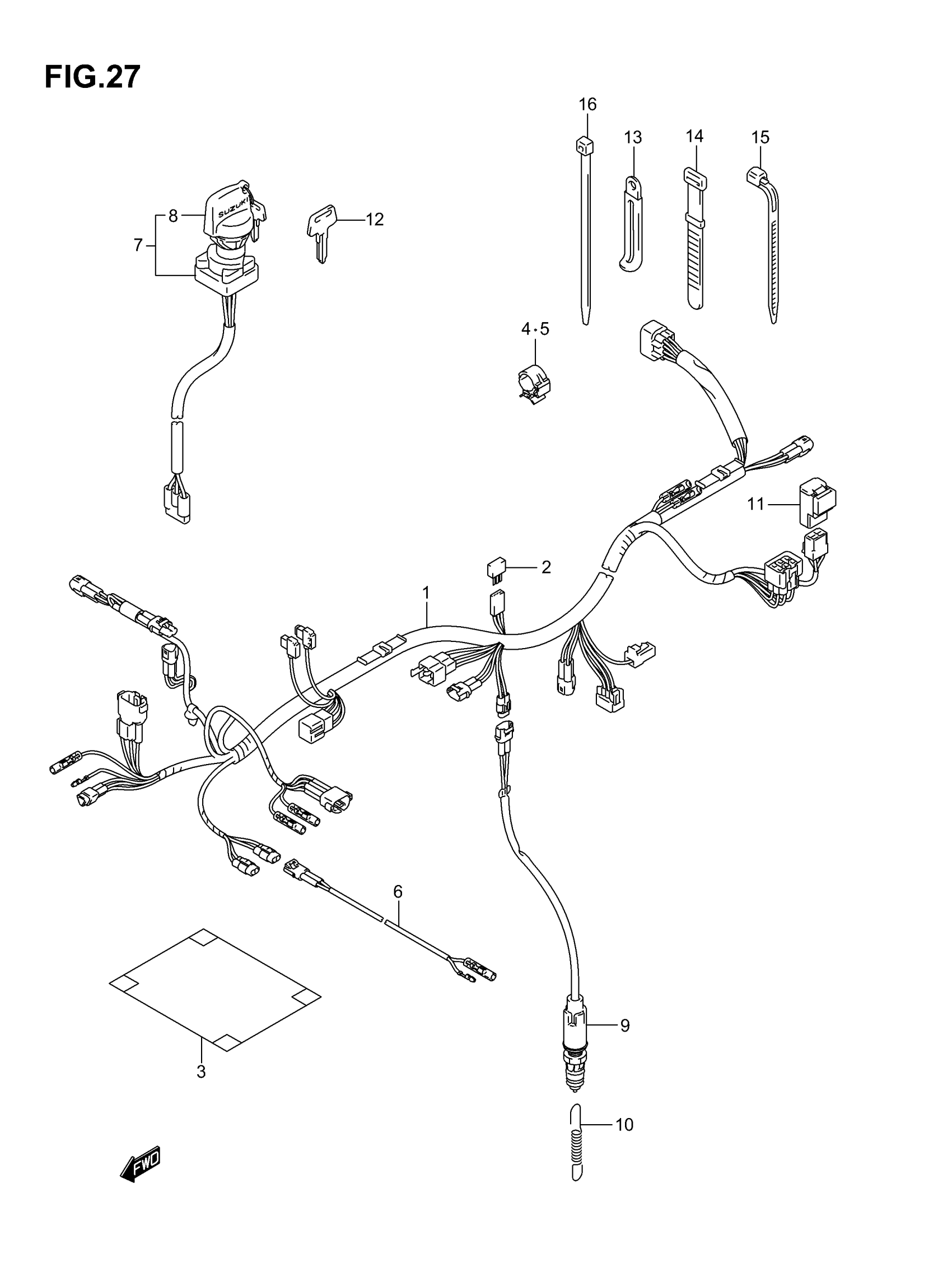

Suzuki LTF250 (2007) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-05G20

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

Unavailable

4

CLAMP (ID:15)

09403-15405

Unavailable

5

CLAMP (ID:25)

09403-25401

Unavailable

6

WIRE,BRAKE SW L This part replaces 36856-35B00.

36856-35B01

Unavailable

7

SWITCH ASSY,IGN | Includes Item(s) 8 This part replaces 37110-05G00.

37110-05G02

Unavailable

8

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

Unavailable

9

SWITCH ASSY,STOP LAMP

37740-38F01

Unavailable

10

SPRING, STOP LAMP SWITCH

09443-06012

Unavailable

11

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

Unavailable

12

KEY,BLANK (TYPE:C) | OPT

37146-19B00

Unavailable

12

KEY,BLANK (TYPE:D) | OPT

37146-19B10

Unavailable

12

KEY,BLANK (TYPE:E) | OPT

37146-19B20

Unavailable

12

KEY,BLANK (TYPE:F) | OPT

37146-19B30

Unavailable

13

CLAMP (L:45)

09404-06429

Unavailable

13

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

Unavailable

14

CLAMP (L:120)

09407-12402

Unavailable

15

CLAMP (L:165)

09407-18402

Unavailable

16

CLAMP (L:100)

09407-10404

Unavailable
