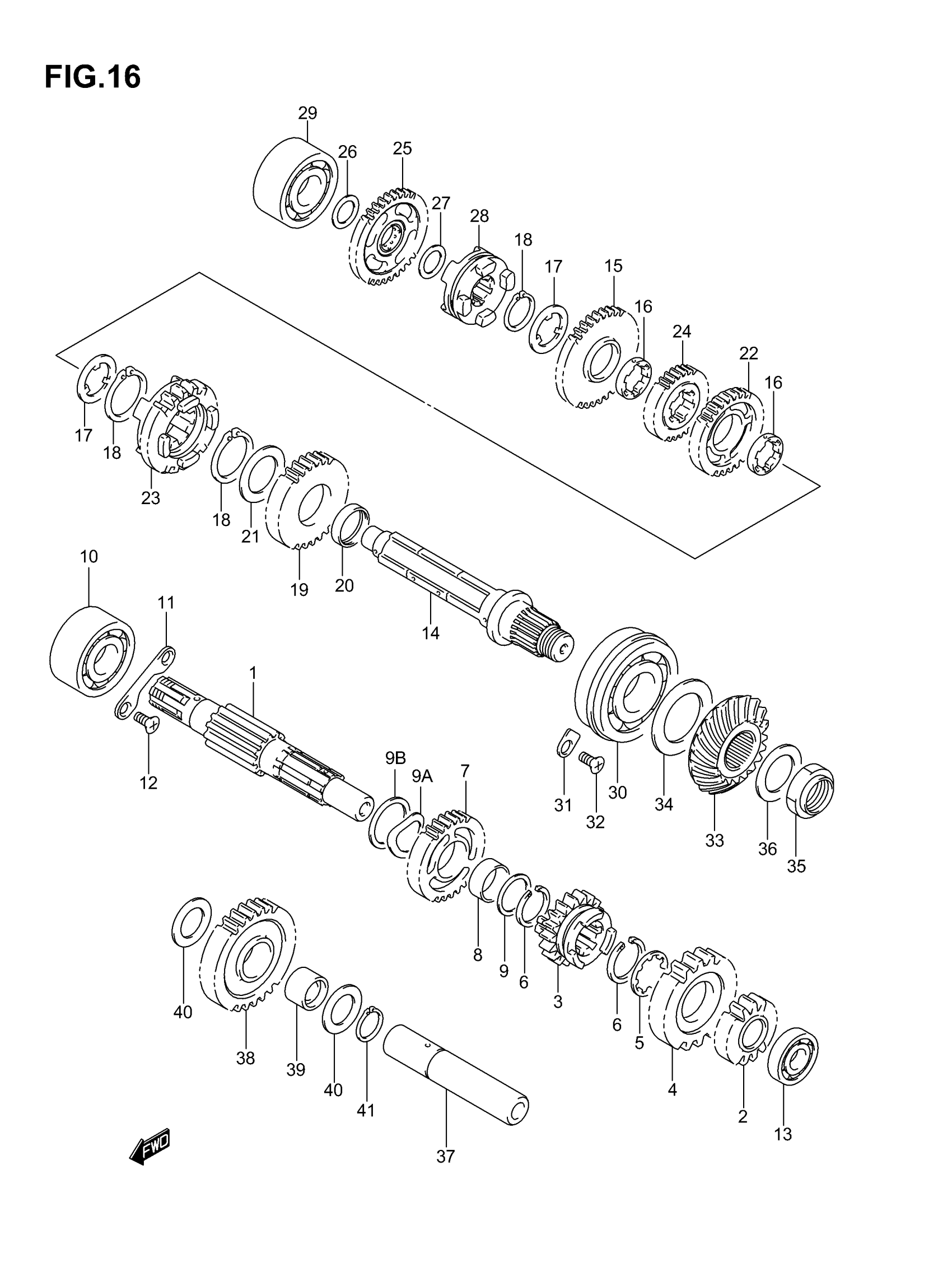

Suzuki LTF250 (2007) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24121-05G00

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$130.65

3

GEAR, 3RD DRIVE (NT:18)

24231-05G00

Unavailable

4

GEAR, 4TH DRIVE (NT:21)

24241-05G00

Unavailable

5

WASHER, 4TH DRIVE

09167-22011

$2.95

6

CIRCLIP, 4TH/5TH

09380-22006

$2.80

7

GEAR, 5TH DRIVE (NT:23)

24251-05G00

Unavailable

8

BUSH, 5TH DRIVE

24252-05G00

Unavailable

9

WASHER (22X28X1.0)

09181-22139

$3.78

9A

WASHER

09164-26002

$2.97

9B

WASHER, 5TH DR, RH

08211-22425

$6.35

10

BEARING, RH (22X50X14)

09262-22018

$27.83

11

RETAINER

24741-05G00

$4.38

12

SCREW (6X12)

09126-06011

$2.01

13

BEARING, LH (17X30X14)

09263-17026

$55.55

14

DRIVE SHAFT

24131-05G00

Unavailable

15

GEAR, 1ST DRIVEN (NT:37)

24311-05G00

Unavailable

16

BUSH, 1ST/3RD

24332-24510

$21.07

17

LOCK WASHER, 1ST/3RD

09167-25016

$4.03

18

SNAP RING

09380-25003

$2.80

19

GEAR, 2ND DRIVEN (NT:29)

24321-05G00

Unavailable

20

BUSH, 2ND DRIVEN

09300-25020

$18.32

21

WASHER, 2ND DRIVEN

08211-25351

$4.03

22

GEAR, 3RD DRIVEN (NT:25)

24331-19B01

$122.62

23

GEAR, 4TH DRIVEN (NT:23)

24341-05G00

$124.32

24

GEAR, 5TH DRIVEN (NT:21)

24351-05G00

Unavailable

25

GEAR, REVERSE DRIVEN (NT:34)

24570-05G00

Unavailable

26

WASHER, REVERSE RH | 17X28X1.0

09181-17195

$2.81

27

WASHER, REVERSE LH | 20X28X1.0

09181-20167

$2.64

28

DOG, REVERSE

24581-05G00

Unavailable

29

BEARING, RH (17X35X10)

09262-17026

$40.18

30

BEARING, LH (25X62X17)

09262-25073

$23.39

31

RETAINER, DRIVE SHAFT

24741-21A00

$2.80

32

SCREW (6X12)

09125-06110

$2.13

33

GEAR, SEC DRIVE BEVEL (NT:17)

24911-05G00

Unavailable

34

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/0.100/0.103/ 0.105/0.108/0.110/0.113/0.115/ 0.118/0.120/0.123/0.125/0.128/ 0.130

24935-03811

$150.17

35

NUT

09140-20012

$4.70

36

WASHER (20X32X1.0)

09181-20223

$2.80

37

SHAFT, REVERSE IDLE

24551-05G00

Unavailable

38

GEAR, REVERSE IDLE (NT:29)

24561-05G01

Unavailable

39

BUSH

24562-05G00

$22.08

40

WASHER (17X28X1.0)

09181-17195

$2.81

41

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.88
