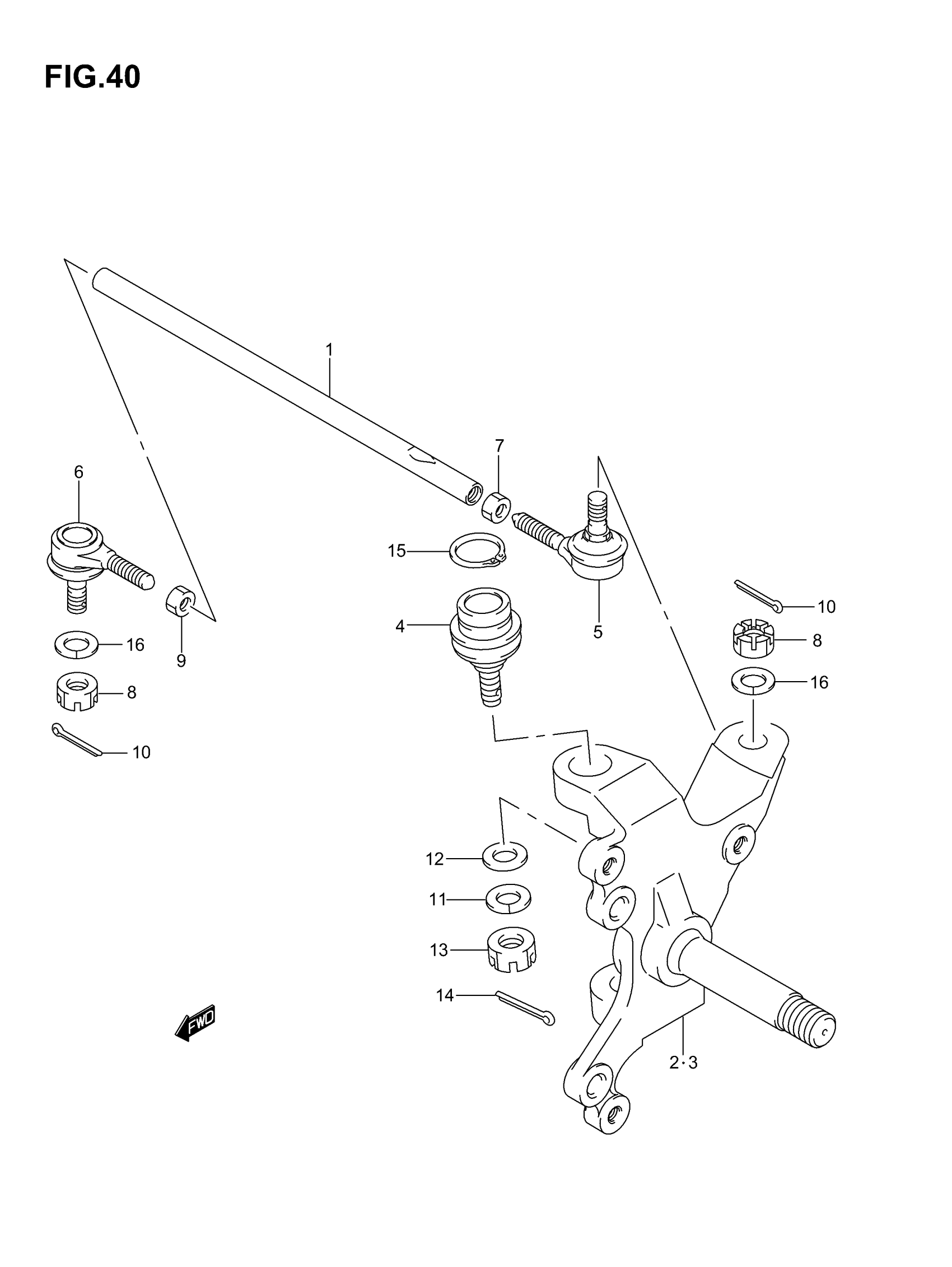

Suzuki LTF250 (2007) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-05G00

$29.78

2

KNUCKLE, STEERING RH

51230-05G20

$337.22

3

KNUCKLE, STEERING LH

51240-05G20

$337.22

4

END, KNUCKLE STEERING UPPER

51210-31G10

$60.19

5

ROD, END RH

51260-21G00

$62.58

6

ROD, END LH

51270-21G00

$88.25

7

NUT, TIE-ROD RH

51283-21G00

$4.70

8

NUT This part replaces 08314-40103.

08314-4010B

$2.50

9

NUT, TIE ROD LH

09140-10027

$1.54

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

11

WASHER, KNUCKLE END

09162-10010

$4.03

12

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.83

13

NUT This part replaces 08314-40103.

08314-4010B

$2.50

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

15

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.59

16

WASHER, ROD END

09162-10010

$4.03
