Description

Price

1

HUB, REAR WHEEL LH | Includes Item(s) 2

64110-05G00

$283.67

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.24

3

RIM, REAR WHEEL (9X8.0AT) (SILVER)

65310-05G00-YL8

$378.73

4

NUT

09159-10114

$4.67

5

WASHER

09164-18004

$3.38

6

NUT, HUB

09141-18010

$9.25

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

8

CAP,WHEEL CENTER

54725-09F01

$9.11

9

TIRE, REAR (AT22X10.9) This part replaces 65110-05G10.

65110-05G20

$236.75

10

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.10

11

PROTECTOR, FINAL CASE

61391-05G01

$52.60

12

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$6.72

13

BOLT, REAR

09111-06095

$2.13

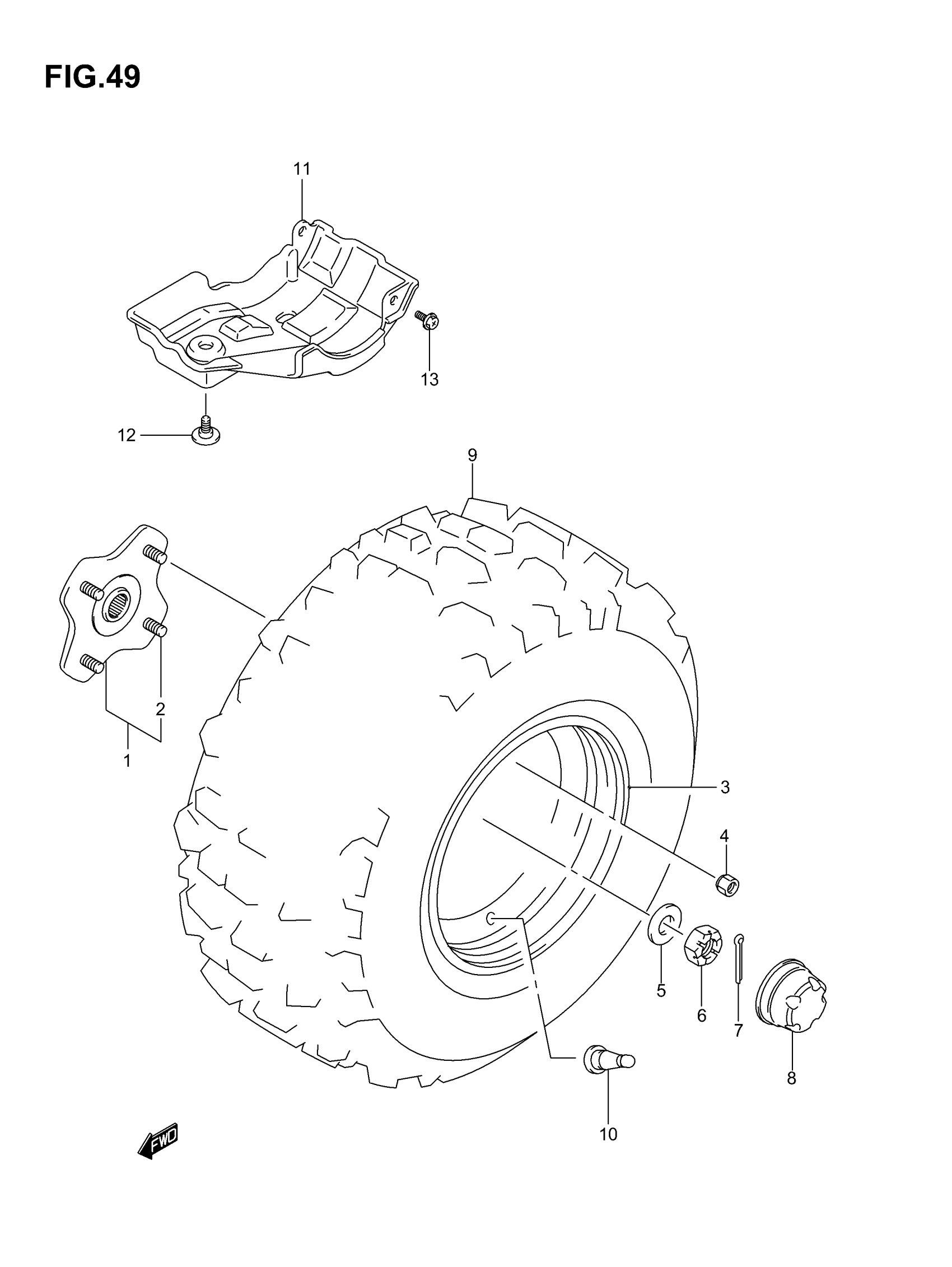

Suzuki LTF250 (2007) LEFT REAR WHEEL Diagram
