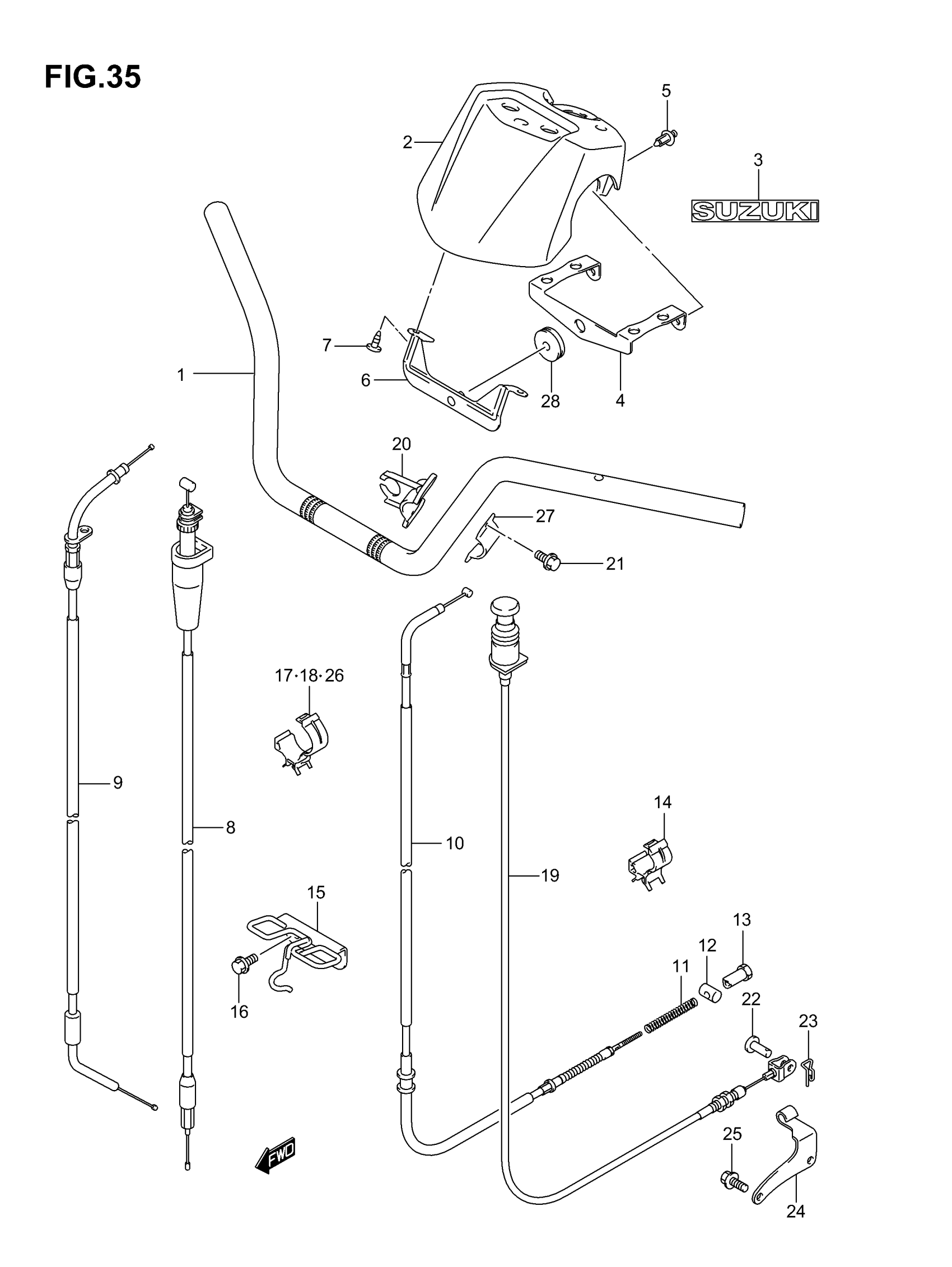

Suzuki LTF250 (2007) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR

56111-05G20

$298.63

2

COVER,STEERING | Includes Item(s) 3 This part replaces 56170-05G01-77S.

56170-05G02-77S

Unavailable

3

EMBLEM,SUZUKI This part replaces 68721-05D00-8YM.

68721-05D01-8YM

$10.52

4

BRACKET, COVER RH

56411-05G00

Unavailable

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

BRACKET, HEAD COVER

56180-05G00

$26.67

7

SCREW This part replaces 03541-05123.

03541-0512A

$1.37

8

CABLE ASSY, THROTTLE

58300-05G20

$35.11

9

CABLE,STARTER This part replaces 58410-05G00.

58410-05G01

$33.92

10

CABLE,RR BRAKE This part replaces 58810-05G10.

58810-05G12

$45.18

11

SPRING

09440-08042

$2.80

12

PIN

09209-13006

$4.73

13

NUT

09150-06015

$3.26

14

CLAMP

09403-10405

$3.42

15

GUIDE, CABLE

58620-05G00

Unavailable

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

CLAMP

09403-08407

Unavailable

18

CLAMP

09403-20403

$4.00

19

CABLE,REVERSE This part replaces 58840-05G01.

58840-05G02

$80.53

20

BRACKET, REVERSE CABLE

58910-05G00

Unavailable

21

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

22

PIN

09200-06004

$1.68

23

CLIP

09385-06012

$1.89

24

GUIDE REVERSE

58871-05G00

Unavailable

25

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

26

CLAMP

09403-20403

$4.00

27

BRACKET

58921-05G00

Unavailable

28

CUSHION, BRACKET

09320-08018

$2.80
