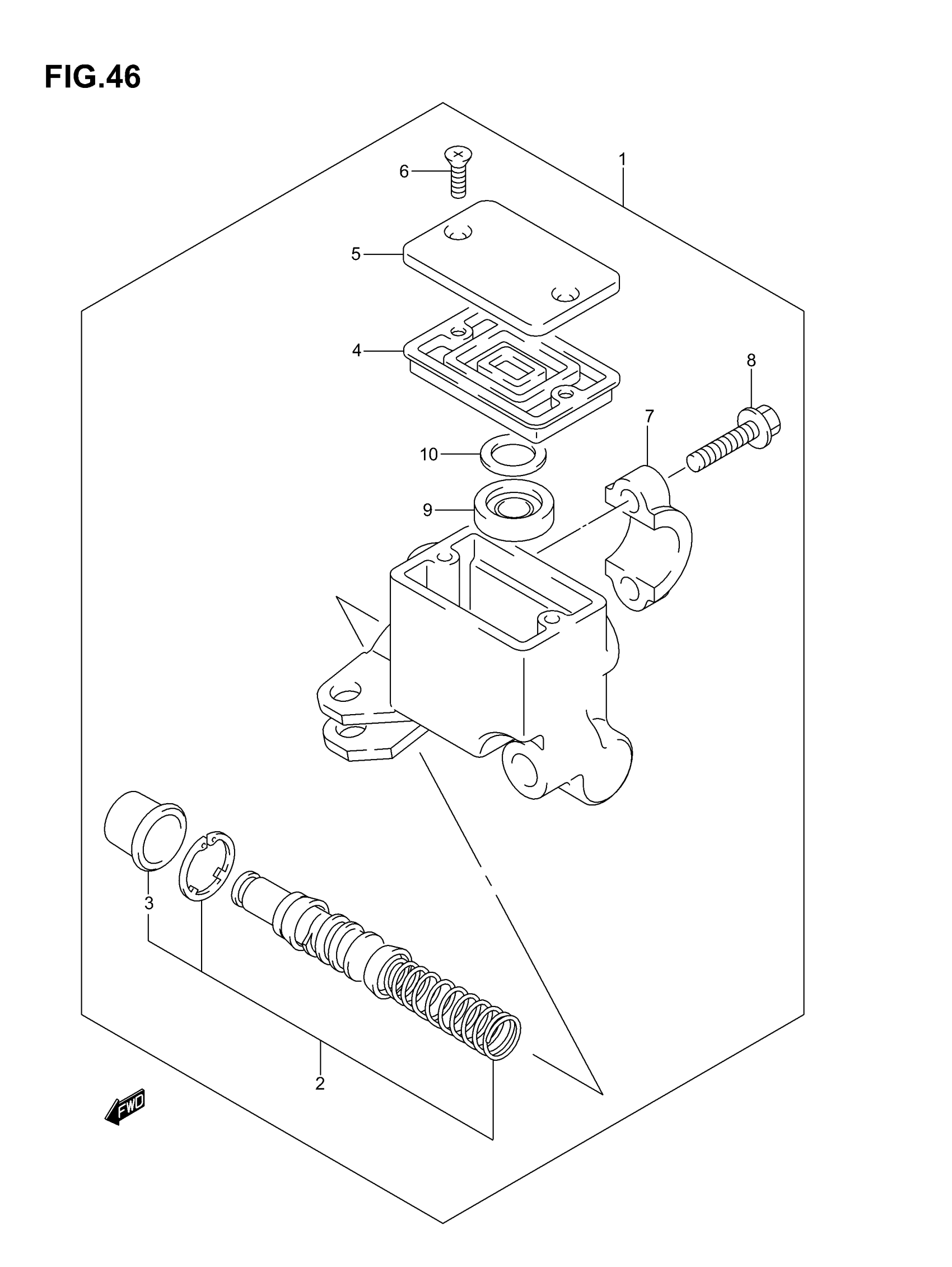

Suzuki LTF250 (2007) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-12D10

$329.22

2

PISTON/CUP SET

59600-45850

$37.16

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-44B00

$8.95

5

CAP

69669-24A01

$14.23

6

SCREW, CAP

69689-49300

$1.81

7

.HOLDER

59671-36500

$11.50

8

BOLT

59675-02FA0

$3.49

9

SEPARATOR

59748-15400

$8.83

10

PLATE

59749-15400

$2.80
