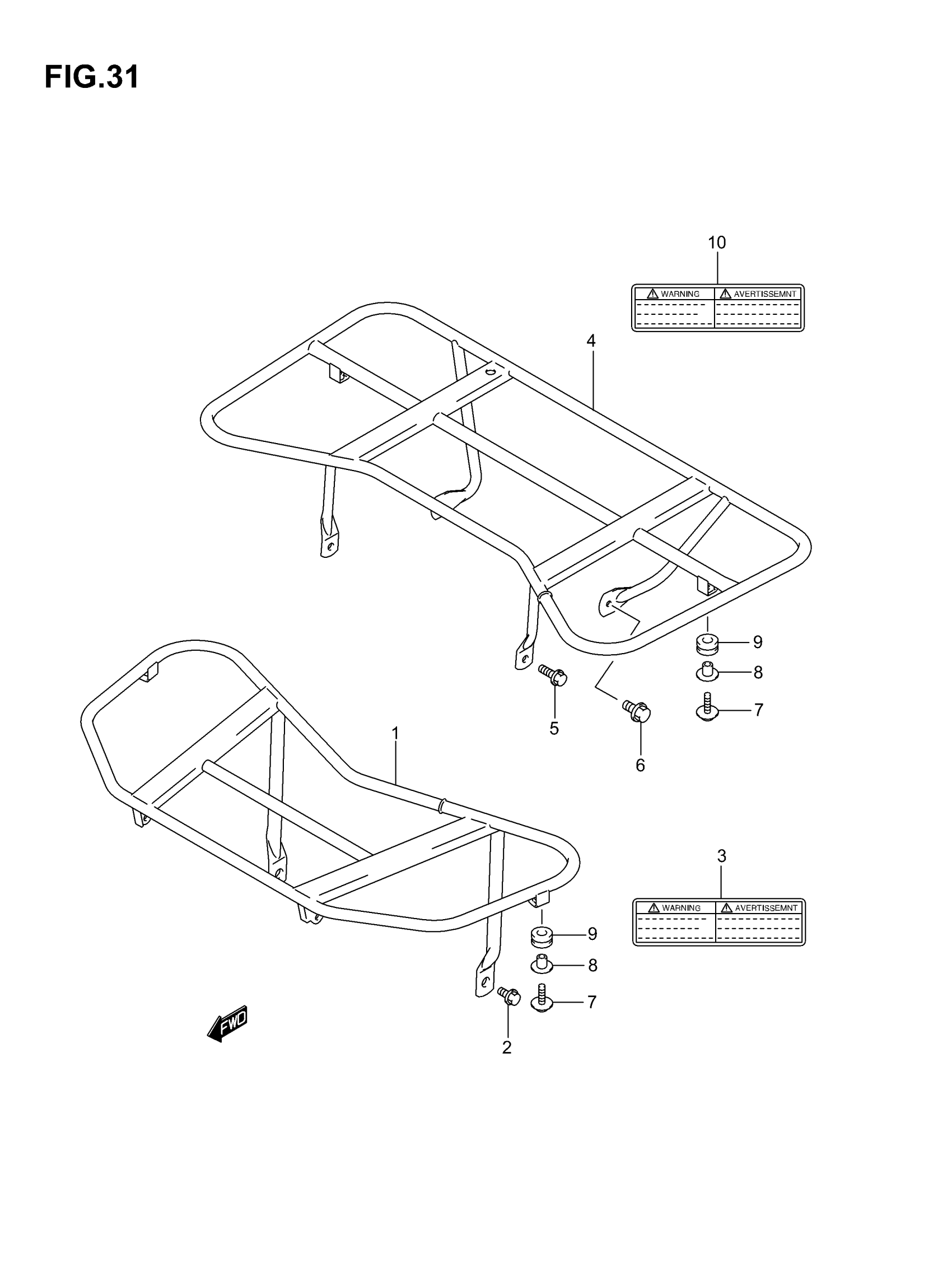

Suzuki LTF250 (2007) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT (BLACK)

46410-05G01-019

$413.45

2

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.38

3

LABEL, FRONT CARRIER | E33

68391-02C00

Unavailable

3

LABEL, FRONT CARRIER (FRENCH) | E28

68391-02C20

Unavailable

4

CARRIER, REAR (BLACK)

46310-05G21-019

$540.85

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.39

6

PLUG, OIL GALLERY | E33 This part replaces 01550-10163.

01550-1016A

$2.94

6

BOLT, PROP SHAFT REAR | E28 This part replaces 01550-10203.

01550-1020A

$2.84

7

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

8

SPACER

09169-06074

$7.70

9

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$3.89

10

LABEL,FRONT CAR | E33 This part replaces 68381-19B00.

68381-19B01

$6.12

10

LABEL,WARNING F | E28 This part replaces 68381-19B20.

68381-19B21

Unavailable
