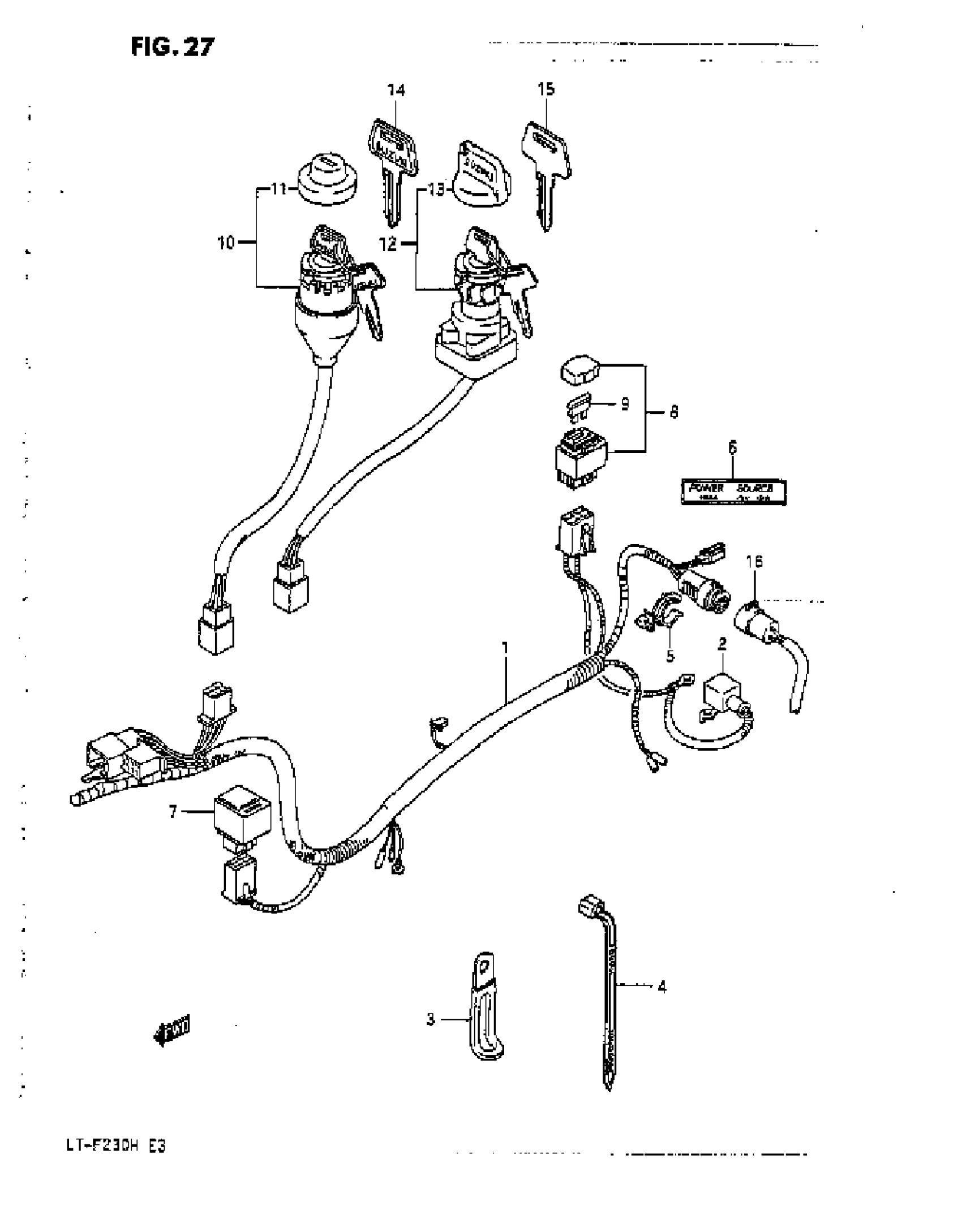

Suzuki LTF230 (1987) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-18B00.

36610-18B10

Unavailable

2

CAP, BATTERY PLUS This part replaces 33624-24500.

33624-35B00

Unavailable

3

CLAMP This part replaces 09404-06402.

09404-06039

Unavailable

4

CLAMP (L:95)

09407-11401

Unavailable

4

CLAMP (L:125)

09407-14403

Unavailable

4

CLAMP (L:185)

09407-18402

Unavailable

5

CLAMP

09403-16402

Unavailable

6

LABEL, POWER SOURCE

38852-18B00

Unavailable

7

RELAY ASSY, SIDE STAND This part replaces 38730-24500.

38740-24X50

Unavailable

8

BOX ASS'Y, FUSE

36740-04701

$25.08

9

FUSE (15A)

09481-15101

$2.77

10

SWITCH ASSY,IGN | MODEL G This part replaces 37110-24501.

37110-24511

Unavailable

11

CAP

37921-24500

Unavailable

12

SWITCH ASSY,IGN | MODEL H This part replaces 37110-24510.

37110-24511

Unavailable

13

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

Unavailable

14

KEY, BLANK | OPT This part replaces 37146-24500.

37146-03A00

Unavailable

14

KEY, BLANK | OPT This part replaces 37146-24510.

37146-03A10

Unavailable

15

KEY,BLANK (TYPE:C) | OPT

37146-19B00

Unavailable

15

KEY,BLANK (TYPE:D) | OPT

37146-19B10

Unavailable

16

PLUG ASS'Y, POWER SOURCE | OPT

39602-18A00

Unavailable
