Description

Price

1

CHAIN, CAM (102LE)

12760-42A00

$112.88

2

GUIDE,CAM CHAIN This part replaces 12771-18A00.

12771-18A01

$26.66

3

TENSIONER,CAM This part replaces 12811-18A00.

12811-18A02

$30.93

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY,T This part replaces 12830-32451.

12830-12FB0

$62.57

7

SPRING

09440-11018

$4.02

8

SCREW

12838-45001

$9.50

9

WASHER This part replaces 08322-11088.

08322-01087

$1.86

10

NUT This part replaces 08310-12088.

08310-00087

$1.83

11

.O RING (D:1.9,ID:5.7)

09280-06005

$1.45

12

.GASKET, TENSIONER ADJUSTER This part replaces 12837-32400.

12837-32410

$2.75

13

BOLT This part replaces 01107-06208.

01500-06207

$1.99

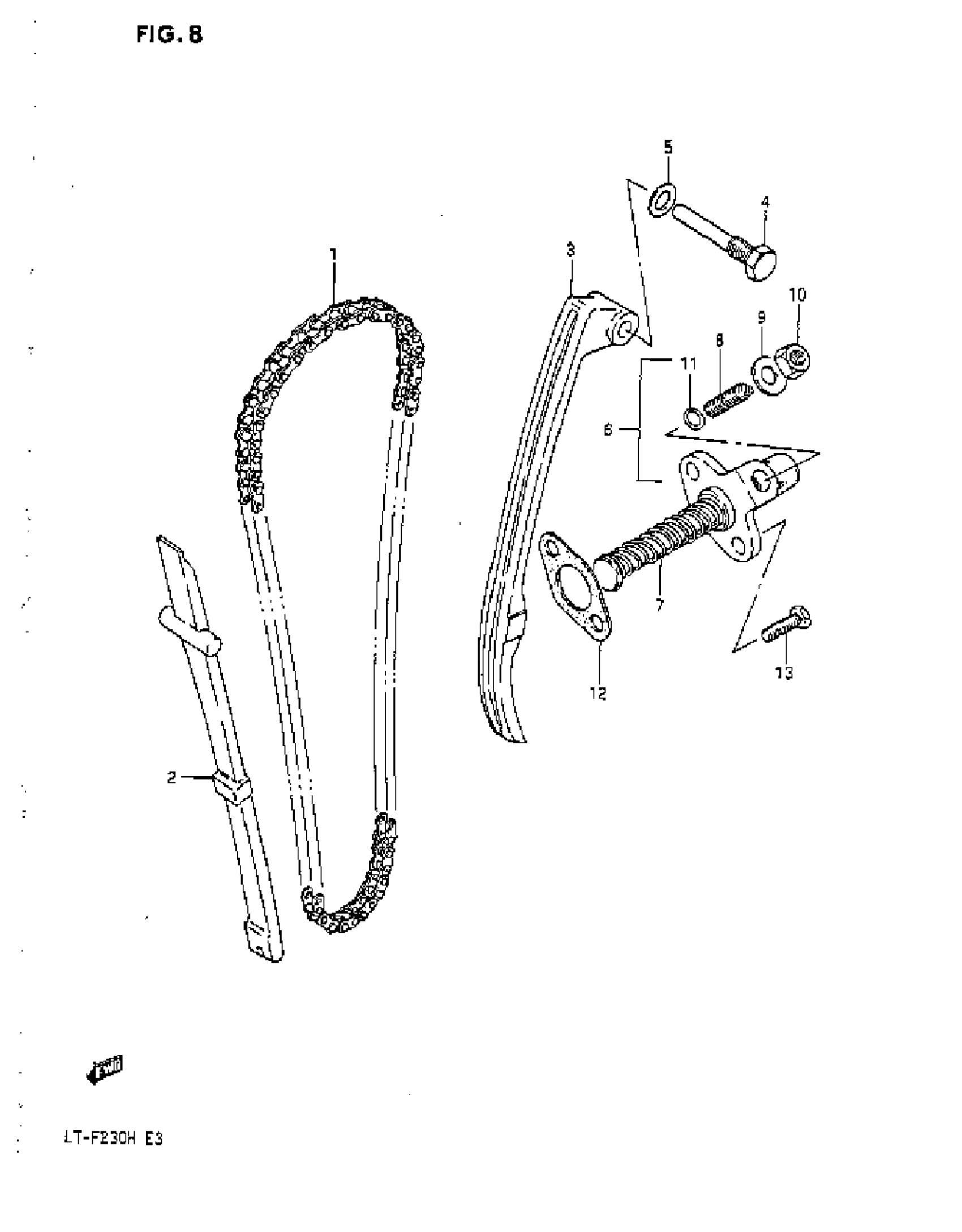

Suzuki LTF230 (1987) CAM CHAIN Diagram
