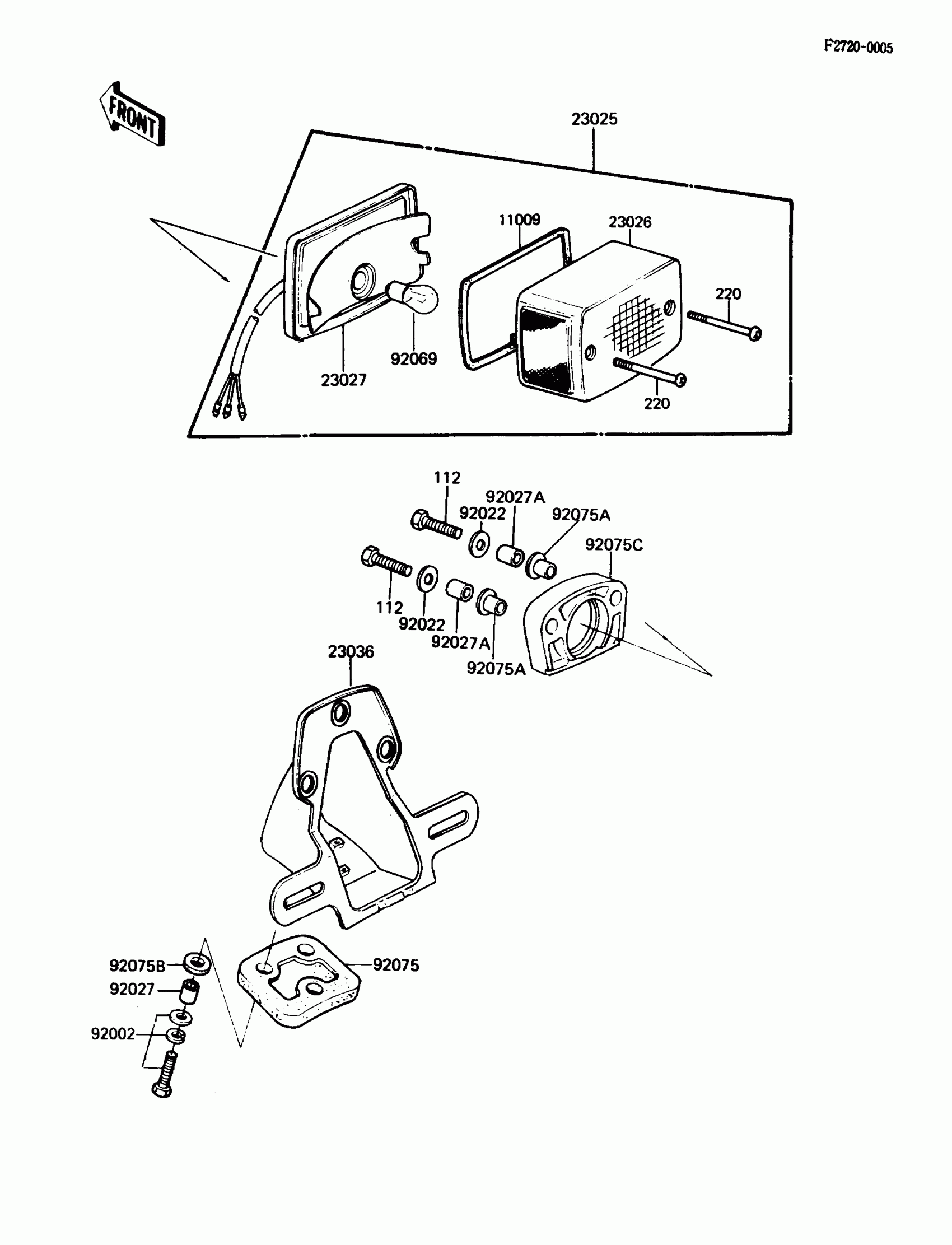

Kawasaki LTD Taillight(s) Diagram

Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1078

$7.44

23025

LAMP-TAIL

23025-1033

Unavailable

23026

LENS,TAIL LAMP

23026-1003

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1020

$96.26

23036

BRACKET-TAIL LAMP

23036-1024

$90.57

92002

BOLT,6X25

92002-1137

$3.35

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92027A

COLLAR,6.1X8X24.2

92027-1821

$3.61

92069

BULB,12V 27/8W

92069-059

$6.19

92075

DAMPER,TAIL LAMP

35039-004

Unavailable

92075A

DAMPER

92075-1162

Unavailable

92075B

DAMPER,FENDER

92075-121

$3.49

92075C

DAMPER,TAIL LAMP

92075-1251

$23.08

112

BOLT-UPSET

112B0635

Unavailable

220

SCREW-PAN-CROS

220B0440

Unavailable
