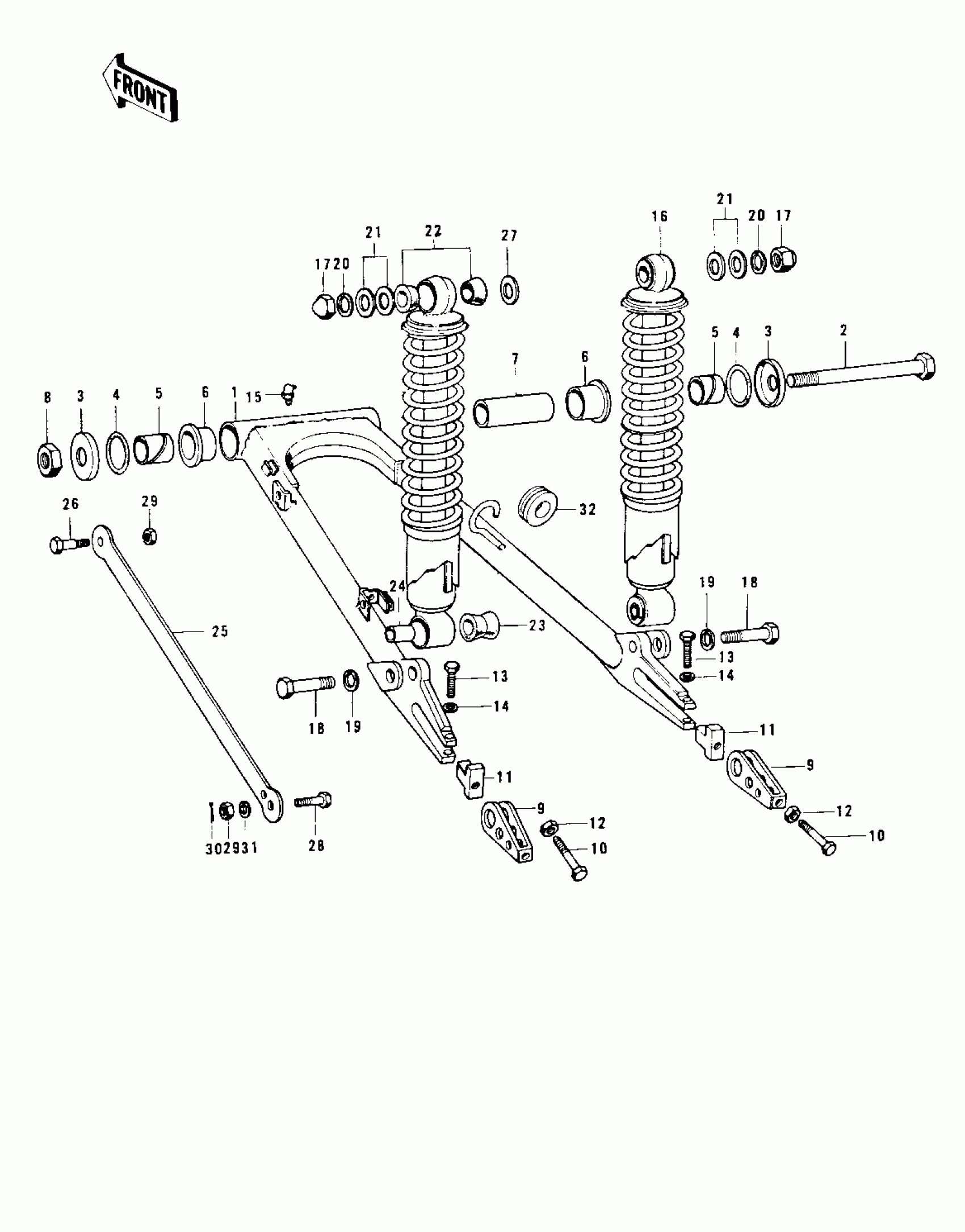

Kawasaki LTD SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

1

SWING ARM

33001-090

$207.58

2

SHAFT-SWING ARM

33032-036

$65.61

3

CAP,SWING ARM

33035-007

Unavailable

4

"0" RING,30MM

671B2530

$3.85

5

SLEEVE SWING ARM

33034-009

Unavailable

6

BUSHING-SWING ARM

33033-009

$103.86

7

COLLAR,SWING ARM L=141.5MM

33036-005

Unavailable

8

NUT-SELF LOCKING

92019-012

$24.14

9

ADJUSTER-CHAIN

33040-066

$31.51

10

BOLT,10X50

92001-143

$18.44

11

STOPPER,CHAIN ADJUSTER

33044-001

$40.78

12

NUT-HEX-FINE,10MM

315B1000

Unavailable

13

BOLT

92001-1578

$6.54

14

WASHER SPRING 8MM

461F0800

Unavailable

15

GREASE NIPPLE

92005-002

Unavailable

16

SHOCK ABSBR RR

45014-116

$119.95

17

NUT,CAP,12MM

92020-014

$7.52

18

BOLT HEX HEAD 10X35

113N1035

Unavailable

19

WASHER SPRING 10MM

461F1000

Unavailable

20

WASHER-SPRING,12MM

461F1200

Unavailable

21

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

22

BUSH SHCK ABS RUBBER

45017-001

$10.89

23

BUSHING,SHCK ABSORBER

45017-011

$23.47

24

COLLAR,SHOCKABSORBER

45016-003

$15.05

25

TORQUE LINK

43007-047

$28.75

26

BOLT,FR TORQUE LINK

92003-225

Unavailable

27

WASHER,15.3X24X1

92022-326

$2.99

28

BOLT,RR TORQUE LINK

92003-197

Unavailable

29

NUT,12MM

42045-021

Unavailable

30

PIN-COTTER,3.0X25

550D3025

Unavailable

31

WASHER SPRING 10MM

461F1000

Unavailable

32

GROMMET,HOSE CLAMP

43064-007

$4.18
