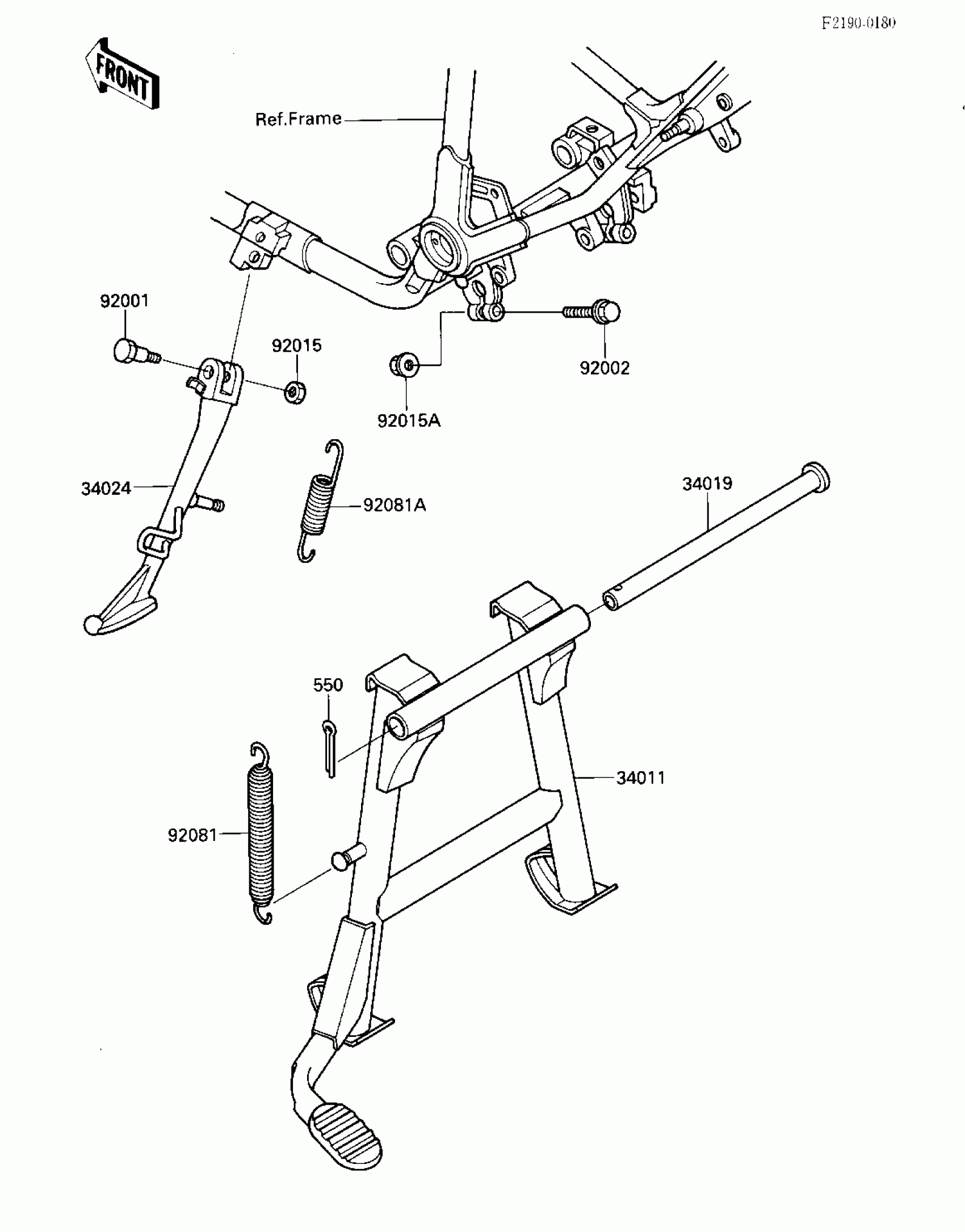

Kawasaki LTD STANDS Diagram

#

Description

Price

1

BOLT

92001-1578

$6.81

2

NUT,8MM

311B0800

Unavailable

3

STAND-MAIN

34011-1003

$130.84

4

SHAFT-STAND,CNT

34019-015

$16.32

5

SPRING,STAND,CNT

34023-016

$15.59

6

WASHER PLAIN 8MM

410B0800

Unavailable

7

PIN-COTTER,3.0X30

550D3030

$2.08

8

STAND-SIDE

34024-1103

$75.07

9

SPRING,STAND

34025-005

$6.03

10

BOLT,SIDE STAND

92003-079

$9.76

11

NUT,LOCK,10MM

92019-021

$4.83
