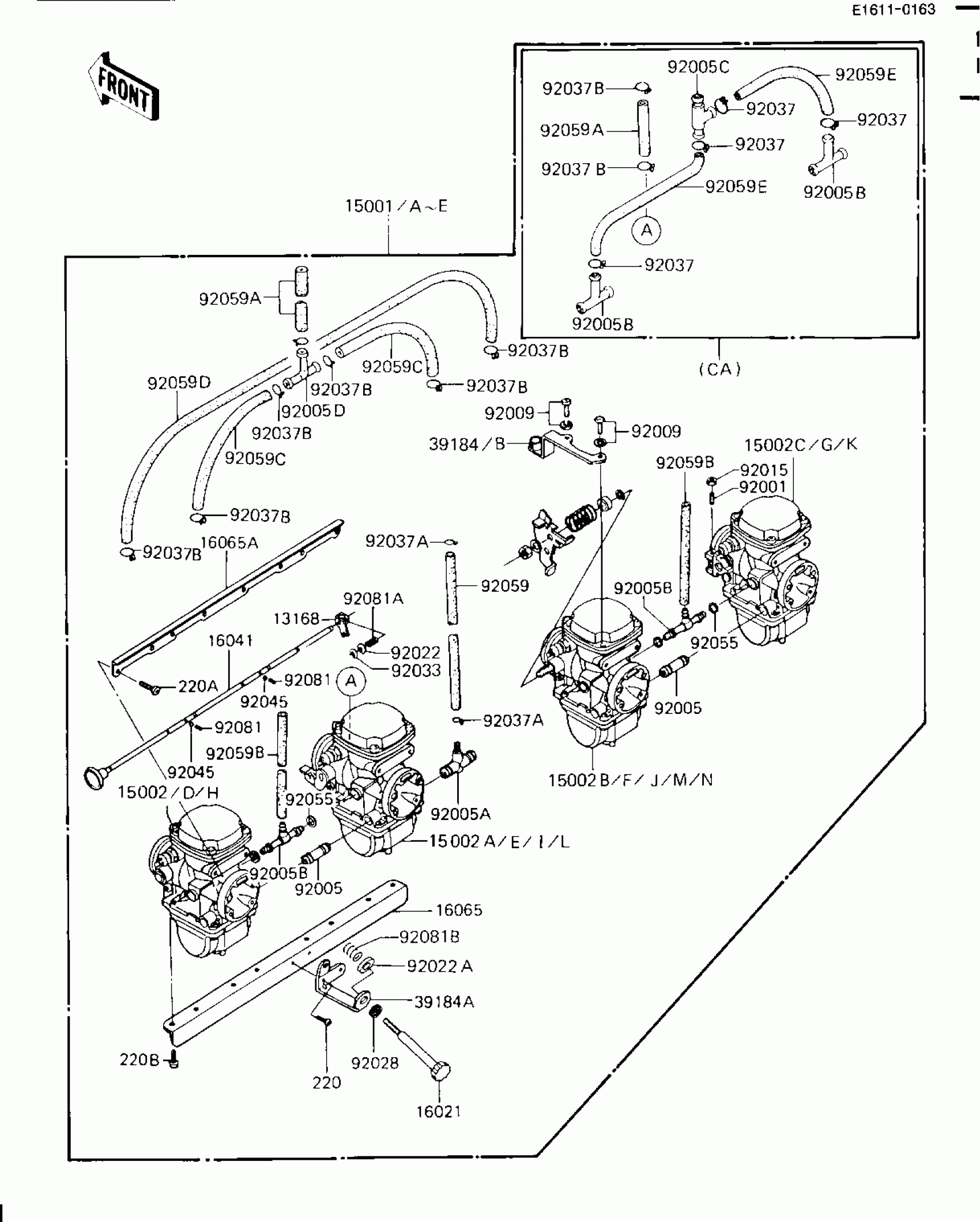

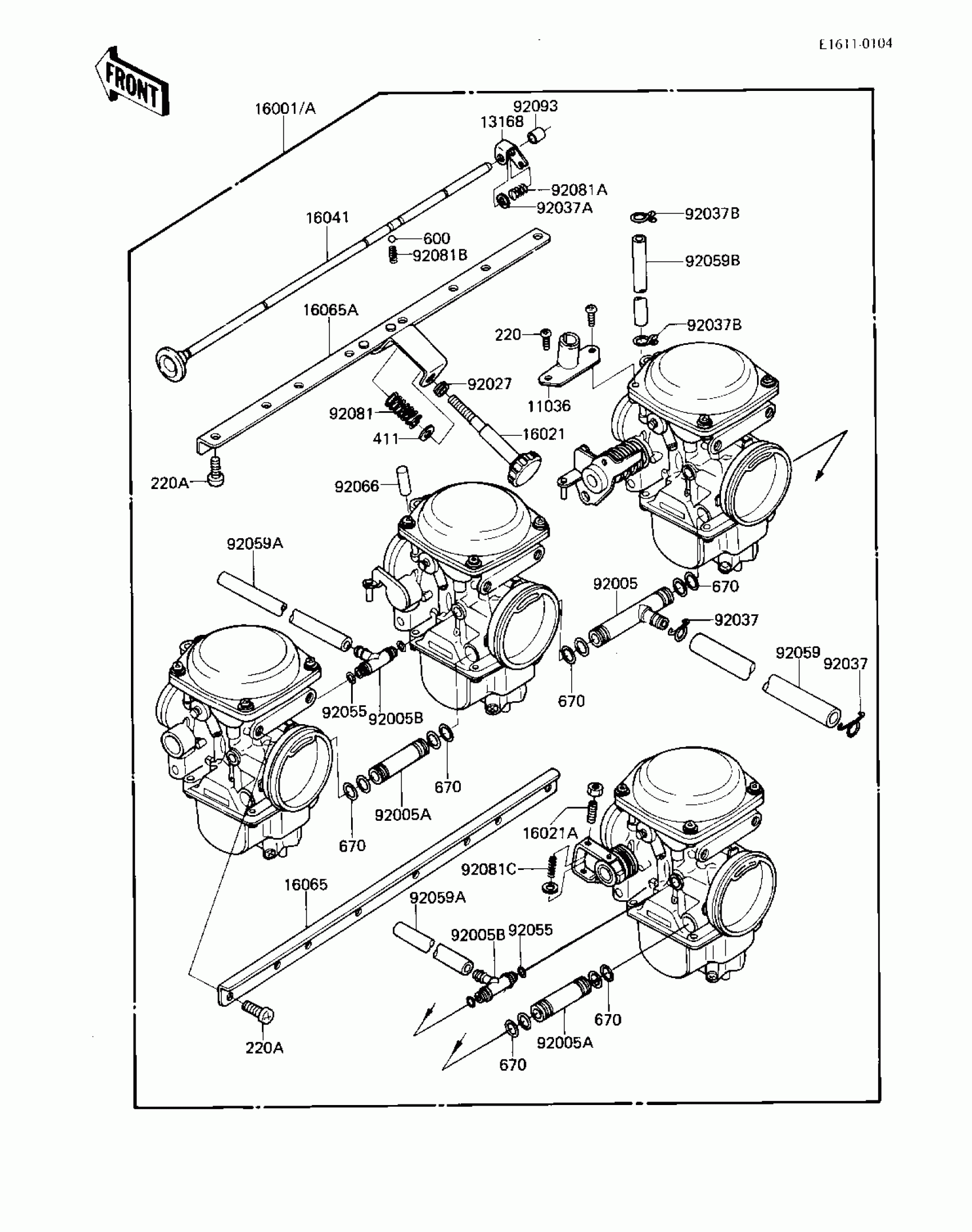

Find the part on the Carburetor Assy diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki LTD Shaft Carburetor Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,THROTTLE CA

11036-1760

1
Out of stock

13168

LEVER

13168-1110

1
Out of stock

16001

CARBURETOR,AP

16001-1791

1

$971.29

In stock

16001A

CARBURETOR (Canada)

16001-1792

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1038

1
Out of stock

16021A

SCREW-THROTTLE STOP

16021-1043

1
Out of stock

16041

1

$73.82

In stock

16065

HOLDER-CARBURETOR

16065-1057

1

$45.48

In stock

16065A

HOLDER-CARBURETOR

16065-1058

1

$29.02

In stock

92005

"T"JOINT,FUEL

92005-1020

1
Out of stock

92005A

JOINT,FUEL

92005-1021

1
Out of stock

92005B

FITTING

92005-1058

1
Out of stock

92027

COLLAR,STOP SCREW

92027-1432

1
Out of stock

92037

CLAMP,FUEL HOSE

92037-1158

1

$8.61

In stock

92037A

CLAMP

92037-1302

1
Out of stock

92037B

CLAMP,TUBE

92037-1378

1
Out of stock

92055

RING-O

92055-1134

1

$8.46

In stock

92059

TUBE

92059-1214

1
Out of stock

92059A

TUBE

92059-1215

1
Out of stock

92059B

TUBE,5X9X220

92059-1260

1
Out of stock

92066

PLUG,12X25

92068-006

1

$3.39

In stock

92066

PLUG,12X25

92068-006

1

$3.39

In stock

92081

SPRING,ADJUST SCREW

92081-1193

1
Out of stock

92081A

SPRING

92081-1439

1
Out of stock

92081B

SPRING,SHAFT STOP

92081-1440

1
Out of stock

92081C

SPRING

92081-1442

1
Out of stock

92093

SEAL

92093-1074

1

$11.66

In stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

220A

1

$1.32

In stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

600

BALL,STEEL,1/8"

600A0400

1

$1.66

In stock

670

O RING,7MM

670B1507

1

$1.14

In stock
