Description

Price

41068

AXLE,RR,L=300

41068-1087

$112.76

41073

WHEEL-ASSY

41073-1090

$670.09

42033

COUPLING-ASSY,RR HUB

42033-1024

$348.68

42036

SPROCKET-HUB,39T

42041-1059

$115.22

42041

SPROCKET-HUB,39T

42041-1059

$115.22

92001

BOLT,10X41

92001-161

Unavailable

92015

NUT,10MM

42045-005

$6.34

92015A

NUT,CASTLE,18MM

42045-018

$7.31

92022

WASHER,LOCK

92022-1212

$5.11

92022A

WASHER,20.3X34X4.5

92022-248

Unavailable

92027

COLLAR,L=89.5

92027-1286

$39.49

92027A

COLLAR,20X40X16.5

92027-1287

$35.93

92027B

COLLAR,L=31

92027-1288

$38.59

92033

RING-SNAP,52MM

92033-1043

$6.41

92033A

RING-SNAP,62MM

92033-1044

$8.95

92049

SEAL-OIL,28X52X5

92049-1061

$18.58

92049A

SEAL-OIL,AJN40627

92050-027

$19.42

92057

DR CHAIN 630X96

92057-1053

$497.38

92075

DAMPER,RR HUB SHOCK,"1000"

42014-033

$114.22

550

PIN-COTTER,4.0X35

550D4035

$1.81

601

BALL BEARING,#6206

601B6206

$20.68

601A

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

671

O RING,65MM

671B2565

$7.04

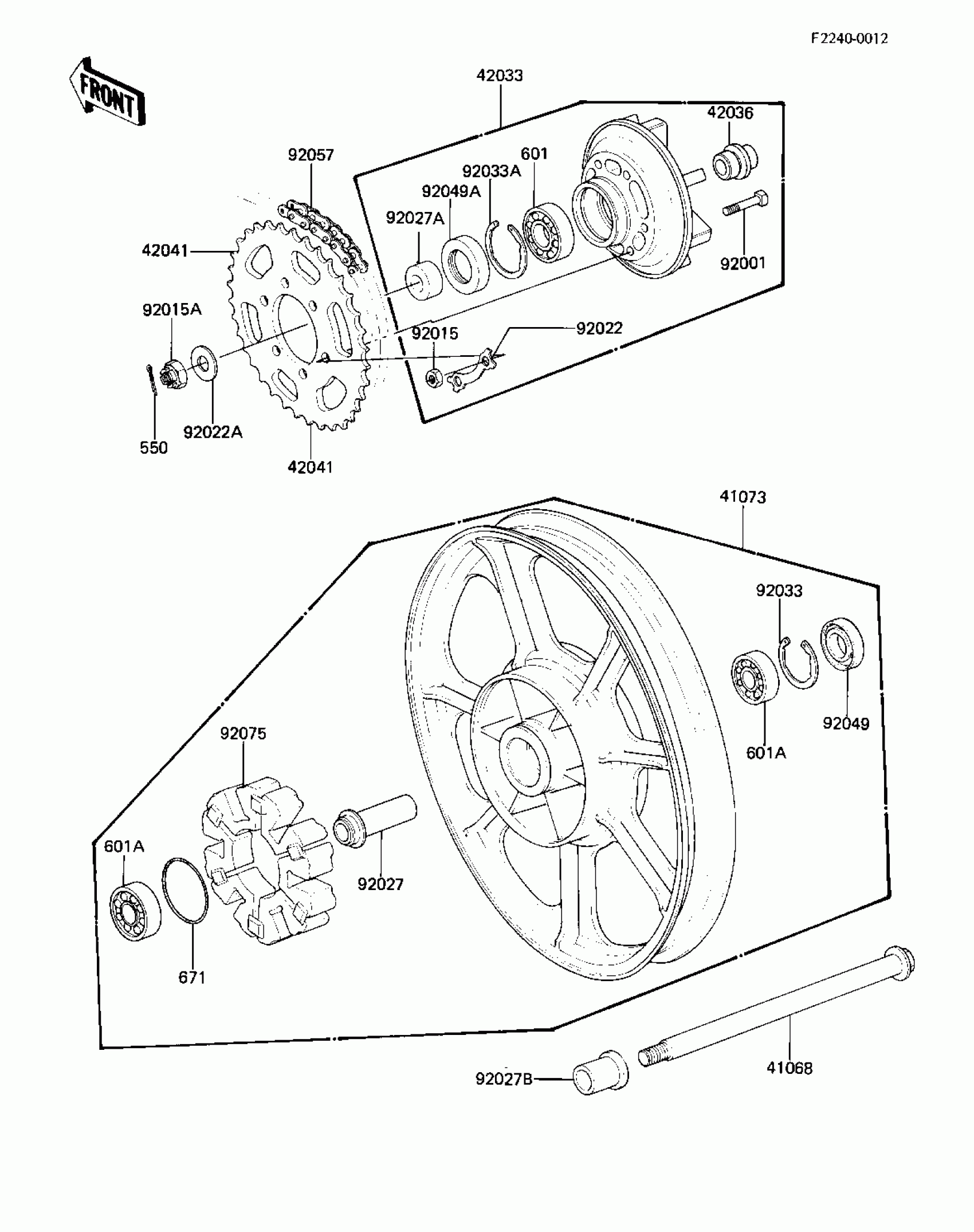

Kawasaki LTD REAR WHEEL/HUB/CHAIN Diagram

BOLT,10X41

WASHER,20.3X34X4.5

BEARING-BALL,#6304ZZC3
