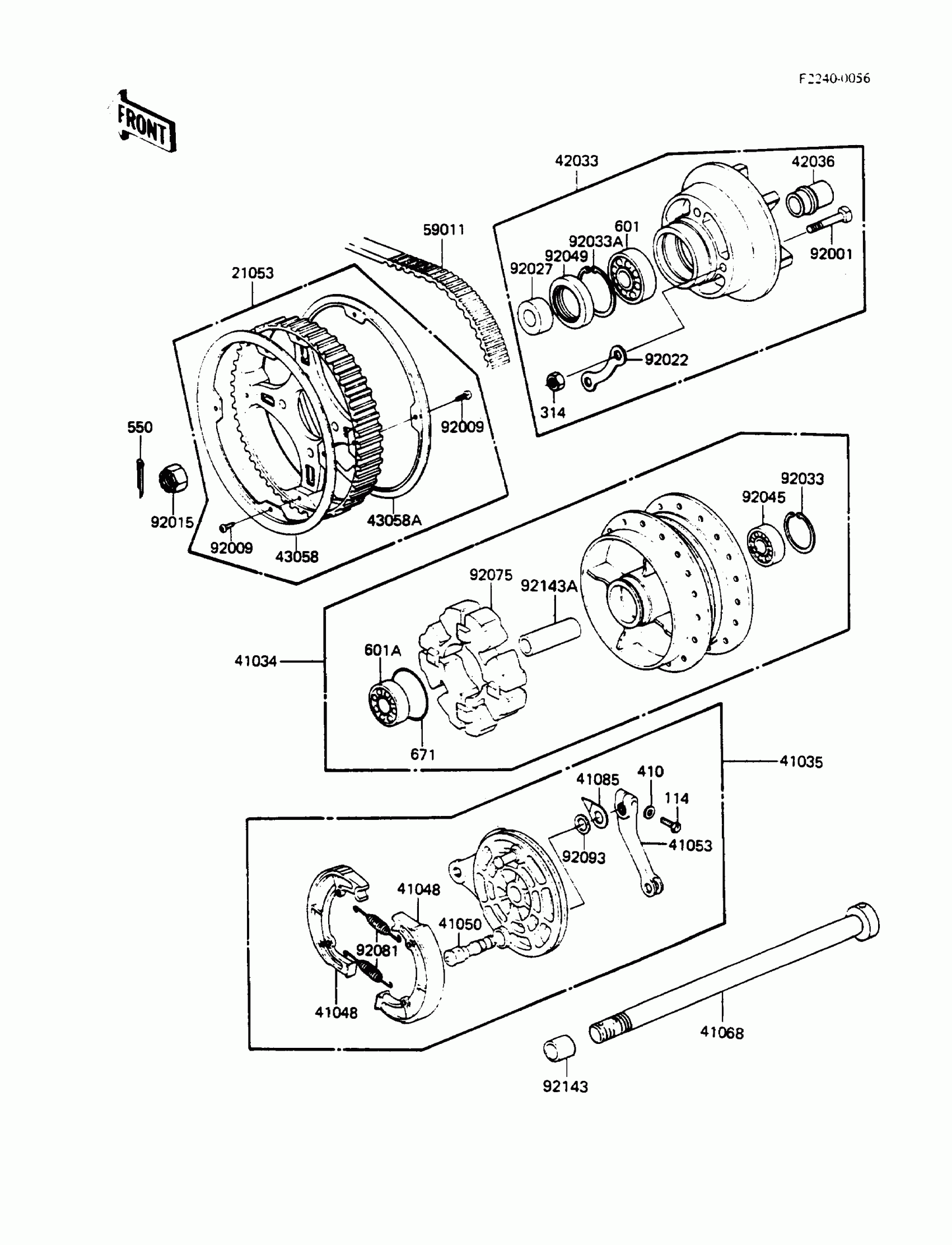

Kawasaki LTD Rear Wheel/Chain Diagram

#

Description
Price

21053

SPROCKET-ASSY,REAR HUB,50T

21053-1007

$326.38

41034

DRUM-ASSY,REAR BRAKE

41034-1159

$429.30

41035

PANEL-ASSY-BRAKE,RR

41035-1089

$378.74

41048

SHOE-BRAKE

41048-020

$22.11

41050

CAM-BRAKE

41050-1001

$36.94

41053

LEVER-BRAKE CAM

41053-1001

$36.34

41068

AXLE,RR

41068-1083

$75.79

41085

INDICATOR,BRAKE SHOE

41085-004

Unavailable

42033

COUPLING-ASSY,REAR HUB

42033-1044

$132.03

42036

SLEEVE,RR HUB COUPLING

42036-1002

Unavailable

43058

RING,REAR HUB SPROCKET,OUTER

43058-1016

$66.25

43058A

RING,REAR HUB SPROCKET,INNER

43058-1024

$66.25

59011

BELT,DRIVE,121T

59011-1002

$500.61

92001

BOLT,HUB SPROCKET,10X55

92003-156

Unavailable

92009

SCREW,5X10

92009-1167

Unavailable

92015

NUT,16MM

92015-055

$11.03

92022

WASHER,SPROCKET LOCK

92088-005

$4.88

92027

COLLAR,REAR AXLE,LH,L=23.5

92027-1368

$33.59

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,52MM

92033-1043

$6.15

92045

BEARING-BALL,#6303NS

92045-034

$21.35

92049

SEAL-OIL,TWC35527

92052-006

Unavailable

92075

DAMPER,SHOCK,RR HUB

92075-1008

Unavailable

92081

SPRING,BRAKE SHOE

42020-004

$6.48

92093

SEAL,BRAKE CAM

41051-003

$3.25

92143

COLLAR

92027-1487

$9.73

92143A

COLLAR,17.2X25X61

92143-1101

Unavailable

114

BOLT HEX HEAD 8X28

114G0828

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6205C3

601B6205

$14.76

601A

BEARING-BALL,#6303C3

601B6303

$6.32

671

O RING,60MM

671B2560

$5.13
