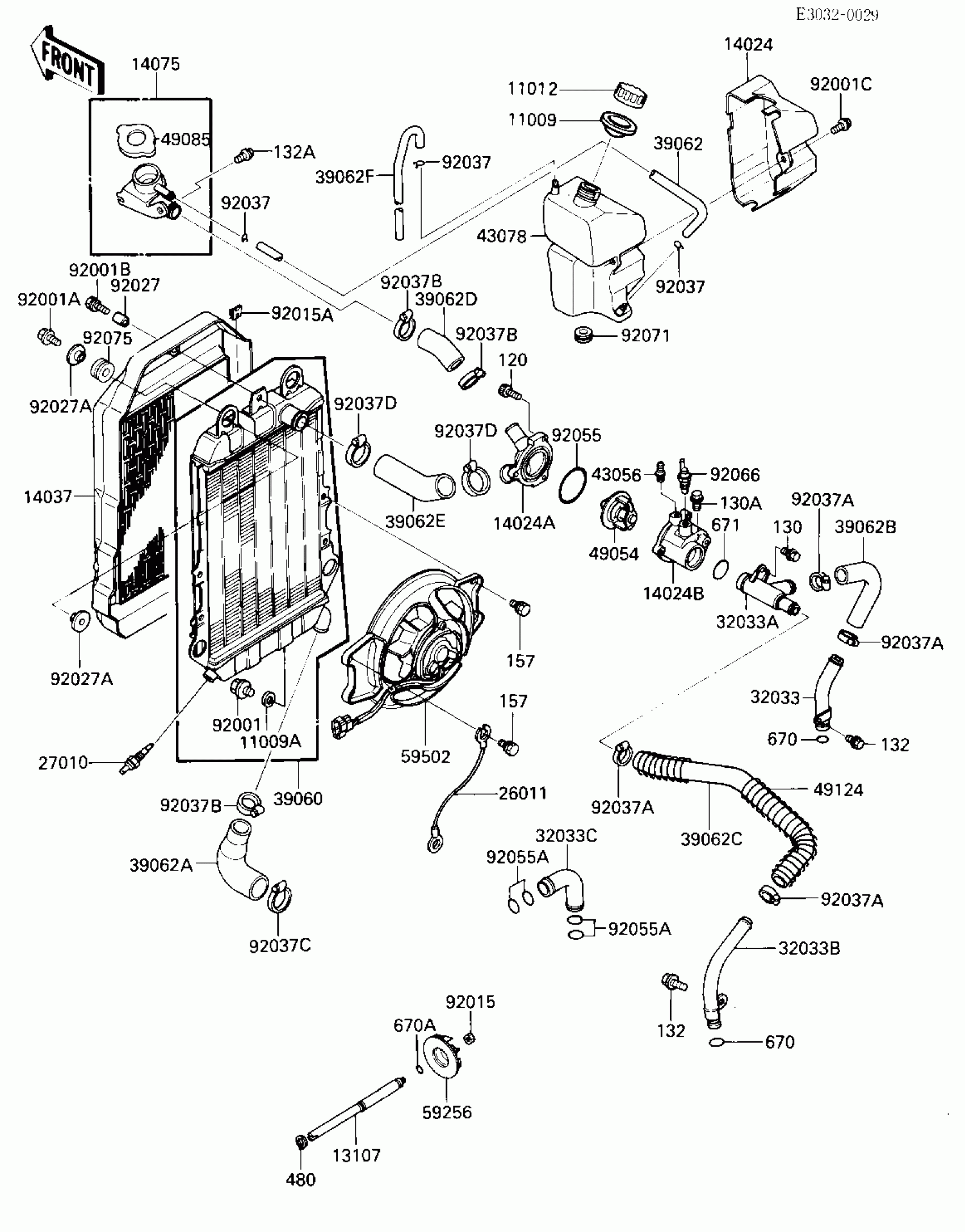

Kawasaki LTD RADIATOR/FAN/WATER PUMP Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11009A

GASKET,DRAIN BOLT

11009-1152

$7.44

11012

CAP

11012-1084

$1.31

13107

SHAFT,IMPELLER

13107-1155

Unavailable

14024

COVER,RESORVOIR

14025-1962

$54.08

14024A

COVER,THERMOSTAT,FR

14025-1972

$42.17

14024B

COVER,THERMOSTAT,RR

14025-1973

Unavailable

14037

SCREEN,RADIATOR

14037-1066

$98.73

14075

CAP-ASSY,RADIATOR

14075-1057

$195.68

26011

WIRE-LEAD

26011-1326

$31.40

27010

SWITCH,FAN

27010-1167

$131.65

32033

PIPE

32033-1484

Unavailable

32033A

PIPE

32033-1486

Unavailable

32033B

PIPE

32033-1738

$46.93

32033C

UNAVAILABLE IN PRICE BOOK

32033-4800

Unavailable

39060

RADIATOR

39060-1065

$614.82

39062

HOSE-COOLING,5.5X10.5X1500

39062-1144

$38.54

39062A

HOSE-COOLING

39062-1100

$30.63

39062B

HOSE-COOLING

39062-1101

Unavailable

39062C

HOSE-COOLING

39062-1102

$40.32

39062D

HOSE-COOLING

39062-1103

$19.51

39062E

HOSE-COOLING

39062-1104

$34.01

39062F

HOSE-COOLING

39062-1122

$24.12

43056

BREATHER

43056-003

$22.74

43078

RESERVOIR

43078-1057

Unavailable

49054

THERMOSTAT

49054-1051

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1053

$33.98

49124

SPRING-TUBE GUARD

49124-1051

$19.97

59256

IMPELLER

59256-1058

$47.04

59502

FAN-ASSY

59502-1059

$846.87

92001

BOLT,RADIATOR DRAIN

92002-1682

$19.01

92001A

BOLT,FLANGED,6X22

92001-1352

$3.43

92001B

BOLT,6X25

92001-1852

$3.49

92001C

BOLT,W/P,6X16

92001-1860

$3.85

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT

92015-1487

$3.80

92027

COLLAR,6.8X10X11.5

92027-1210

$8.16

92027A

COLLAR

92027-1906

$7.49

92037

CLAMP,TUBE

92037-147

$5.84

92037A

CLAMP,COOLING HOSE

92170-1032

$24.03

92037B

CLAMP,COOLING HOSE

92170-1034

$19.44

92037C

CLAMP

92170-1036

$8.51

92037D

CLAMP,COOLING HOSE

92037-1985

$6.51

92055

RING-O,53.5X2.6

92055-112

$5.25

92055A

RING-O,18.8X2.4

92055-1308

$4.37

92066

PLUG,SENSOR WATER

92066-1183

$60.95

92071

GROMMET

92071-1115

$4.34

92075

DAMPER

92075-1665

$6.83

120

BOLT-SOCKET,6X20

120P0620

Unavailable

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED,6X16

130C0616

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL

132J0614

Unavailable

157

BOLT-WSP

157J0616

$1.19

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.67

670

O RING,14MM

670B2014

$1.08

670A

O RING,9MM

670D1509

$3.72

671

O RING,25MM

671B2525

$3.97
