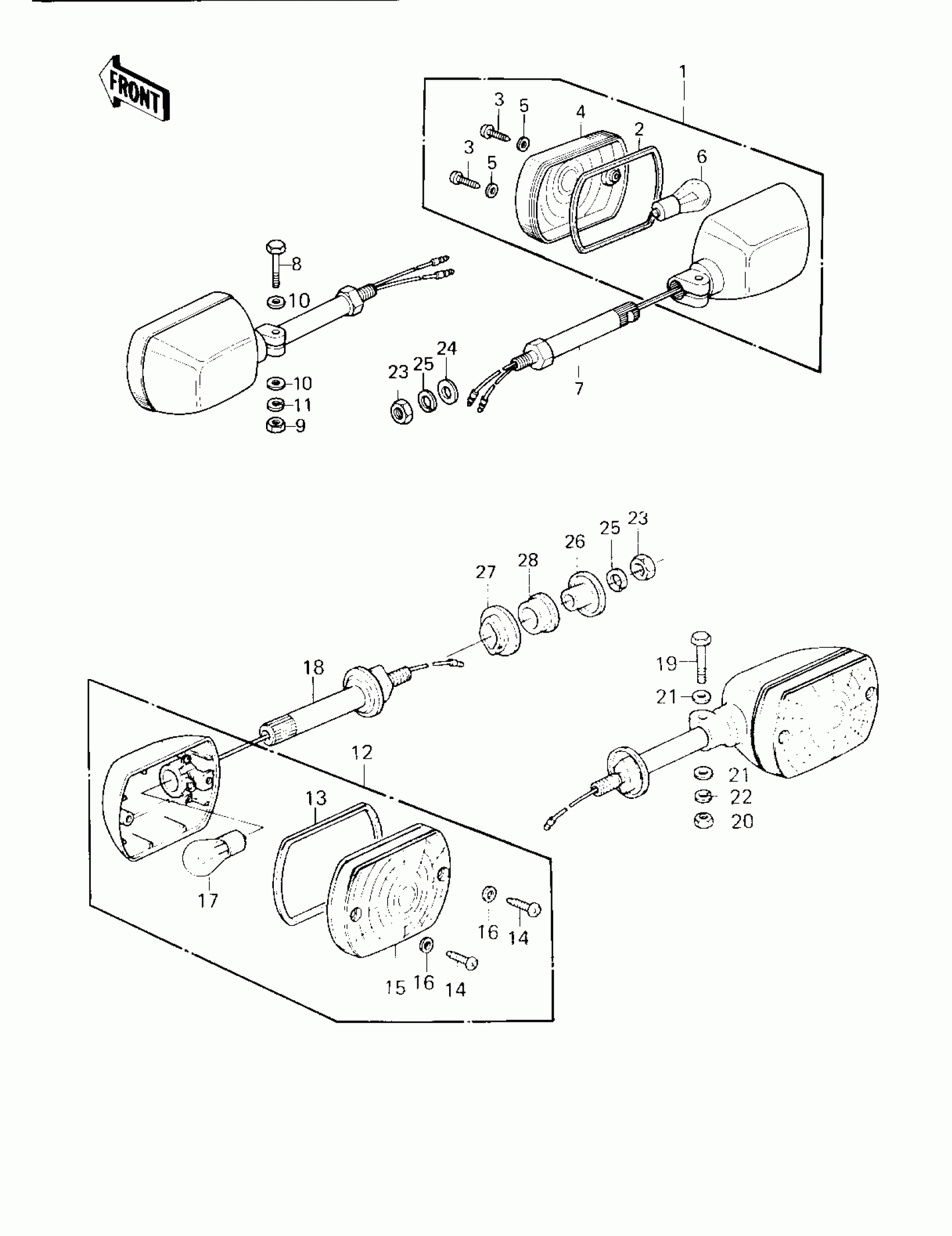

Kawasaki LTD II TURN SIGNALS Diagram

#

Description
Price

1

LAMP ASSY,TURN SIGNAL

23040-1017

Unavailable

2

GASKET,OIL PAN

11060-1057

Unavailable

3

SCREW-PAN-CROS

220E0412

Unavailable

4

LENS-SIGNAL LAMP

23048-1022

$11.00

5

WASHER,PLAIN,4MM

23058-002

$1.77

6

BULB,12V 32/3CP(23/8W)

92069-060

$7.39

7

BRACKET FR SGNL LAMP

23051-1032

Unavailable

8

BOLT-UPSET

112G0630

Unavailable

9

NUT 6MM

311B0600

Unavailable

10

WASHER PLAIN 6MM

411B0600

Unavailable

11

WASHER SPRING 6MM

461F0600

Unavailable

12

LAMP ASSY,TURN SIGNAL

23040-1018

$152.42

13

GASKET,TURN SIGNAL

11009-1052

Unavailable

14

SCREW-PAN-CRSOSS,4X1

220B0412

$0.25

15

LENS-SIGNAL LAMP

23048-1022

$11.00

16

UNAVAILABLE IN PRICE BOOK

23068-002

Unavailable

17

BULB,12V 32CP(23W)

92069-055

$3.95

18

BRACKET-SIGNAL LAMP

23051-1014

$39.78

19

BOLT-UPSET

112G0630

Unavailable

20

NUT 6MM

311B0600

Unavailable

21

WASHER PLAIN 6MM

411B0600

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable

23

NUT-HEX-FINE,10MM

315B1000

Unavailable

24

WASHER-PLAIN,10MM

411D1000

$4.25

25

WASHER SPRING 10MM

461F1000

Unavailable

26

COLLAR

92027-147

$11.53

27

DAMPER,LAMP

92075-128

$4.42

28

DAMPER RUBBER,SIG LM

92075-158

$4.15
