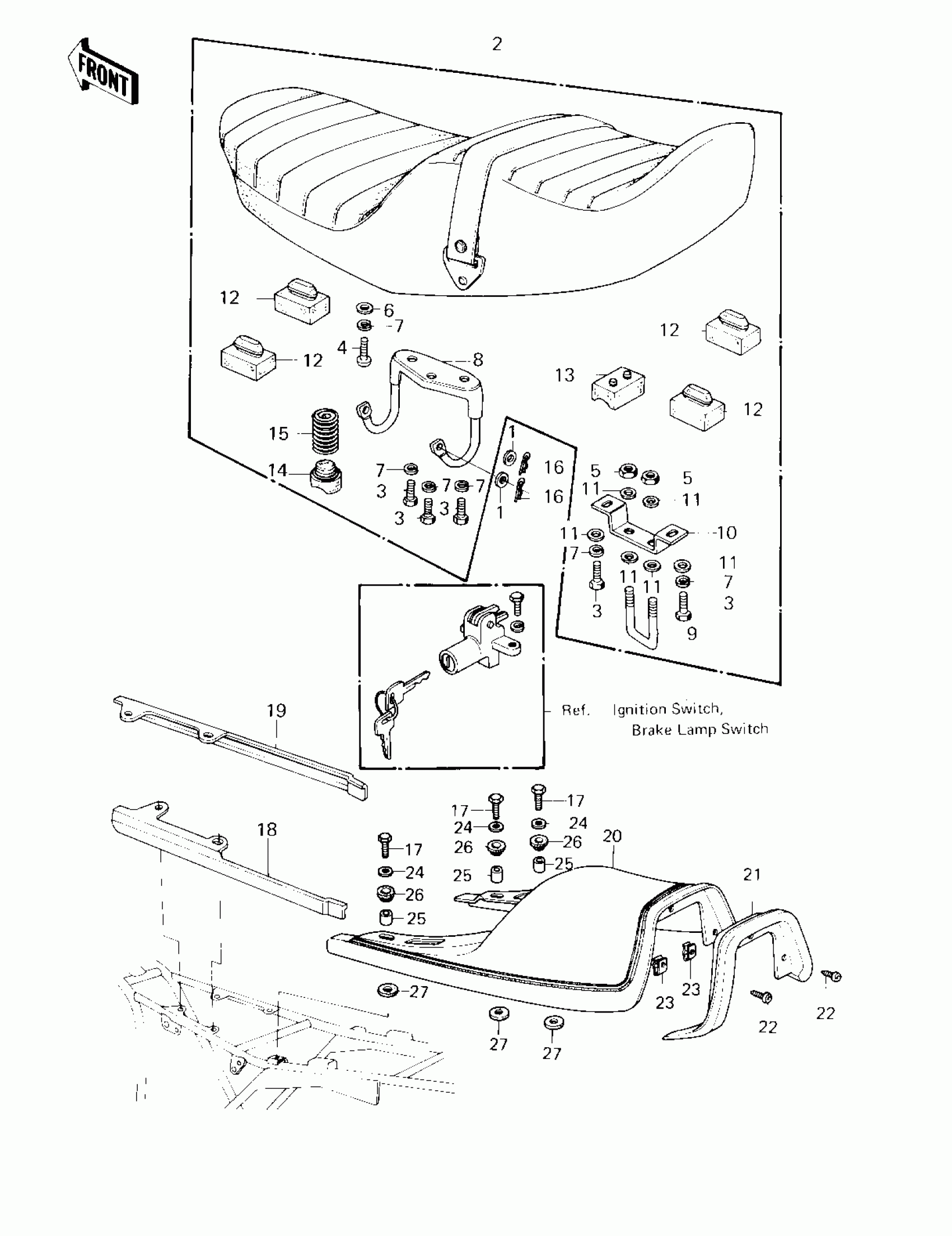

Kawasaki LTD II SEAT/SEAT COVER Diagram

#

Description
Price

1

WASHER PLAIN 8MM

410B0800

Unavailable

2

SEAT-ASSY,DUAL

53001-1063

Unavailable

3

BOLT-UPSET 6X14

112B0614

Unavailable

4

SCREW-PAN-CROS,6X14

220B0614

$1.14

5

NUT 6MM

311B0600

Unavailable

6

WASHER PLAIN 6MM

411B0600

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

HINGE

53009-029

$22.71

9

HOOK,SEAT

53056-002

$15.71

10

BRACKET,SEAT CATCH

53058-002

Unavailable

11

WASHER,6.5X20X1.6

92022-125

$1.08

12

DAMPER

92075-099

$4.18

13

UNAVAILABLE IN PRICE BOOK

92075-13

Unavailable

14

DAMPER RUBBER

92075-276

$5.46

15

SPRING

92081-147

$4.59

16

PIN-SNAP,8MM

554A0800

Unavailable

17

BOLT 6X22

112B0622

Unavailable

18

COVER,FRONT SEAT,L.H

53043-014-D2

$19.27

19

COVER,FRONT SEAT,R.H

53043-015-D2

$19.27

20

COVER,RR SEAT,R.RED

53043-010-D2

$145.83

21

COVER,SEAT

53057-005

Unavailable

22

SCREW,TAPPING,4X14

92008-010

$3.95

23

NUT,SEAT COVER

92018-006

$4.59

24

WASHER,7X24X1.6

92022-228

$2.99

25

COLLAR

92027-241

$4.93

26

RUBBER,FENDER COVER

92075-174

$3.65

27

DAMPER,FEMALE

92075-175

$3.35
