Partiron

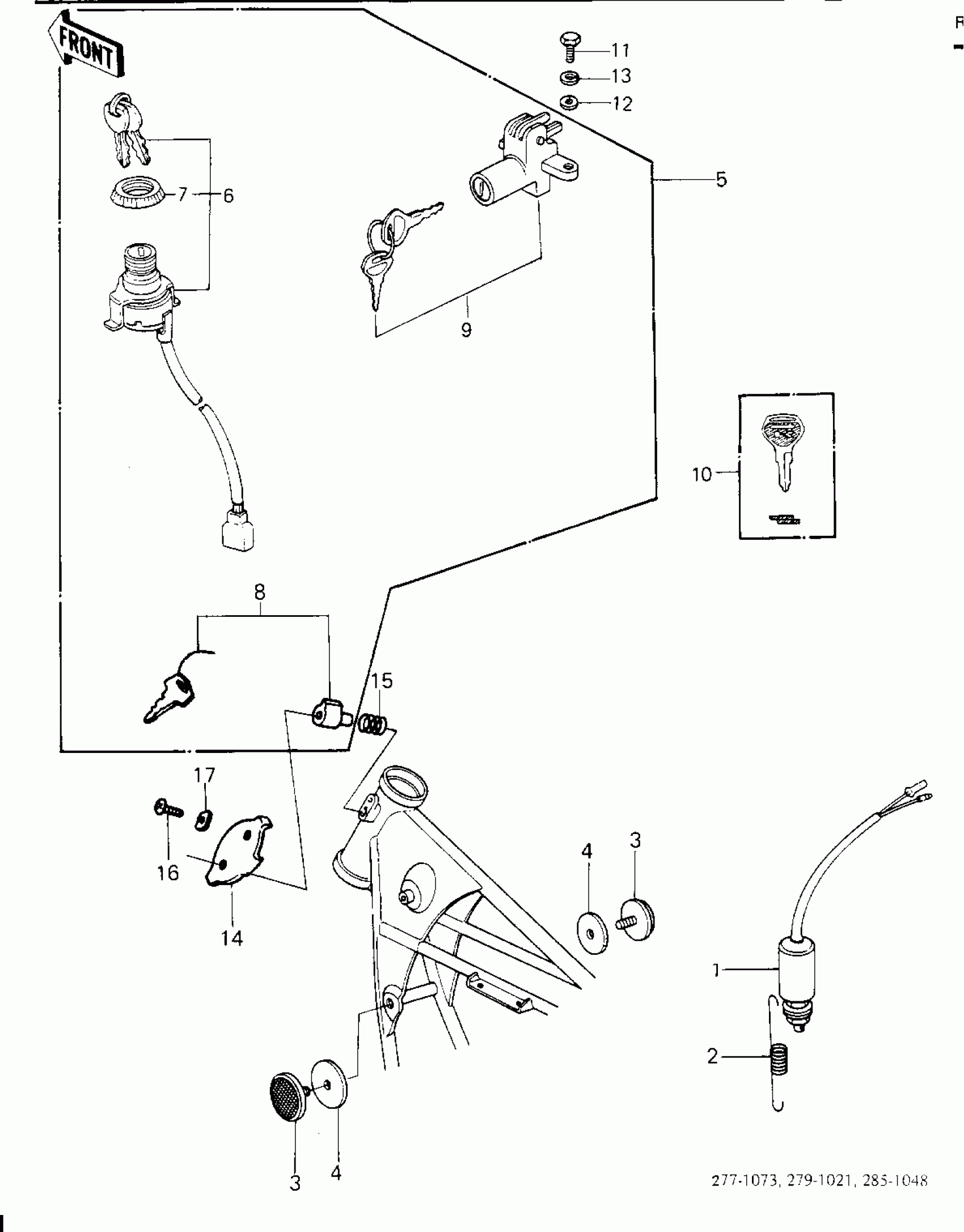

Kawasaki LTD IGNITION SWITCH/LOCKS Diagram

#

Description
Price

1

SWITCH-BRAKE LAMP

27010-017

Unavailable

2

SPRING BRAKE LAMP SW

27011-009

Unavailable

3

REFLECTOR-REFLEX,FR

28012-016

$23.25

4

DAMPER,REFLECTOR

92094-011

$4.60

5

LOCK SET,KZ650B3

27004-5020

$176.68

6

SWITCH ASSY,IGNITION

27005-5007

$129.44

7

NUT,IGNITION SW LOCK

27007-004

Unavailable

8

LOCK-ASSY,STEERING

27016-5009

Unavailable

9

LOCK-ASSY,SEAT

27016-5010

Unavailable

10

KEY-LOCK,BLANK

27008-1103

Unavailable

11

BOLT-UPSET 6X14

112B0614

$1.49

12

WASHER PLAIN 6MM

411B0600

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

CAP,STEERING LOCK

11012-1134

$6.87

15

SPRING,STEERING LOCK

27032-001

$5.25

16

SCREW,3.51MM

92008-007

$4.11

17

WASHER,WAVE

92097-003

$4.50
