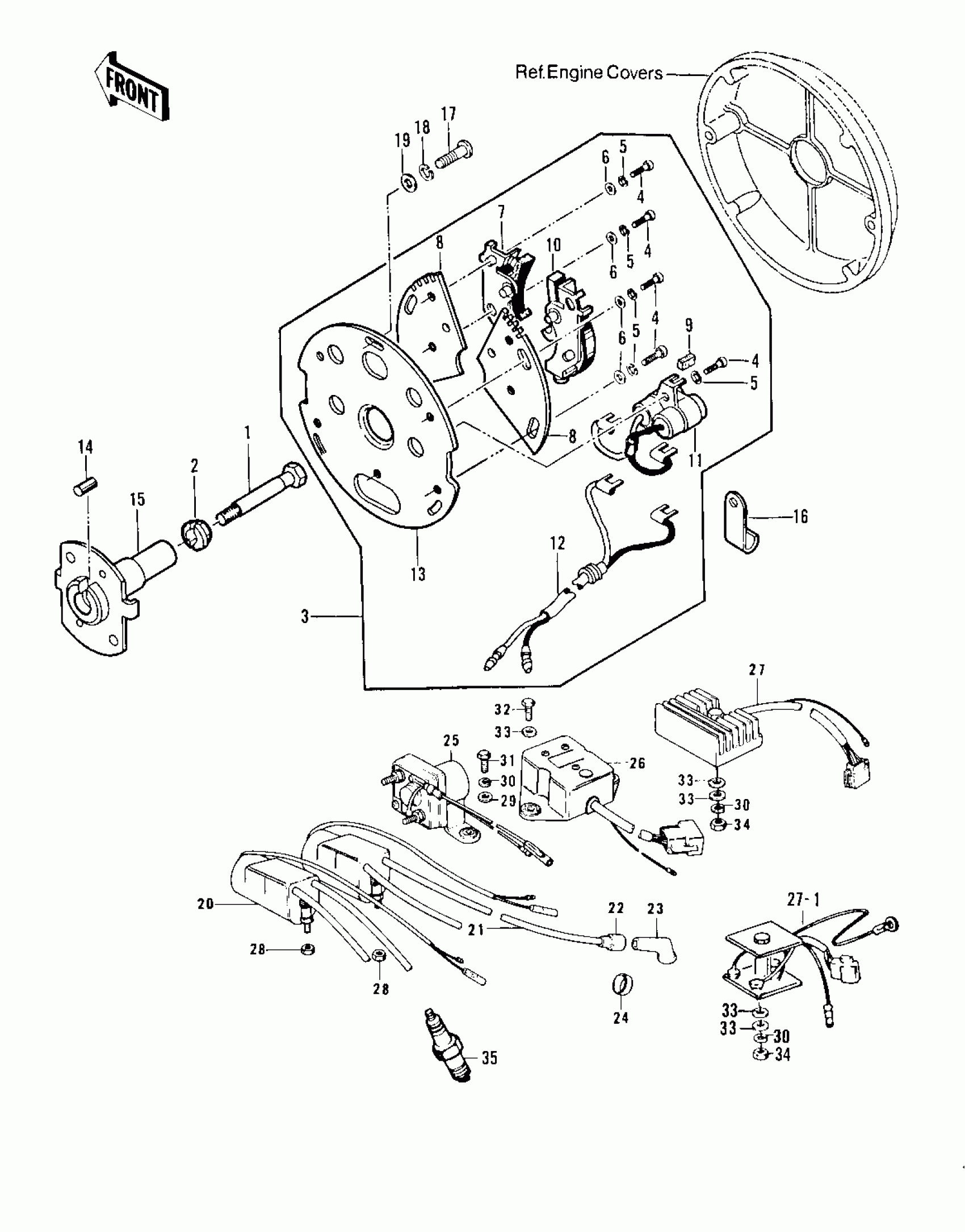

Kawasaki LTD IGNITION/REGULATOR/RECTIFIER Diagram

#

Description
Price

1

BOLT,SPARK ADVANCER

92001-113

Unavailable

2

WASHER,BREAKER GOVERNOR

92022-244

$13.39

3

BREAKER,CONTACT

21135-011

$261.06

4

SCREW PAN HEAD 4X8

220B0408

Unavailable

5

WASHER SPRING 4MM

461F0400

Unavailable

6

WASHER PLAIN 4MM

410B0400

Unavailable

7

BREAKER,CONTACT

21008-028

$69.37

8

PLATE,CONTACT BREAKE

21156-010

Unavailable

9

BRUSH,OIL

21019-005

Unavailable

10

BREAKER,CONTACT

21008-027

$73.02

11

CONDENSER

21013-035

Unavailable

12

WIRING HARNESS,BRAKE

21029-037

Unavailable

13

PLATE,CONTACT BREAKE

21021-004

$22.71

14

PIN-DOWEL,4X8

551A0408

$0.68

15

ADVANCER,SPARK

21148-010

$309.20

16

CLAMP,WIRING HARNESS

21126-008

$3.60

17

SCREW-PAN-CROS

220B0512

$0.47

18

WASHER SPRING 5MM

461F0500

Unavailable

19

WASHER-PLAIN,5MM

411B0500

Unavailable

20

IGNITION COIL

21121-1003

Unavailable

20

IGNITION COIL

21121-1003

Unavailable

21

COIL,IGNITION(W/CAP)

21171-1019

$376.61

21

COIL,IGNITION,#2&3

21121-1004

Unavailable

21

COIL,IGNITION(W/CAP)

21171-1019

Unavailable

22

GROMMET,HIGH TENSION

21131-005

$4.64

23

CAP SPARK PLUG

21160-1014

Unavailable

24

GROMMET,PLUG CAP

21131-006

$6.50

25

SWITCH ASSY,MAGNETIC

27010-1023

Unavailable

25

SWITCH ASSY,MAGNETIC

27010-1023

Unavailable

26

REGULATOR

21066-025

Unavailable

27

SET,RECTIFIER

99996-1159

$407.23

27-1

SET,RECTIFIER

99996-1159

$407.23

28

NUT,LOCK 6MM

92017-014

$5.74

29

WASHER,6.5X20X1.6

92022-125

$1.08

30

WASHER SPRING 6MM

461F0600

Unavailable

31

BOLT-UPSET,6X16

112G0616

Unavailable

32

BOLT-UPSET 6X14

112B0614

Unavailable

33

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

34

NUT 6MM

311B0600

Unavailable

35

SPARK PLUG B8ES

B8ES

$2.80
