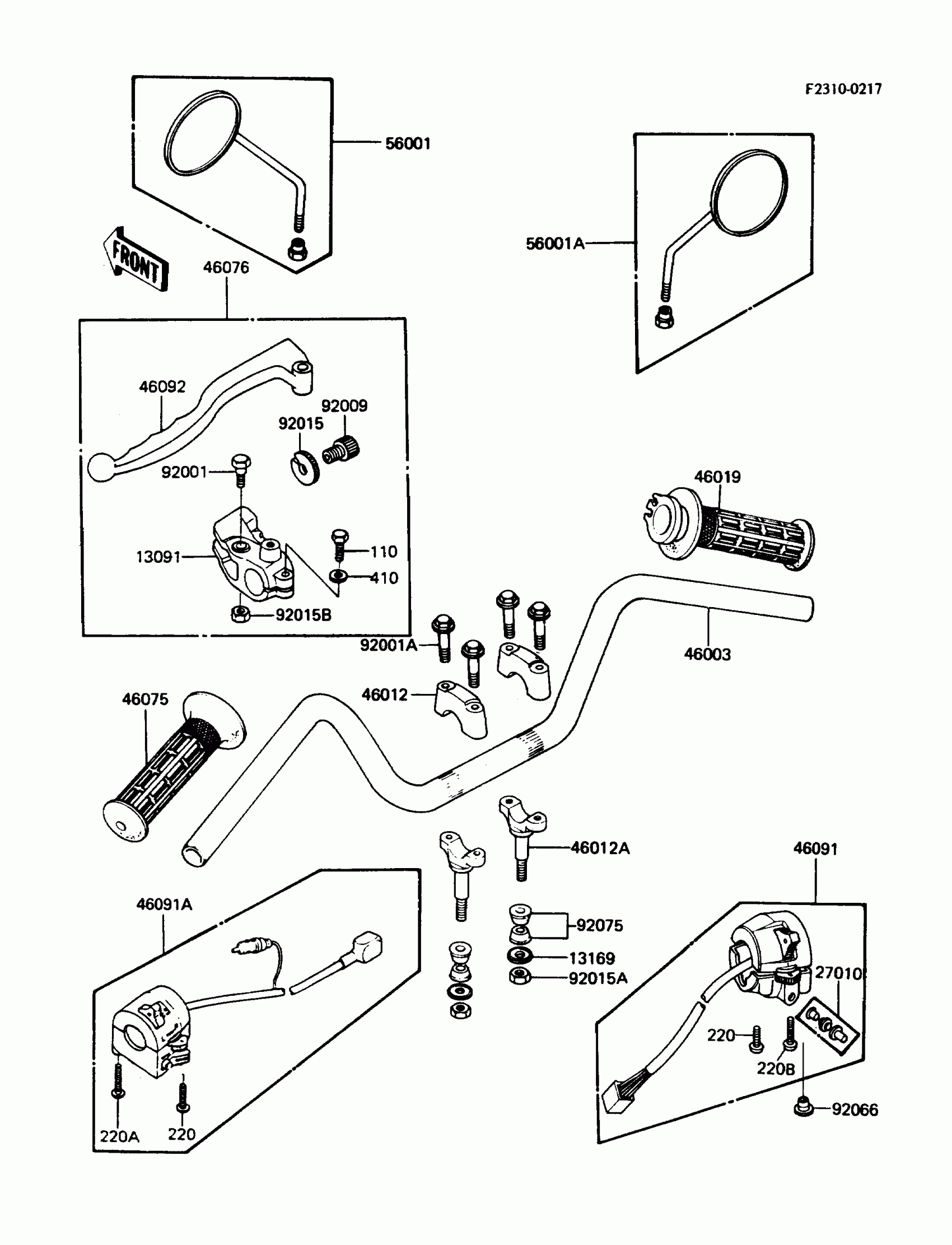

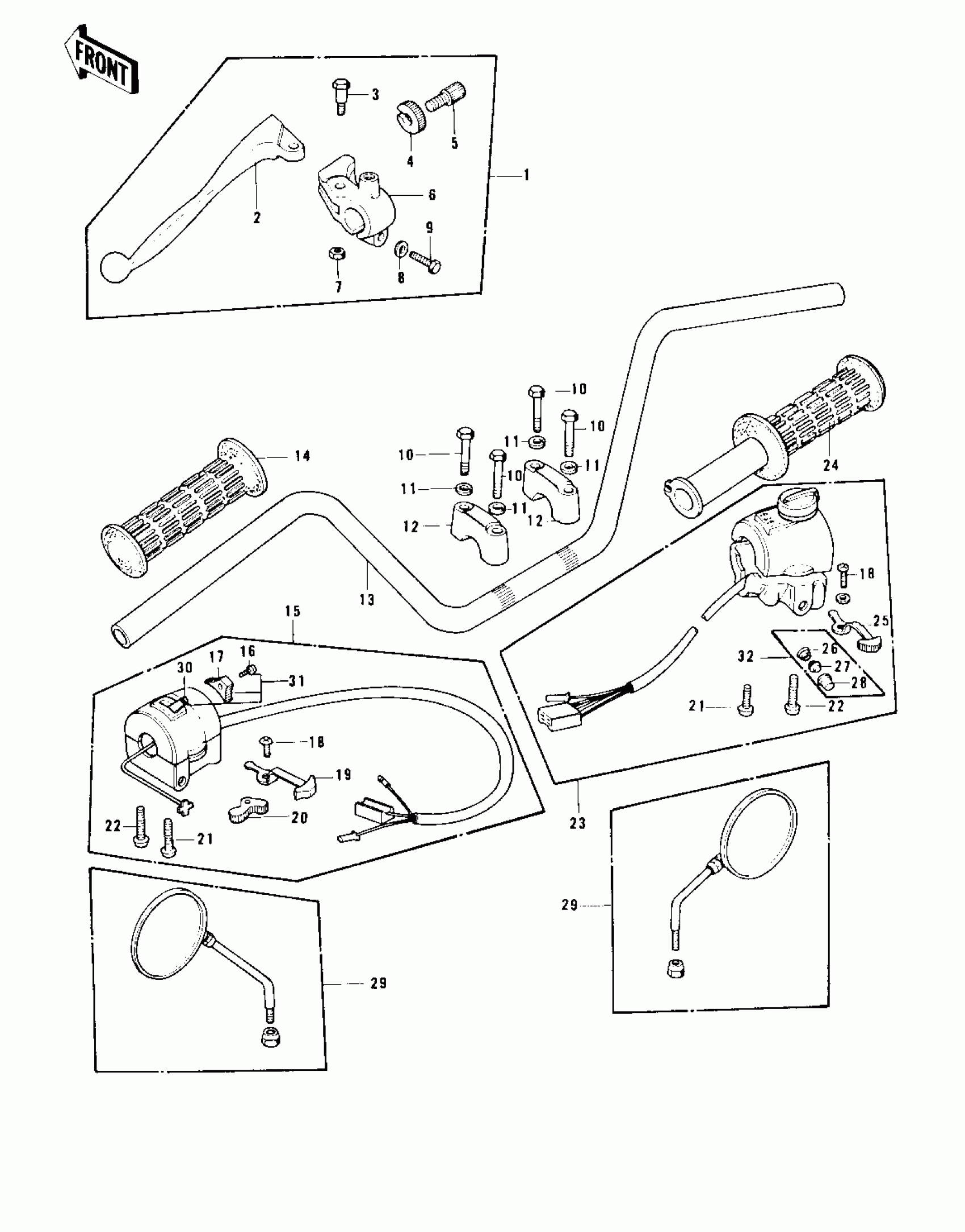

Kawasaki LTD HANDLEBAR Diagram

#

Description
Price

1

LEVER ASSY,CLUTCH

46076-049

$104.73

2

LEVER-GRIP,CLUTCH

46092-023

$36.65

3

BOLT,HEX HEAD

92007-047

Unavailable

4

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

5

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

6

HOLDER,CLUTCH LEVER

46094-017

Unavailable

7

NUT,LOCK 6MM

92017-014

$5.74

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

BOLT 6X22

112B0622

Unavailable

10

BOLT 8X38

92001-1405

$12.52

11

WASHER SPRING 8MM

461F0800

Unavailable

12

HOLDER-HANDLE,UPP

46012-008

$33.69

13

HANDLEBAR

46003-037

Unavailable

14

RUBBER,L.H GRIP

46075-028

$40.75

15

HOUSING ASSY,CONT,L.H

46091-1079

Unavailable

15

HOUSING ASSY,CONT,L.H

46091-1079

Unavailable

16

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

17

KNOB,LIGHTING SW L.H

46044-013

$11.83

18

SCREW PAN HEAD 3X5

220B0305A

$0.54

19

KNOB,LIGHTING SW L.H

46043-005

Unavailable

20

BUTTON, HORN PUSH

46028-006

Unavailable

21

SCREW PAN HEAD 5X30

220B0530

Unavailable

22

SCREW-PAN-CROS

220B0535

$2.80

23

HOUSING ASSY,R.H CONT

46091-1033

Unavailable

23

HOUSING ASSY,R.H CONT

46091-1033

Unavailable

23

HOUSING ASSY,R.H

46091-1039

Unavailable

24

GRIP ASSY,THROTTLE

46019-038

Unavailable

25

KNOB,LIGHTING SW R.H

46043-004

Unavailable

26

SWITCH,PUSH BUTTON

27010-1009

$7.01

27

SWITCH,PUSH BUTTON

27010-1009

$7.01

28

SWITCH,PUSH BUTTON

27010-1009

$7.01

29

MIRROR-ASSY,LH&RH

56001-5008

Unavailable

30

SWITCH,L.H

46089-014

Unavailable

31

L.H GRIP SWITCH KIT

99990-530

Unavailable

32

SWITCH,PUSH BUTTON

27010-1009

Unavailable
