Description

Price

1

SWITCH,NEUTRAL

13151-5002

Unavailable

2

CAM-CHANGE DRUM

13145-1058

$22.71

3

DRUM-ASSY-CHANGE

13239-1069

Unavailable

4

HOLDER,CHANGE DRUM PIN

13091-1104

$24.63

5

SCREW-CSK-CROS,6X20

221B0620

$1.98

6

PIN,DOWEL,4X15.8

92042-014

$0.49

7

PIN,DOWEL,4X13.8

92042-030

$3.12

8

CIRCLIP-TYPE-C,30MM

480J3000

$4.93

9

ROLLER,4X6

610A0406

$3.43

10

RING-SNAP,37MM

92033-035

$7.44

11

BEARING-NEEDLE,37BTM4312

92046-051

$23.59

12

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$120.23

13

FORK-SHIFT,4TH&TOP

13140-1009

$120.23

14

ROD-SHIFT

49047-5003

$22.90

15

CIRCLIP-TYPE-C,12MM

480J1200

$0.67

16

PIN-COTTER,3.0X20

550D3020

$1.53

17

PIN,DOWEL,8X18

92042-021

$9.12

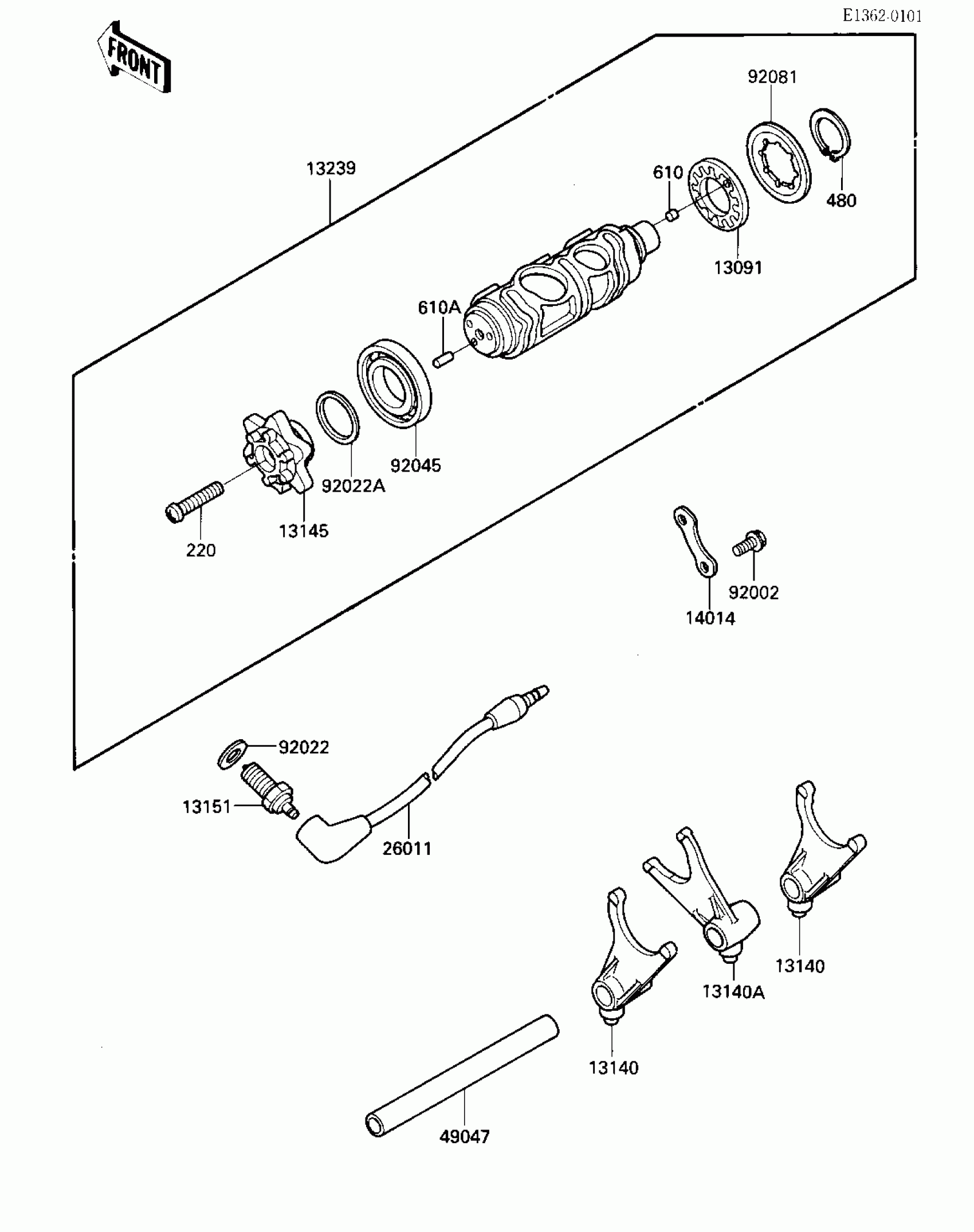

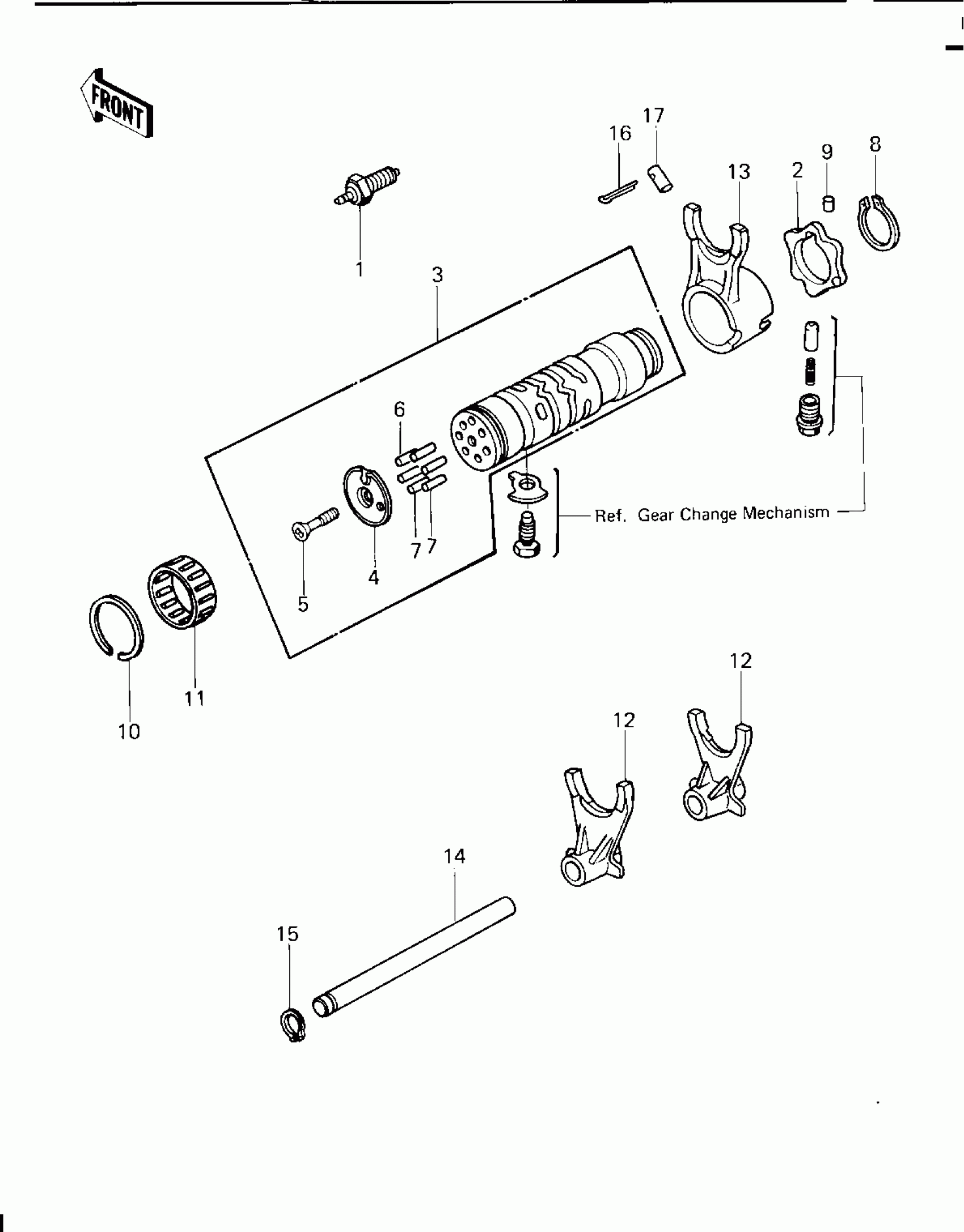

Kawasaki LTD GEAR CHANGE DRUM & FORKS Diagram

SWITCH,NEUTRAL

DRUM-ASSY-CHANGE
