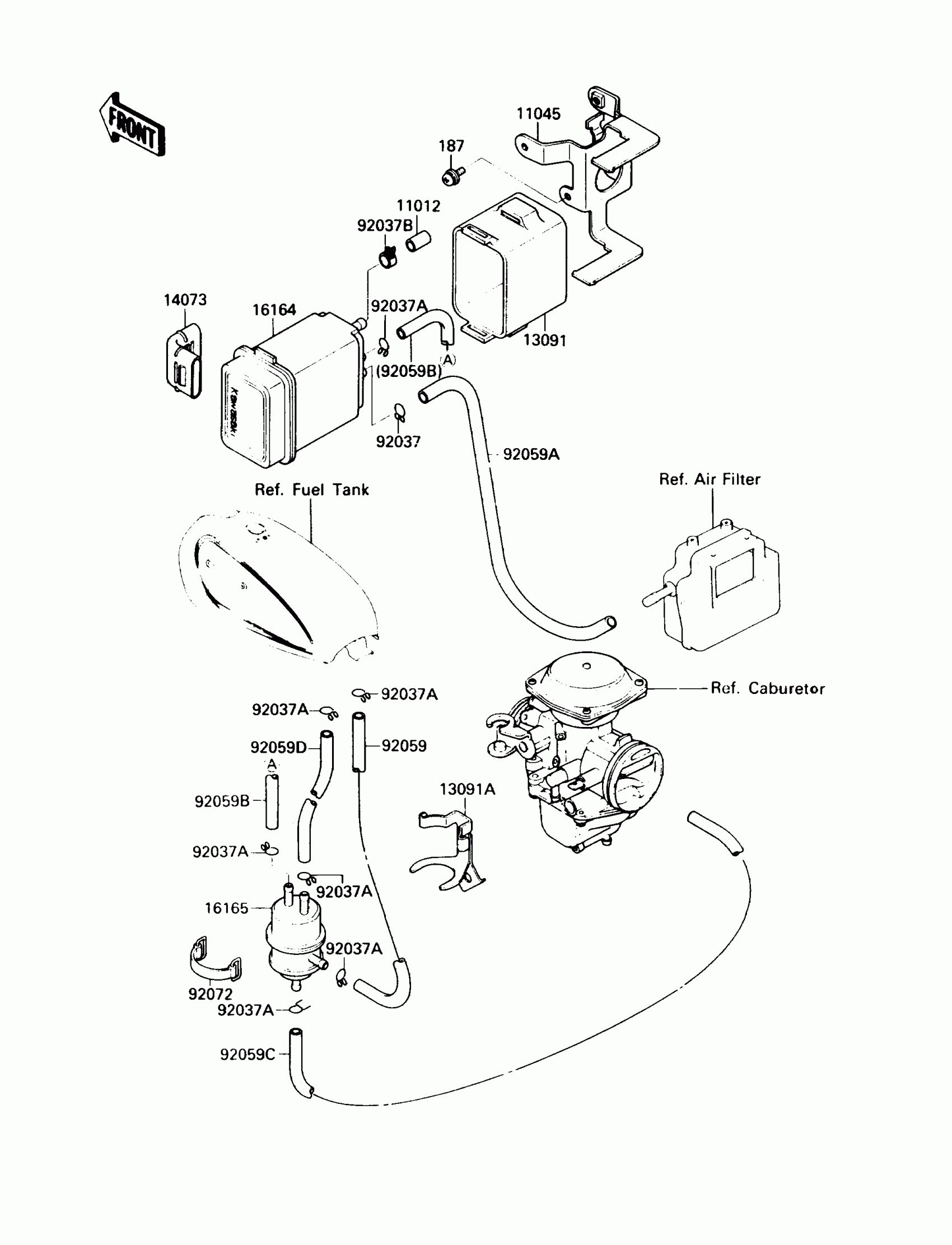

Kawasaki LTD Fuel Evaporative System Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

11045

BRACKET,CANISTER

11045-1565

Unavailable

13091

HOLDER,CANISTER

13091-1176

$76.38

13091A

HOLDER,SEPARATOR

13091-1479

Unavailable

14073

DUCT,CANISTER

14073-1178

$21.14

16164

CANISTER

16164-1001

$148.49

16165

SEPARATOR

16165-1001

$79.83

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP,CANISTER

92037-1512

$5.71

92059

TUBE,5X10X350,RED

92059-1764

$32.75

92059A

TUBE,7X12X770,GREEN

92059-1802

$34.92

92059B

TUBE,5X10X610,BLUE

92059-1808

$32.75

92059C

TUBE,5X10X410

92059-1816

$13.51

92059D

TUBE,5X10X400,BLUE

92059-1829

$32.75

92072

BAND,L=50

92072-066

$12.21

187

BOLT-UPSET-WSP

187J0512

$1.98
