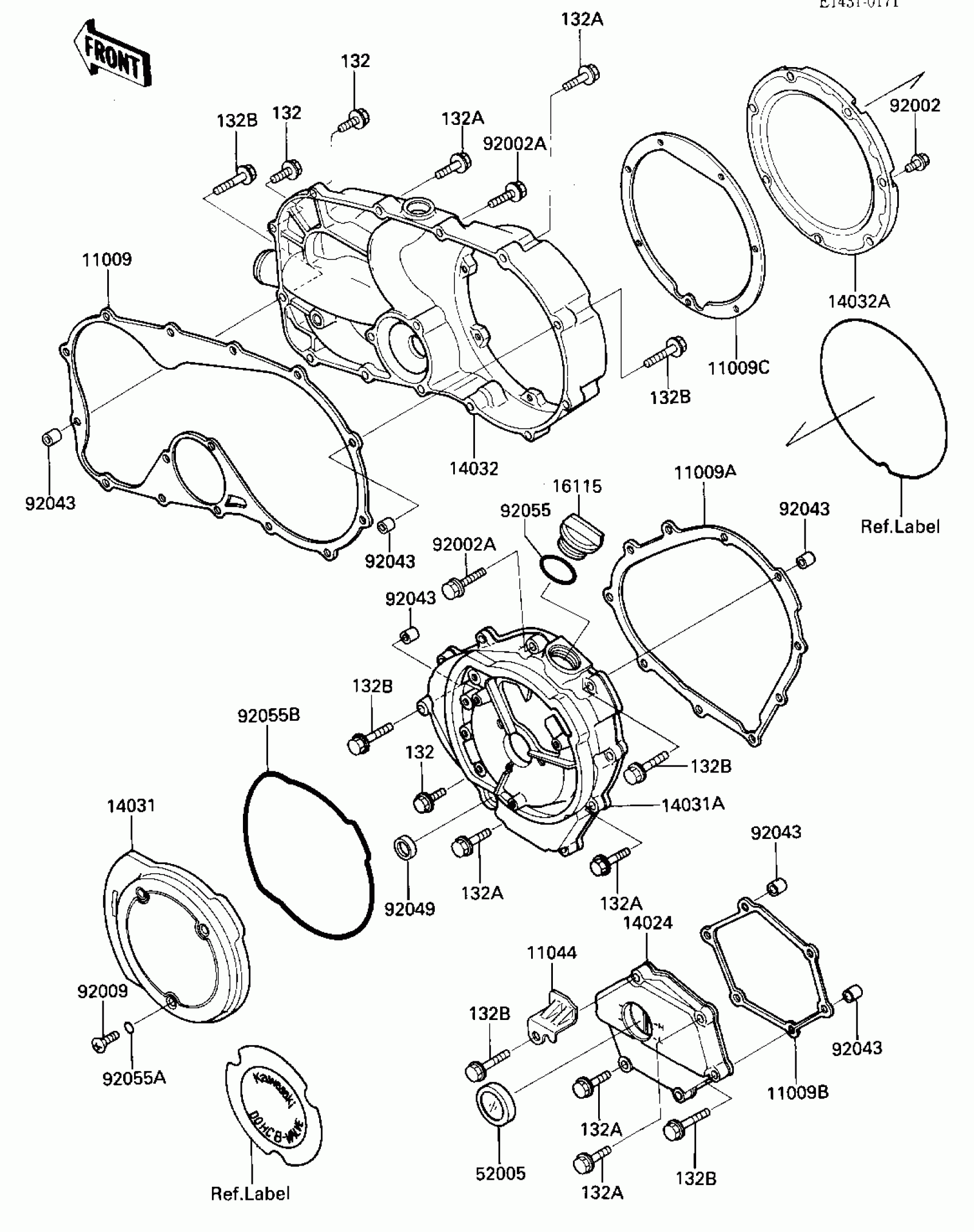

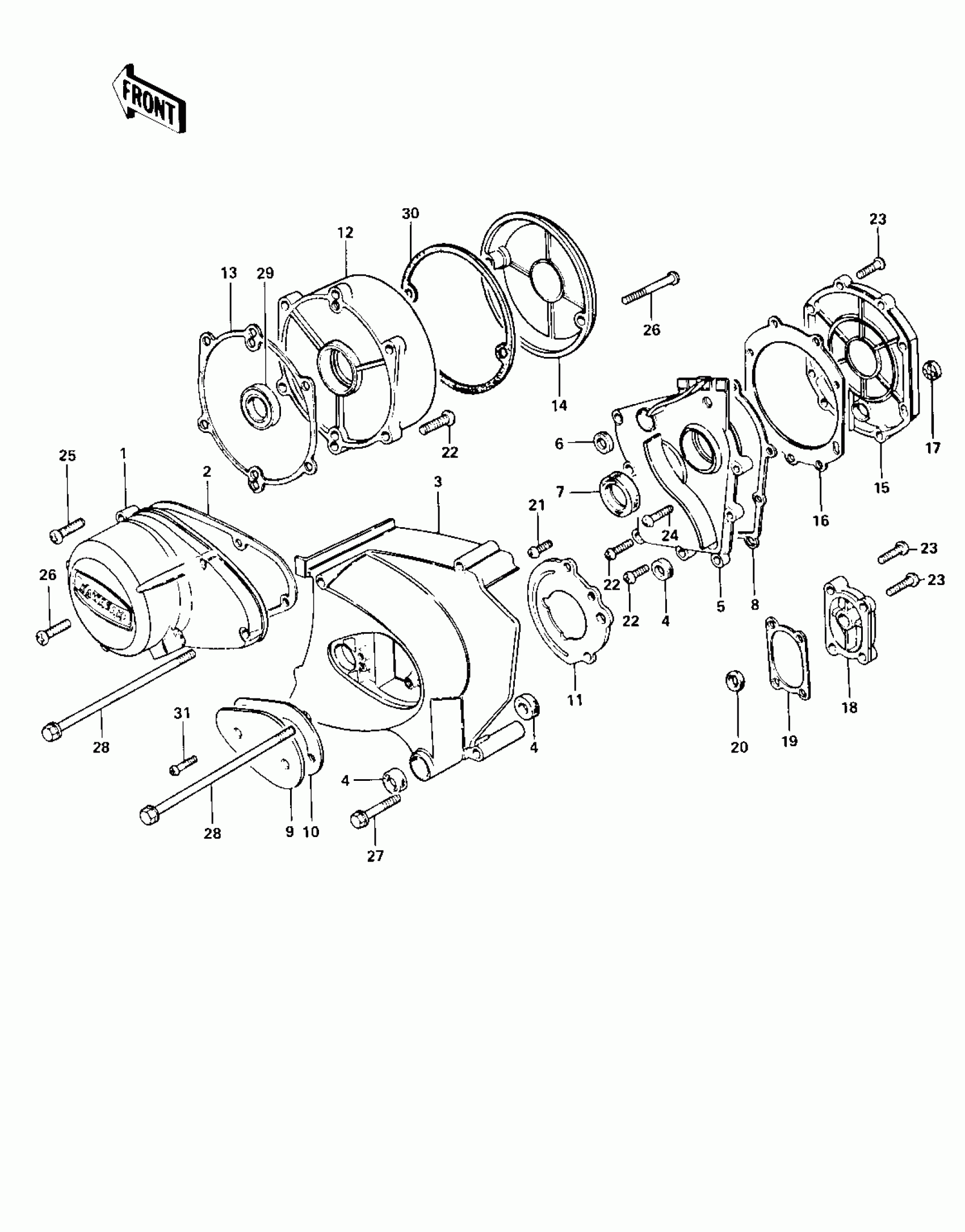

Kawasaki LTD ENGINE COVERS Diagram

#

Description
Price

1

COVER,L.H ENGINE

14031-1020

Unavailable

1

COVER,L.H ENGINE

14031-1020

Unavailable

2

GASKET,GENERATOR COVER

11060-1075

Unavailable

3

COVER,FRONT CHAIN

14026-026

Unavailable

4

SEAL-OIL,SB12205

92049-004

$7.63

5

COVER,TRANSMISSION

14025-1106

Unavailable

6

OIL SEAL,TC7187

92050-048

$24.03

7

SEAL-OIL,SC325210

92050-024

$6.23

8

GASKET,MISSION COVER

14058-004

$38.12

9

COVER,OIL PUMP

14026-012

Unavailable

10

GASKET,OIL PUMP,COVER

14045-015

Unavailable

11

COVER,ENGINE SPROCKET

14024-008

Unavailable

12

COVER,R.H ENGINE

14032-083

Unavailable

13

GASKET,RH ENGINE COVER

11060-1071

Unavailable

14

COVER,BREAKER POINT

14027-023-80

$184.09

15

COVER,CLUTCH

14032-121

Unavailable

16

GASKET,CLUTCH

14046-024

$47.40

17

GAUGE,OIL LEVEL

52015-004

$46.53

18

COVER,KICK SHAFT,BAR

14032-075-2H

Unavailable

19

GASKET,KICK COVER

14046-025

$10.54

20

SEAL-OIL,SC22325

92049-1048

$6.75

21

SCREW PAN HEAD 6X12

220B0612

Unavailable

22

SCREW PAN HEAD 6X22

220B0622

Unavailable

23

SCREW PAN HEAD 6X25

220B0625

Unavailable

24

SCREW PAN HEAD 6X28

220B0628

Unavailable

25

SCREW PAN HEAD 6X30

220B0630

Unavailable

26

SCREW PAN HEAD 6X40

220B0640

Unavailable

27

BOLT,6X70

110G0670

Unavailable

28

BOLT-UPSET,6X125

112G06125

Unavailable

29

OIL SEAL,S25407R

92050-047

$35.10

30

GASKET,POINT CAP

14050-006

$25.15

31

SCREW PAN HEAD 6X12

220B0612

Unavailable
